Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

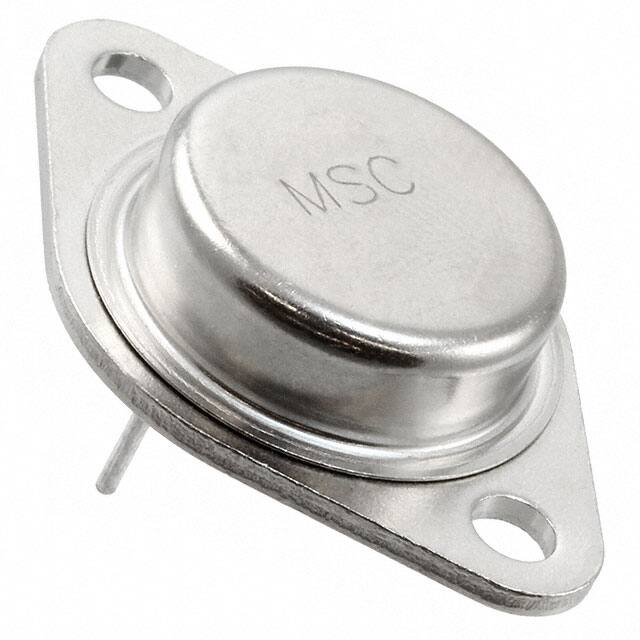

UES2602DIODE GEN PURP 100V 30A TO204AA |
5,247 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Discontinued at Digi-Key | Standard | 100 V | 30A | 930 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 20 µA @ 100 V | - | - | - | Through Hole | TO-204AA (TO-3) | -55°C ~ 175°C |
|
UES2601DIODE GEN PURP 50V 30A TO204AD |
7,996 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Standard | 50 V | 30A | 930 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 20 µA @ 50 V | - | - | - | Through Hole | TO-204AA (TO-3) | -55°C ~ 175°C |
|
|
UES2604DIODE GEN PURP 200V 30A TO204AD |
6,238 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Standard | 200 V | 30A | 1.25 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 50 µA @ 200 V | - | - | - | Through Hole | TO-204AA (TO-3) | -55°C ~ 150°C |
|
|
UES2603DIODE GEN PURP 150V 30A TO204AD |
5,294 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Standard | 150 V | 30A | 930 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 20 µA @ 150 V | - | - | - | Through Hole | TO-204AA (TO-3) | -55°C ~ 175°C |
|
|
1N5811U4DIODE GEN PURP 150V 6A U4 |
2,453 |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | Standard | 150 V | 6A | 925 mV @ 6 A | Standard Recovery >500ns, > 200mA (Io) | 525 µs | 5 µA @ 150 V | - | - | - | Surface Mount | U4 | -65°C ~ 175°C |
|
JANS1N6639DIODE GEN PURP 75V 300MA DO35 |
7,666 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 100 nA @ 75 V | - | Military | MIL-PRF-19500/609 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
JANS1N6641DIODE GEN PURP 100V 300MA DO35 |
4,971 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 100 V | 300mA | 1.1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 100 nA @ 50 V | - | Military | MIL-PRF-19500/609 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANS1N6640/TRDIODE GEN PURP 50V 300MA |
7,857 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 50 V | 300mA | 1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 100 nA @ 50 V | - | Military | MIL-PRF-19500/609 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
JANS1N6638/TRDIODE GP REV 150V 300MA DO35 |
6,374 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard, Reverse Polarity | 150 V | 300mA | 1.1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4.5 ns | 500 nA @ 125 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Through Hole | DO-204AH (DO-35) | -65°C ~ 200°C |
|
|
JANTXV1N1202ARDIODE GP REV 200V 12A DO203AA |
6,298 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 12A | 1.35 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 200 V | - | Military | MIL-PRF-19500/260 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
