Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N1204ADIODE GEN PURP 400V 12A DO203AA |
6,603 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 12A | 1.35 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 400 V | - | Military | MIL-PRF-19500/260 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|

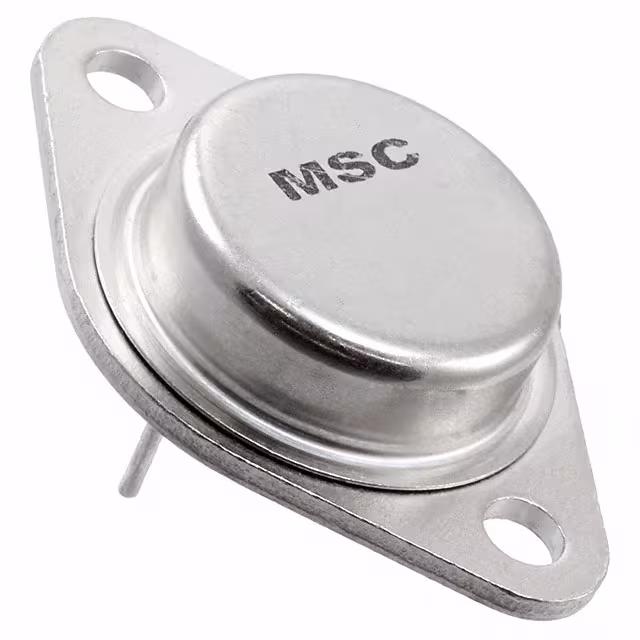

UFT3140CDIODE GEN PURP 400V 30A TO204AA |
8,769 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Discontinued at Digi-Key | Standard | 400 V | 30A | 1.1 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 15 mA @ 400 V | - | - | - | Chassis Mount | TO-204AA (TO-3) | -65°C ~ 175°C |
|
|
UFT3130CDIODE GEN PURP 300V 30A TO204AA |
9,099 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Standard | 300 V | 30A | 1.1 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 15 µA @ 300 V | 115pF @ 10V, 1MHz | - | - | Through Hole | TO-204AA (TO-3) | -65°C ~ 175°C |
|
|
JANTX1N1188DIODE GEN PURP REV 400V 35A DO5 |
9,188 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 35A | 1.4 V @ 110 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 400 V | - | Military | MIL-PRF-19500/297 | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 175°C |
|
|
JANS1N5621DIODE GEN PURP 800V 1A A AXIAL |
8,319 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 800 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | - | - | Military | MIL-PRF-19500/429 | Through Hole | A, Axial | -65°C ~ 200°C |
|
|
JANS1N5622DIODE GEN PURP 1A A AXIAL |
6,650 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | - | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 1000 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
JANS1N5622/TRDIODE GEN PURP 1A A AXIAL |
6,292 |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | - | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 1000 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
|
30FQ045DIODE SCHOTTKY 45V 30A DO4 |
9,512 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 45 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
|
|
30FQ040DIODE SCHOTTKY 40V 30A DO4 |
2,682 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 40 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 40 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
|
|
30FQ035DIODE SCHOTTKY 35V 30A DO4 |
6,874 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 35 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 35 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
