Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S4340TSDIODE GEN PURP 400V 150A DO205AA |
2,615 |
|
Datasheet | - | DO-205AA, DO-8, Stud | Tray | Active | Standard | 400 V | 150A | 1.1 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 400 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -65°C ~ 200°C |
|
|
UES706E3DIODE GEN PURP 400V 20A DO203AA |
6,715 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 20A | 1.25 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 50 µA @ 400 V | - | - | - | Stud Mount | DO-203AA (DO-4) | -55°C ~ 150°C |
|
|
S4220DIODE GEN PURP 200V 125A DO205AA |
7,728 |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 200 V | 125A | 1.2 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 200 V | - | - | - | Stud Mount | DO-205AA (DO-8) | -65°C ~ 200°C |
|

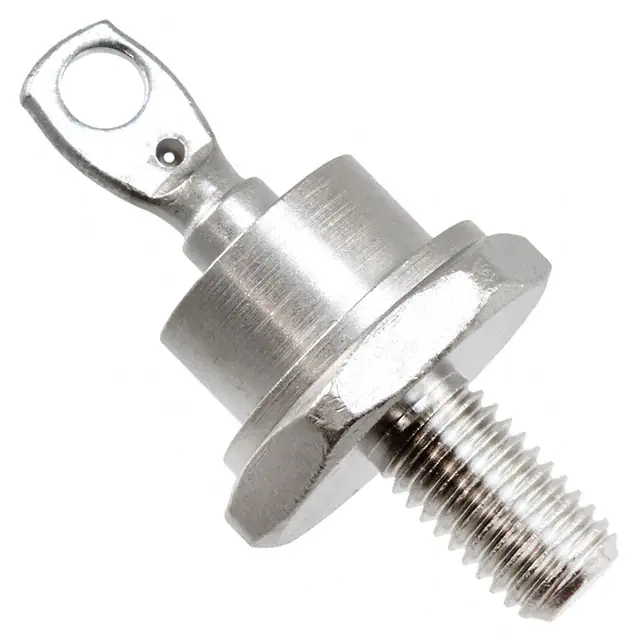

JAN1N1188DIODE GEN PURP 400V 35A DO5 |
3,026 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 35A | 1.4 V @ 110 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 400 V | - | Military | MIL-PRF-19500/297 | Stud Mount | DO-5 | -65°C ~ 175°C |
|
|
JAN1N1614DIODE GP REV 200V 16A DO203AA |
9,218 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 16A | 1.3 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 200 V | - | Military | MIL-PRF-19500/260 | Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|
UES706DIODE GEN PURP 400V 20A DO4 |
3,015 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 400 V | 20A | 1.25 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 50 µA @ 400 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
|
1N2287RDIODE GEN PURP REV 1KV 40A DO5 |
9,421 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 40A | 1.19 V @ 90 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 200°C |
|
|
1N2287DIODE GEN PURP 1KV 40A DO5 |
4,060 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 40A | 1.19 V @ 90 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | - | - | - | Stud Mount | DO-5 (DO-203AB) | -65°C ~ 200°C |
|
1N1201ADIODE GEN PURP 150V 12A DO203AA |
6,039 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 150 V | 12A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|
1N1202ADIODE GEN PURP 200V 12A DO203AA |
8,017 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 200 V | 12A | 1.35 V @ 38 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 200 V | - | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
