Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N4458RDIODE GP REV 800V 15A DO203AA |
5,105 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 15A | 1.5 V @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 800 V | - | Military | MIL-PRF-19500/162 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
JAN1N4459RDIODE GP REV 1KV 15A DO203AA |
7,361 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 15A | 1.5 V @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 µA @ 1000 V | - | Military | MIL-PRF-19500/162 | Chassis, Stud Mount | DO-203AA (DO-4) | -65°C ~ 175°C |
|
|
JANTXV1N6081DIODE GEN PURP 150V 2A G AXIAL |
3,490 |
|
Datasheet | - | G, Axial | Bulk | Discontinued at Digi-Key | Standard | 150 V | 2A | 1.5 V @ 37.7 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 1 µA @ 150 V | - | Military | MIL-PRF-19500/503 | Through Hole | G, Axial | -65°C ~ 155°C |
|
|
JANTX1N485B/TRDIODE GEN PURP 180V 200MA DO7 |
9,369 |
|
Datasheet | - | DO-204AA, DO-7, Axial | Tape & Reel (TR) | Active | Standard | 180 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 180 V | - | Military | MIL-PRF-19500/118 | Through Hole | DO-7 | -65°C ~ 200°C |
|
|
JANS1N5618DIODE GEN PURP 600V 1A A AXIAL |
5,763 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 600 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 600 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|

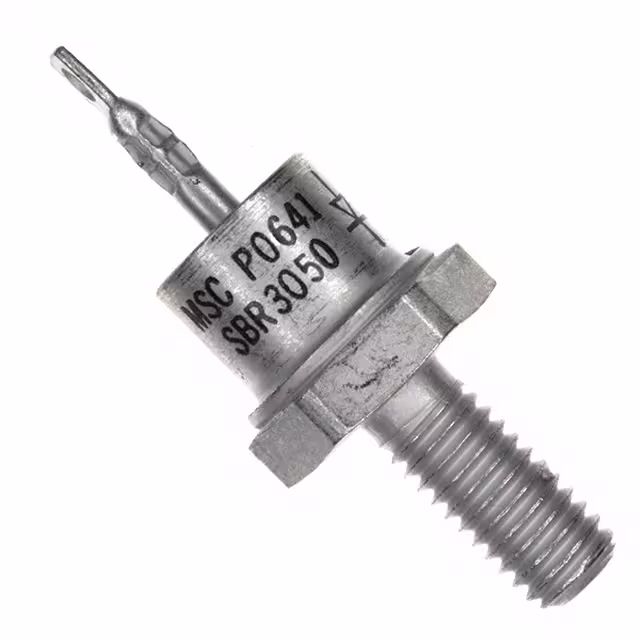

SBR3050DIODE SCHOTTKY 50V 30A DO203AA |
2,664 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 50 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 50 V | - | - | - | Chassis, Stud Mount | DO-203AA | - |
|
|
SBR3040RECTIFIER |
6,790 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 40 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 40 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
|
|
SBR3045RECTIFIER |
7,958 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 45 V | 30A | 630 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
|
|
SBR3060RECTIFIER |
9,418 |
|
Datasheet | SBR306 | DO-203AA, DO-4, Stud | Bulk | Active | Schottky | 60 V | 30A | 680 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 60 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -55°C ~ 175°C |
|
|
SBR3550POWER SCHOTTKY |
5,218 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
