Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTXV1N5802US/TRDIODE GEN PURP 50V 1A D-5A |
4,810 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 50 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | D-5A | -65°C ~ 175°C |
|
JANTXV1N5553/TRDIODE GEN PURP 800V 5A |
4,014 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANTXV1N5623US/TRDIODE GEN PURP 1KV 1A D-5A |
5,834 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 500 nA @ 1 V | 15pF @ 12V, 1MHz | Military | MIL-PRF-19500/429 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
JANTX1N6625US/TRDIODE GEN PURP 1.1KV 1A D-5A |
2,209 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 500 nA @ 1100 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JANTX1N6625U/TRDIODE GP 1.1KV 1A A SQ-MELF |
9,328 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 1 µA @ 1100 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
|

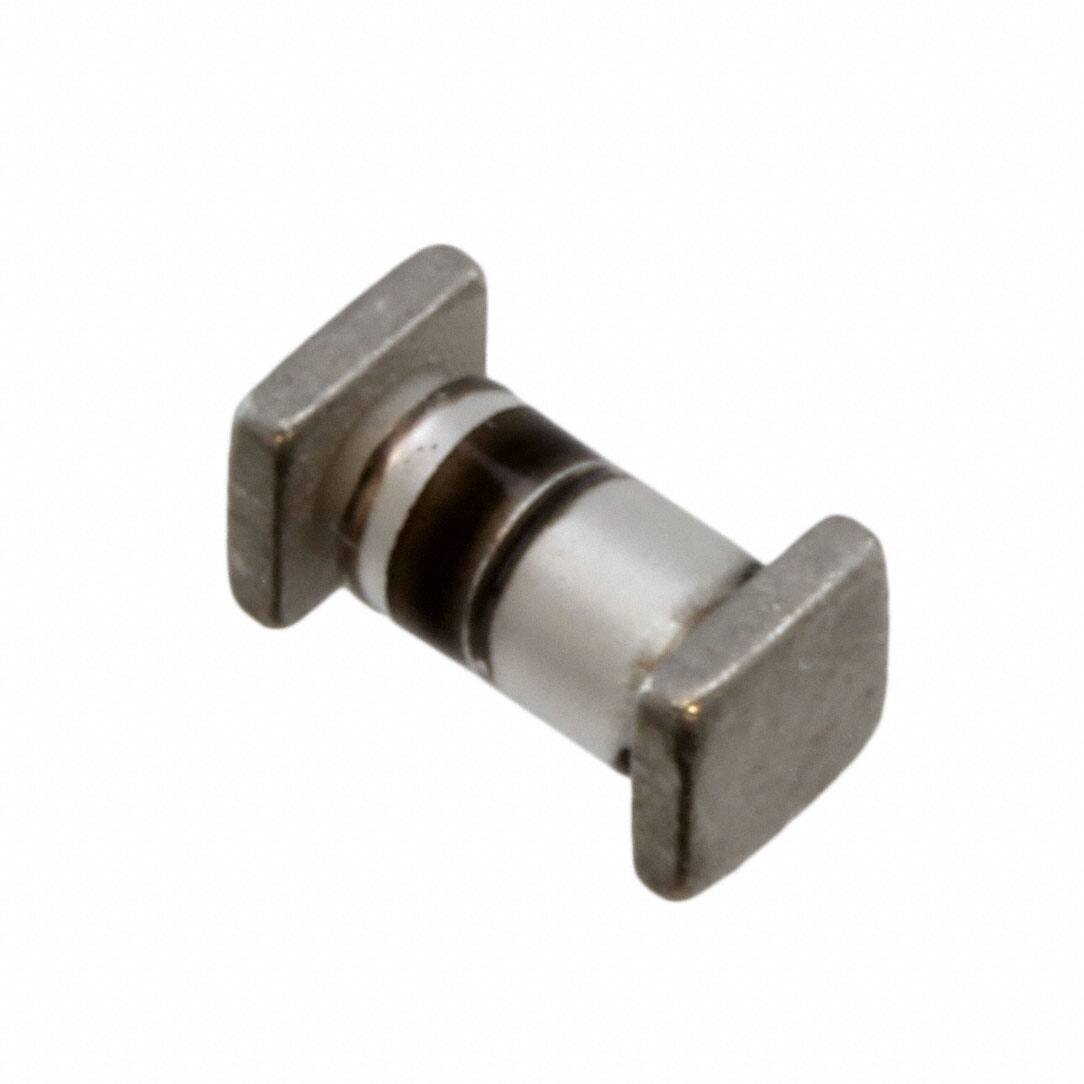

JAN1N6620USDIODE GEN PURP 220V 2A D-5A |
6,011 |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 220 V | 2A | 1.6 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 220 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JAN1N6620UDIODE GEN PURP 200V 1.2A D-5A |
8,071 |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
JANTX1N5190/TRDIODE GEN PURP 600V 3A |
4,324 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 2 µA @ 600 V | - | Military | MIL-PRF-19500/424 | Through Hole | B, Axial | - |
|
|
JANTX1N5189/TRDIODE GEN PURP 500V 3A B |
3,409 |
|
Datasheet | - | Axial | Tape & Reel (TR) | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 µA @ 500 V | - | Military | MIL-PRF-19500/424 | Through Hole | B | -65°C ~ 175°C |
|
|
JAN1N6625US/TRUFR,FRR |
2,071 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.75 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 1 µA @ 1000 V | - | Military | MIL-PRF-19500/585 | Surface Mount | A, SQ-MELF | -65°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
