Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5189/TRDIODE GEN PURP 500V 3A |
8,736 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 2 µA @ 500 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
1N5420E3/TRDIODE GEN PURP 600V 3A B AXIAL |
3,106 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | - | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
1N5188/TRDIODE GEN PURP 400V 3A |
3,323 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 2 µA @ 400 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
1N5195/TRDIODE GEN PURP 180V 200MA DO35 |
5,300 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 180 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 25 nA @ 180 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
1N6620E3/TRDIODE GEN PURP 200V 1.2A A AXIAL |
6,529 |
|
Datasheet | - | Axial | Tape & Reel (TR) | Active | Standard | 200 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | - | - | - | Through Hole | A, Axial | -65°C ~ 150°C |
|
|
JAN1N5809USDIODE GEN PURP 100V 6A B SQ-MELF |
6,745 |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 100 V | 6A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|

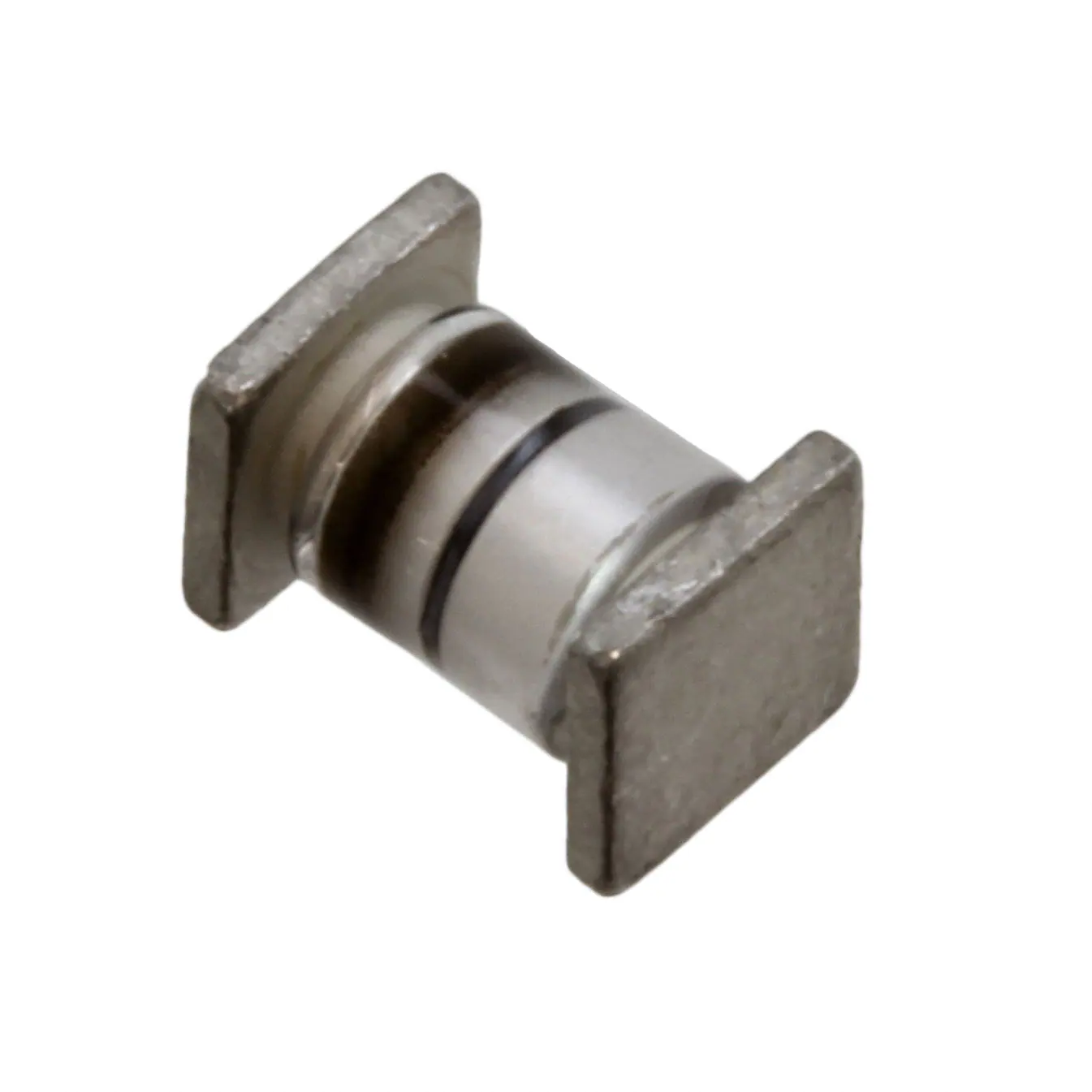

JAN1N5811USDIODE GEN PURP 150V 6A B SQ-MELF |
4,141 |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 150 V | 6A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 150 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
CD1A60DIODE SCHOTTKY 60V 1A DIE |
9,923 |
|
Datasheet | - | Die | Tape & Reel (TR) | Active | Schottky | 60 V | 1A | 750 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | - | Military | MIL-PRF-19500/586 | Surface Mount | Die | -55°C ~ 125°C |
|
|
1N6858-1/TRDIODE SCHOTTKY 70V 75MA DO35 |
4,207 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 70 V | 75mA | 650 mV @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | 4.5pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
JANTXV1N4246DIODE GEN PURP 400V 1A AXIAL |
8,777 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 400 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 400 V | - | Military | MIL-PRF-19500/286 | Through Hole | A, Axial | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
