Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5806USE3/TRDIODE GEN PURP 150V 1A D-5A |
3,742 |
|
Datasheet | - | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 150 V | 1A | 975 mV @ 2.5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 150 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|
1N4249/TRDIODE GEN PURP 1KV 1A |
6,042 |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 1 V | - | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
JANTX1N4944/TRDIODE GEN PURP 400V 1A |
8,808 |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | Military | MIL-PRF-19500/359 | Through Hole | A, Axial | -65°C ~ 175°C |
|

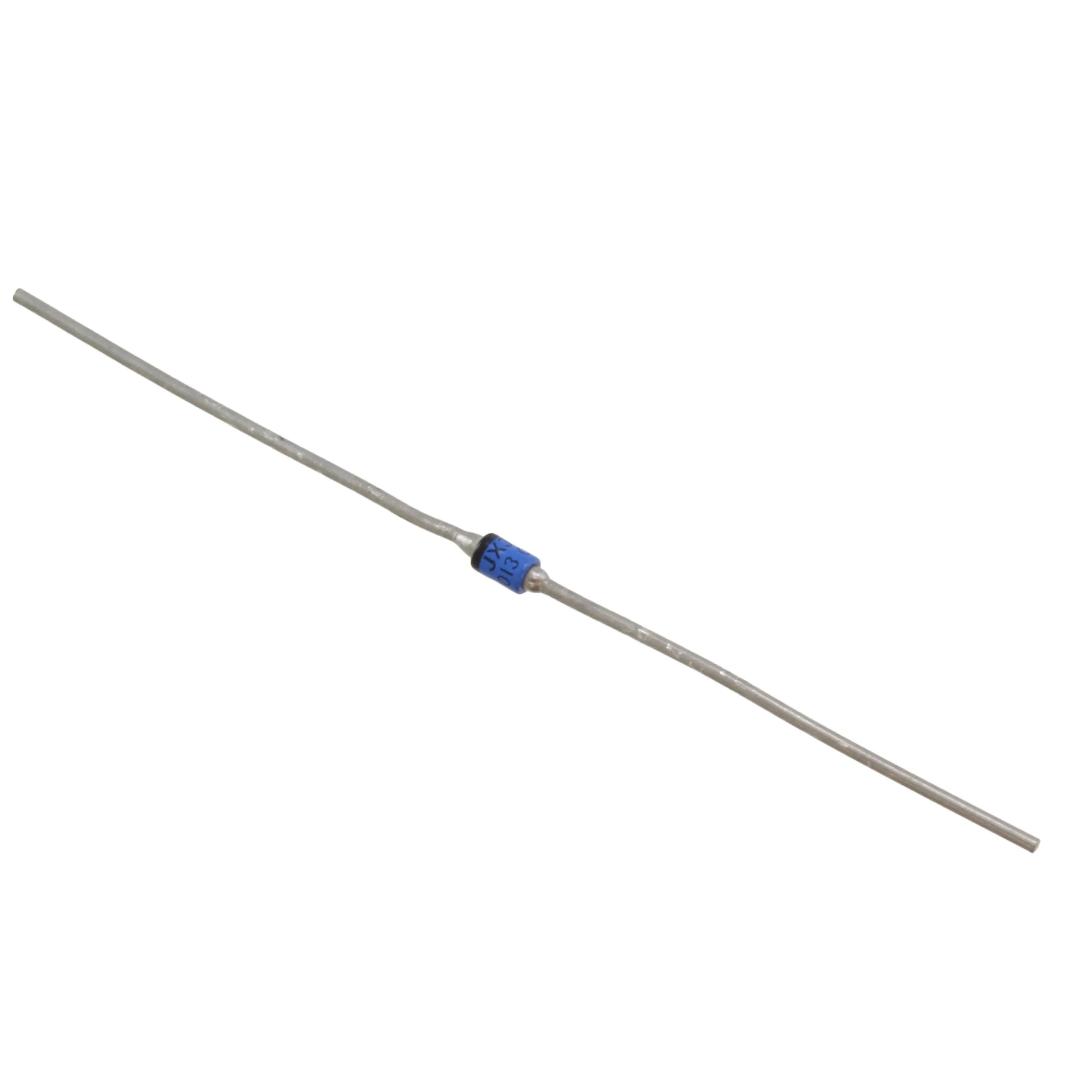

JANTX1N3957DIODE GEN PURP 1KV 1A |
6,969 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 1000 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 µA @ 1000 V | - | Military | MIL-PRF-19500/228 | Through Hole | A, Axial | -65°C ~ 175°C |
|
JANTX1N5622/TRDIODE GEN PURP 1KV 1A |
3,611 |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 1 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
1N4943/TRUFR,FRR |
3,149 |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
JAN1N5415DIODE GEN PURP 50V 3A AXIAL |
4,694 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 50 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 50 V | - | Military | MIL-PRF-19500/411 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JAN1N5416DIODE GEN PURP 100V 3A AXIAL |
7,063 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 100 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 100 V | - | Military | MIL-PRF-19500/411 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JAN1N6643USDIODE GEN PURP 50V 300MA D-5D |
3,232 |
|
Datasheet | - | SQ-MELF, D | Bulk | Discontinued at Digi-Key | Standard | 50 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 500 nA @ 75 V | 5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Surface Mount | D-5D | -65°C ~ 175°C |
|
|
1N5415/TRDIODE GEN PURP 50V 3A |
6,985 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 50 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 50 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
