Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N6642USDIODE GEN PURP 75V 300MA D-5D |
7,444 |
|
Datasheet | - | SQ-MELF, D | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 nA @ 75 V | 40pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Surface Mount | D-5D | -65°C ~ 175°C |
|
|
1N5552/TRDIODE GEN PURP 600V 3A B AXIAL |
2,938 |
|
Datasheet | - | B, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 600 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
1N5805DIODE GEN PURP 125V 1A AXIAL |
6,361 |
|
Datasheet | - | A, Axial | Bulk | Discontinued at Digi-Key | Standard | 125 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 125 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 125°C |
|
|
APT100D60BGDIODE GEN PURP 600V 100A TO247 |
3,867 |
|
Datasheet | - | TO-247-2 | Bulk | Active | Standard | 600 V | 100A | 2 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 250 µA @ 600 V | - | - | - | Through Hole | TO-247 | -55°C ~ 150°C |
|

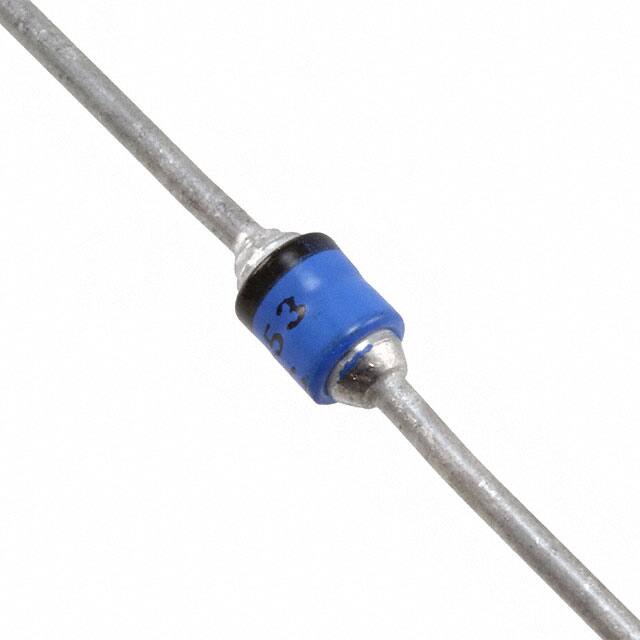

1N5551DIODE GEN PURP 400V 3A AXIAL |
6,230 |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 400 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 400 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
JAN1N5711-1/TRDIODE SCHOTTKY 70V 33MA DO35 |
6,050 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 70 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 70 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
1N5803E3DIODE GEN PURP 80V 1A AXIAL |
9,564 |
|
Datasheet | - | Axial | Bulk | Active | Standard | 80 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 75 V | 25pF @ 10V, 1MHz | - | - | Through Hole | Axial | -65°C ~ 175°C |
|
1N5622/TRDIODE GEN PURP 1KV 1A |
3,669 |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 1 V | - | - | - | Through Hole | A, Axial | -65°C ~ 200°C |
|
CDLL1A80DIODE SCHOTTKY 80V 1A DO213AB |
5,320 |
|
Datasheet | - | DO-213AB, MELF | Bulk | Active | Schottky | 80 V | 1A | 690 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 80 V | - | - | - | Surface Mount | DO-213AB | - |
|
JANTX1N5620/TRDIODE GEN PURP 800V 1A |
8,837 |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 800 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
