Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDLL5818/TRDIODE SCHOTTKY 30V 1A DO213AB |
2,875 |
|
Datasheet | - | DO-213AB, MELF | Tape & Reel (TR) | Active | Schottky | 30 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | 0.9pF @ 5V, 1MHz | - | - | Surface Mount | DO-213AB | -65°C ~ 150°C |
|
JANTX1N4246/TRDIODE GEN PURP 400V 1A |
7,927 |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 400 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 400 V | - | Military | MIL-PRF-19500/286 | Through Hole | A, Axial | -65°C ~ 175°C |
|
JAN1N5619DIODE GEN PURP 600V 1A AXIAL |
2,407 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 600 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 500 nA @ 800 V | - | Military | MIL-PRF-19500/429 | Through Hole | A, Axial | -65°C ~ 175°C |
|

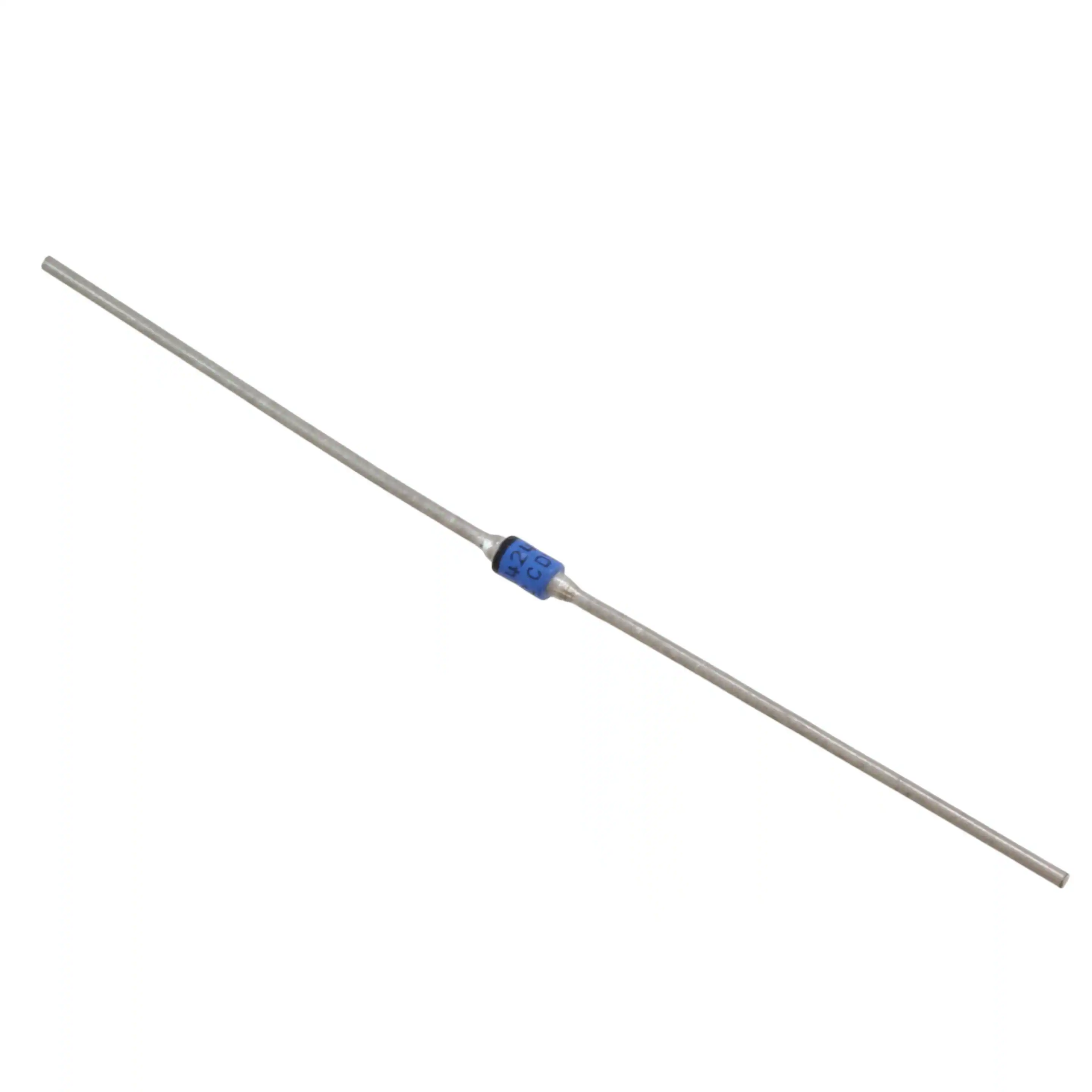

JANTX1N4245DIODE GEN PURP 200V 1A AXIAL |
5,824 |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 200 V | - | Military | MIL-PRF-19500/286 | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
CD5818DIODE SCHOTTKY 30V 1A DIE |
3,901 |
|
Datasheet | - | Die | Tape & Reel (TR) | Active | Schottky | 30 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | - | Military | MIL-PRF-19500/586 | Surface Mount | Die | -55°C ~ 125°C |
|
JANTX1N3600/TRDIODE GEN PURP 50V 200MA DO35 |
8,033 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 50 V | 200mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | - | Military | MIL-PRF-19500/231 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
1N5620/TRDIODE GEN PURP 800V 1A |
2,463 |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 800 V | - | - | - | Through Hole | A, Axial | -65°C ~ 200°C |
|
|
1N5621/TRDIODE GEN PURP 800V 1A |
2,215 |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 500 nA @ 800 V | 20pF @ 12V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
1N486AZENER DIODE |
5,671 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
JAN1N4153-1/TRDIODE GEN PURP 50V 150MA DO35 |
2,296 |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Standard | 50 V | 150mA | 880 mV @ 20 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 50 nA @ 50 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/337 | Through Hole | DO-204AH (DO-35) | -65°C ~ 200°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
