Single Diodes
Review Single Diodes Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR3540RDIODE SCHOTTKY REV 40V 35A DO4 |
8,321 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 40 V | 35A | 680 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
|
MBR3545RDIODE SCHOTTKY REV 45V 35A DO4 |
4,402 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 45 V | 35A | 680 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
|
MBR3580RDIODE SCHOTTKY REV 80V 35A DO4 |
3,046 |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 80 V | 35A | 840 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
FR30G02DIODE GEN PURP 400V 30A DO5 |
2 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
MUR5010DIODE GEN PURP 100V 50A DO5 |
7,466 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
MUR5005DIODE GEN PURP 50V 50A DO5 |
8,811 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 50 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
MUR5020DIODE GEN PURP 200V 50A DO5 |
3,660 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
MUR5040DIODE GEN PURP 400V 50A DO5 |
5,867 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
FR70G02DIODE GEN PURP 400V 70A DO5 |
3,781 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 70A | 1.4 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|

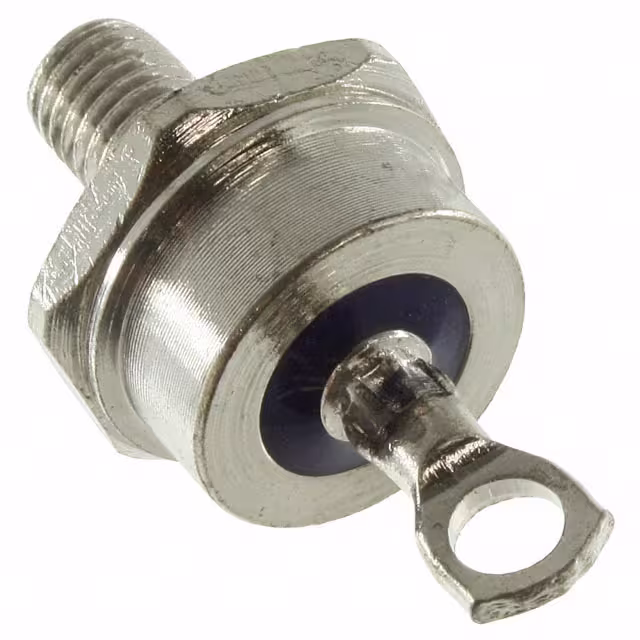

MUR7020DIODE GEN PURP 200V 70A DO5 |
6,400 |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 70A | 1 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
Frequently Asked Questions
What are Single Diodes components used for?
Single Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Single Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Single Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
