Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAT54S-7-99-FDIODE ARR SCHOT 30V 200MA SOT233 |
9,393 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | 1 Pair Series Connection | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 2 µA @ 30 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SDT20120VCTDIODE ARR SCHOT 120V 10A TO220AB |
9,798 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 10A | 860 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 120 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
|
SDT30100VCTDIODE ARR SCHOT 100V 15A TO2203 |
3,594 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 720 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|

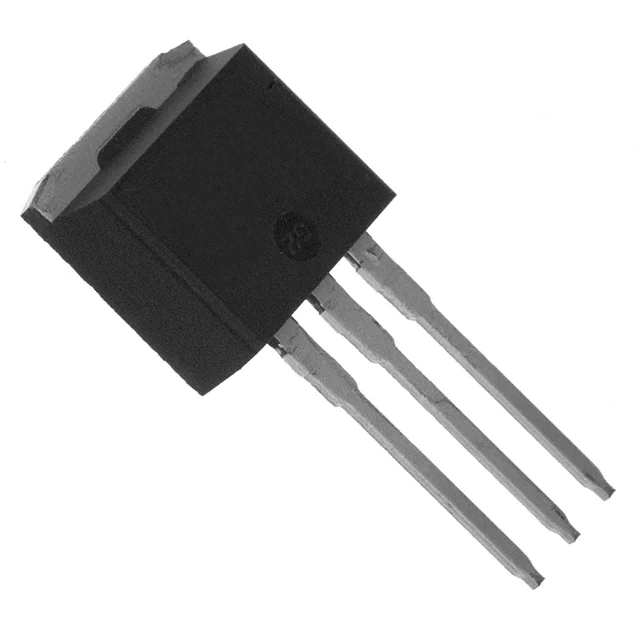

SDT30100CTEDIODE ARR SCHOTT 100V 15A TO-262 |
6,939 |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 70 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | TO-262 |
|
|
SDT40A120CTEDIODE ARR SCHOTT 120V 20A TO-262 |
8,077 |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 880 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 120 V | -55°C ~ 150°C | - | - | Through Hole | TO-262 |
|
|
SDT40A100CTEDIODE ARR SCHOTT 100V 20A TO-262 |
6,810 |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 720 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | TO-262 |
|
MBRF10200CT-LJDIODE ARR SCHOT 200V 5A ITO220AB |
5,399 |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 5A | 910 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | ITO-220AB |
|
MBRF2060CTDIODE ARRAY SCHOTT 60V ITO220AB |
3,458 |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | - | Schottky | 60 V | - | 640 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | ITO-220AB |
|
SDT20100VCTDIODE SCHOTTKY RECT TO220AB TUBE |
7,040 |
|
Datasheet | - | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BAS16TW-7-GDIODE GEN PURP 75V SOT363 |
7,119 |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
