Diode Arrays
Explore Diode Arrays parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTXV1N5712UBCCDIODE ARRAY SCHOTTKY 16V 75MA UB |
4,128 |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | 1 Pair Common Cathode | Schottky | 16 V | 75mA | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
JANTXV1N5712UBCA/TRDIODE ARRAY SCHOTTKY 16V 75MA UB |
9,540 |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Common Anode | Schottky | 16 V | 75mA | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
JANTXV1N5712UBD/TRDIODE ARRAY SCHOTTKY 16V 75MA UB |
9,318 |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Series Connection | Schottky | 16 V | 75mA | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
DD104N16KHPSA2DIODE MOD GP 1600V 104A MOD |
7,970 |
|
Datasheet | DD104N | Module | Tray | Active | 1 Pair Series Connection | Standard | 1600 V | 104A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | 150°C | - | - | Chassis Mount | Module |
|
|
JANTXV1N5711UBCADIODE ARRAY SCHOTTKY 50V 33MA UB |
9,896 |
|
Datasheet | - | 4-SMD, No Lead | Bulk | Active | 1 Pair Common Anode | Schottky | 50 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
JANTXV1N5711UBCA/TRDIODE ARRAY SCHOTTKY 50V 33MA UB |
7,569 |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Common Anode | Schottky | 50 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
JANTXV1N5711UBCCDIODE ARRAY SCHOTTKY 50V 33MA UB |
6,161 |
|
Datasheet | - | 4-SMD, No Lead | Bulk | Active | 1 Pair Common Cathode | Schottky | 50 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
JANTXV1N5711UBDDIODE ARRAY SCHOTTKY 50V 33MA UB |
6,095 |
|
Datasheet | - | 4-SMD, No Lead | Bulk | Active | 1 Pair Series Connection | Schottky | 50 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
|
MD260C16D3-BPDIODE MODULE GP 1600V 260A D3 |
9,992 |
|
Datasheet | - | Module | Bulk | Not For New Designs | 1 Pair Series Connection | Standard | 1600 V | 260A | 1.45 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | D3 |
|
|
MD260C14D3-BPDIODE MODULE GP 1400V 260A D3 |
5,679 |
|
Datasheet | - | Module | Tape & Reel (TR) | Not For New Designs | 1 Pair Series Connection | Standard | 1400 V | 260A | 1.45 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1400 V | -40°C ~ 150°C | - | - | Chassis Mount | D3 |
|
|
JANTXV1N5711UBD/TRDIODE ARRAY SCHOTTKY 50V 33MA UB |
4,416 |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Series Connection | Schottky | 50 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | -65°C ~ 150°C | Military | MIL-PRF-19500/444 | Surface Mount | UB |
|
DD300KB80DIODE MODULE GEN PURP 800V 300A |
3,046 |
|
Datasheet | - | Module | Active | 1 Pair Series Connection | Standard | 800 V | 300A | 1.5 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | -40°C ~ 150°C | - | - | Chassis Mount | - | |
|
|
MDD310-18N1DIODE MODULE GP 1800V 305A Y2DCB |
7,983 |
|
Datasheet | - | Y2-DCB | Box | Active | 1 Pair Series Connection | Standard | 1800 V | 305A | 1.2 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1800 V | -40°C ~ 150°C | - | - | Chassis Mount | Y2-DCB |
|
|
DD104N18KHPSA2DIODE MOD GP 1800V 104A MOD |
4,779 |
|
Datasheet | DD104N | Module | Tray | Active | 1 Pair Series Connection | Standard | 1800 V | 104A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | 150°C | - | - | Chassis Mount | Module |
|
|
DD300KB160DIODE MODULE GEN PURP 1600V 300A |
5,944 |
|
Datasheet | - | Module | Active | 1 Pair Series Connection | Standard | 1600 V | 300A | 1.5 V @ 750 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | - | |
|

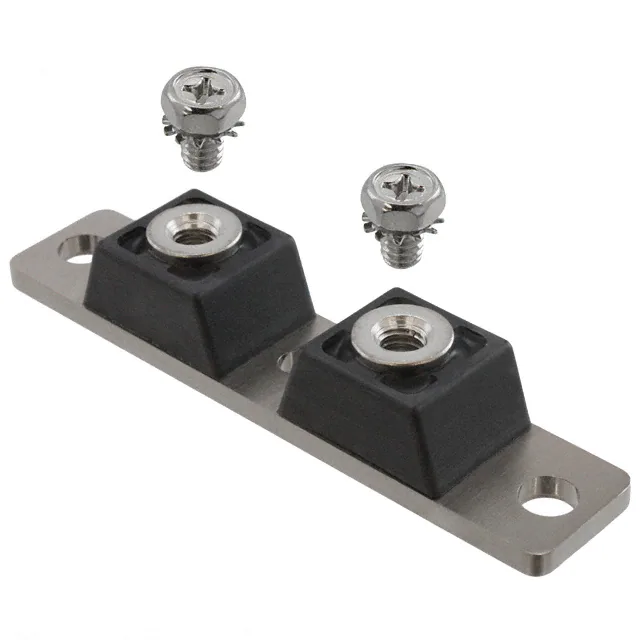

MBR60040CTDIODE MOD SCHOTT 40V 300A 2TOWER |
5,382 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR60040CTRDIODE MOD SCHOTT 40V 300A 2TOWER |
7,082 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 40 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR600100CTDIODE MOD SCHOT 100V 300A 2TOWER |
9,261 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 300A | 880 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR600100CTRDIODE MOD SCHOT 100V 300A 2TOWER |
7,061 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 100 V | 300A | 880 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR60020CTDIODE MOD SCHOTT 20V 300A 2TOWER |
5,525 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 20 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
