Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-C5PH6006LHN3DIODE ARRAY GP 600V 30A TO-247AD |
9,047 |
|
Datasheet | FRED Pt® Gen 5 | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 46 ns | 20 µA @ 600 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247AD |
|
VS-VSKD91/12DIODE MOD GP 1200V 50A ADDAPAK |
5 |
|
Datasheet | - | ADD-A-PAK (3) | Bulk | Active | 1 Pair Common Cathode | Standard | 1200 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | ADD-A-PAK® |
|
VS-VSKD91/04DIODE MODULE GP 400V 50A ADDAPAK |
5,368 |
|
Datasheet | - | ADD-A-PAK (3) | Bulk | Active | 1 Pair Common Cathode | Standard | 400 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 400 V | -40°C ~ 150°C | - | - | Chassis Mount | ADD-A-PAK® |
|
VS-VSKD91/08DIODE MODULE GP 800V 50A ADDAPAK |
7,041 |
|
Datasheet | - | ADD-A-PAK (3) | Bulk | Active | 1 Pair Common Cathode | Standard | 800 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 800 V | -40°C ~ 150°C | - | - | Chassis Mount | ADD-A-PAK® |
|
|
VS-VSKJ166/08PBFDIODE MOD GP 800V 82.5A INTAPAK |
3 |
|
Datasheet | - | INT-A-PAK (3) | Bulk | Active | 1 Pair Common Anode | Standard | 800 V | 82.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | -40°C ~ 150°C | - | - | Chassis Mount | INT-A-PAK |
|

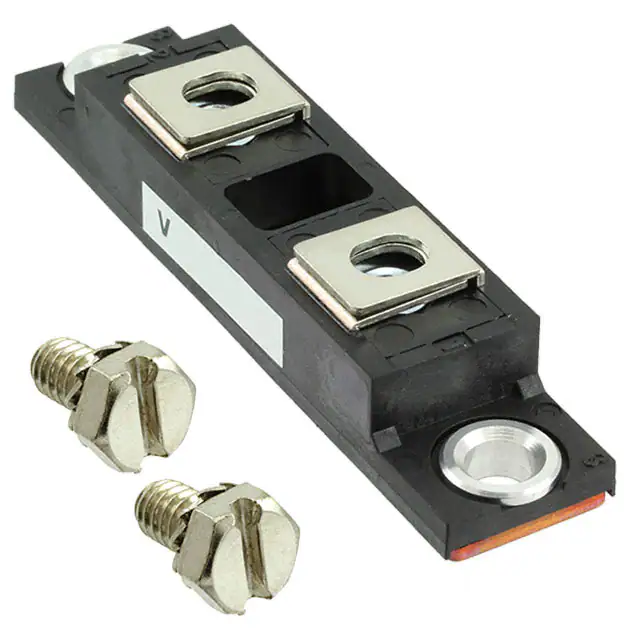

VS-409CNQ150PBFDIODE MOD SCHOTTKY 150V TO-244AB |
6,390 |
|
Datasheet | - | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 400A | 1.46 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | - | - | - | Chassis Mount | TO-244AB |
|
BAS40-05-E3-18DIODE ARR SCHOT 40V 200MA SOT233 |
2,723 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 125°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
VS-MURB1020CT-1-M3DIODE ARRAY GP 200V 5A TO-262AA |
3,492 |
|
Datasheet | FRED Pt® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | 1 Pair Common Cathode | Standard | 200 V | 5A | 1.25 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | -65°C ~ 175°C | - | - | Through Hole | TO-262AA |
|
|
VS-16CTU04-1-M3DIODE ARRAY GP 400V 8A TO-262AA |
6,738 |
|
Datasheet | FRED Pt® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | 1 Pair Common Cathode | Standard | 400 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 10 µA @ 400 V | -65°C ~ 175°C | - | - | Through Hole | TO-262AA |
|
VT3060C-E3/4WDIODE ARR SCHOTT 45V 15A TO2203 |
5,049 |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 570 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | -40°C ~ 150°C | - | - | Through Hole | TO-220-3 |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
