Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

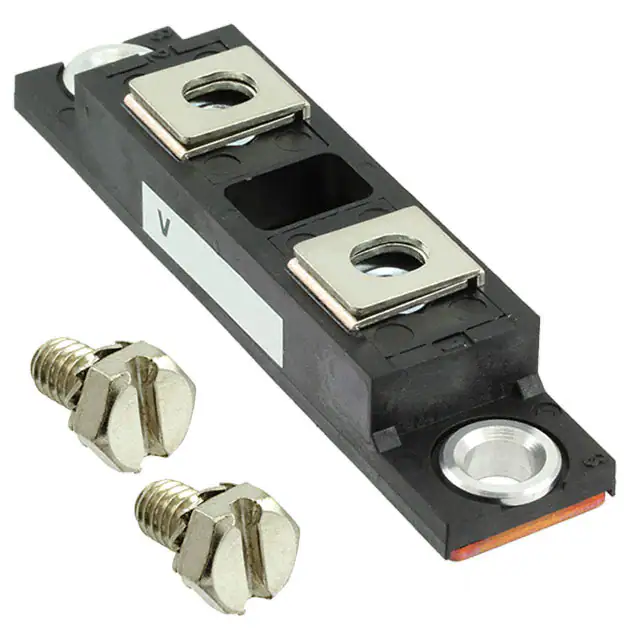

VS-401CNQ045PBFDIODE MOD SCHOT 45V 400A TO244AB |
279 |
|
Datasheet | - | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 400A | 780 mV @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | - | - | - | Chassis Mount | TO-244AB |
|
VS-HFA220FA120DIODE MOD GP 1200V 110A SOT-227 |
1,128 |
|
Datasheet | HEXFRED® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 110A (DC) | 3.6 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 58 ns | 75 µA @ 1200 V | - | - | - | Chassis Mount | SOT-227 |
|
BAV99-E3-18DIODE ARRAY GP 70V 150MA SOT23-3 |
54,947 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 70 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 2.5 µA @ 70 V | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
MMBD7000-E3-08DIODE ARRAY GP 100V 200MA SOT233 |
142,586 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 100 V | 200mA (DC) | 1.1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 3 µA @ 100 V | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
GSD2004S-E3-08DIODE ARRAY GP 240V 225MA SOT233 |
36,987 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 240 V | 225mA (DC) | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 240 V | 150°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
BAW56-E3-08DIODE ARRAY GP 70V 250MA SOT23-3 |
12,479 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 70 V | 250mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 µA @ 70 V | 150°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
BAV70-E3-08DIODE ARRAY GP 70V 250MA SOT23-3 |
55,629 |
|
Datasheet | BAV70 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 70 V | 250mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 50 µA @ 70 V | 150°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
BAV99-E3-08DIODE ARRAY GP 70V 150MA SOT23-3 |
43,881 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 70 V | 150mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 µA @ 70 V | -55°C ~ 150°C | - | - | Surface Mount | SOT-23-3 |
|
|
BAS70-06-E3-08DIODE ARR SCHOT 70V 200MA SOT233 |
26,525 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Schottky | 70 V | 200mA (DC) | 410 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | 125°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
BAT54S-E3-08DIODE ARR SCHOT 30V 200MA SOT233 |
59,145 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | - | - | Surface Mount | SOT-23-3 |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
