| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VT3080CHM3/4WDIODE ARR SCHOTT 80V 15A TO2203 |
4,861 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 15A | 820 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 80 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
VT4045CHM3/4WDIODE ARR SCHOTT 45V 20A TO2203 |
7,276 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 580 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|

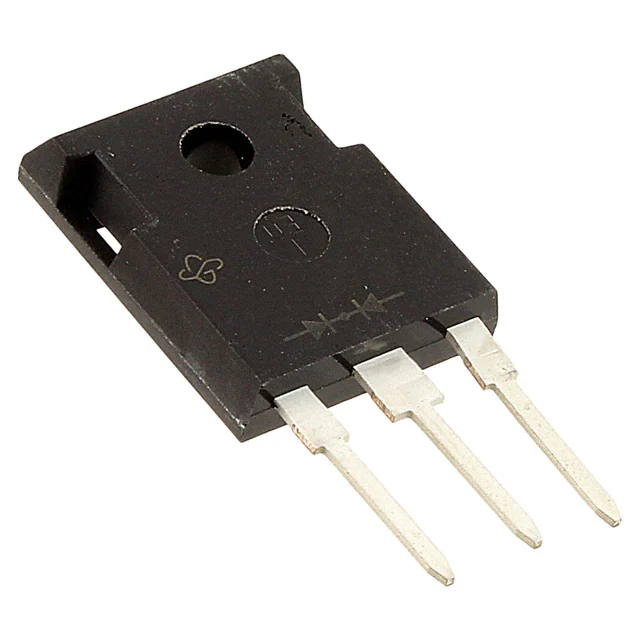

VT80L45PW-M3/4WDIODE ARRAY SCHOT 45V 40A TO-3PW |
3,799 |
|
Datasheet | - | TO-3P-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 40A | 580 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 9 mA @ 45 V | -40°C ~ 150°C | - | - | Through Hole | TO-3PW |
|
V40M150CHM3/4WDIODE ARR SCHOT 150V 20A TO220AB |
3,673 |
|
Datasheet | TMBS® | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.43 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 150 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
|
V60M120CHM3/4WDIODE ARR SCHOT 120V 30A TO2203 |
2,421 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 30A | 970 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
UH4PDCHM3_A/HDIODE ARRAY GP 200V 2A TO277A |
6,065 |
|
Datasheet | eSMP® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 2A | 1.05 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 24 ns | 5 µA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
|
UH4PDCHM3_A/IDIODE ARRAY GP 200V 2A TO277A |
5,571 |
|
Datasheet | eSMP® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 2A | 1.05 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 24 ns | 5 µA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
VS-30CPU04HN3DIODE ARRAY GP 400V 15A TO-247AC |
3,582 |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 15A | 1.25 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 46 ns | 10 µA @ 400 V | -65°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247AC |
|
VS-CPH3006L-M3DIODE ARRAY GP 600V 15A TO247-3 |
8,933 |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A | 2.45 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 15 µA @ 600 V | -65°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
|
VS-CPH6006L-M3DIODE ARRAY GP 600V 15A TO247-3 |
7,921 |
|
Datasheet | FRED Pt® | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A | 2.45 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 15 µA @ 600 V | -65°C ~ 175°C | - | - | Through Hole | TO-247-3 |
