Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30CTQ050DIODE ARR SCHOTT 50V 15A TO2203 |
8,147 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 50 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 50 V | -55°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|

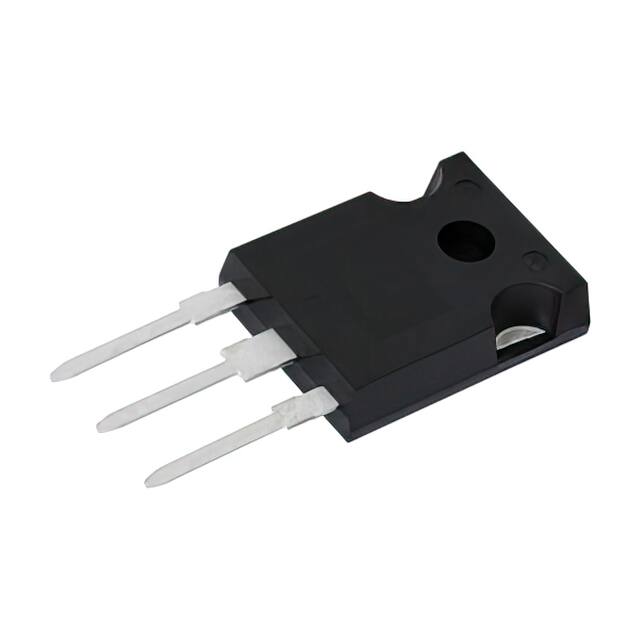

VS-40CPQ060HN3DIODE ARR SCHOTT 60V 40A TO247AC |
7,393 |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 60 V | 40A | 680 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.7 mA @ 60 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-247AC |
|
MBR20100CT-1DIODE ARR SCHOT 100V 10A TO2623 |
4,439 |
|
Datasheet | TMBS® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 800 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 150°C | - | - | Through Hole | TO-262-3 |
|
40CTQ045DIODE ARR SCHOTT 45V 20A TO2203 |
4,625 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
VS-30CPQ040PBFDIODE ARR SCHOTT 40V 15A TO247AC |
7,809 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 15A | 540 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 40 V | -55°C ~ 150°C | - | - | Through Hole | TO-247AC |
|
VB20150C-E3/8WDIODE ARR SCHOT 150V 10A TO263AB |
2,423 |
|
Datasheet | TMBS® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 1.2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 150 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
43CTQ100-1DIODE ARR SCHOT 100V 20A TO2623 |
5,753 |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 810 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 175°C | - | - | Through Hole | TO-262-3 |
|
VX60202PGWHM3/PDIODE ARR SCHOT 200V 30A TO247AD |
2,663 |
|
Datasheet | - | TO-247-3 | Tube | Discontinued at Digi-Key | 1 Pair Common Cathode | Schottky | 200 V | 30A | 920 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247AD |
|
|
VBT2045CBP-E3/8WDIODE ARR SCHOTT 45V 10A TO263AB |
2,803 |
|
Datasheet | TMBS® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 45 V | 10A | 580 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | 200°C (Max) | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
VS-C5PX3012LHN3DIODE ARRAY GP 1200V 15A TO247AD |
9,725 |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 1200 V | 15A | 3.3 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 77.5 ns | 50 µA @ 1200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247AD |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
