Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-12CWQ06FNTRRHM3DIODE ARRAY SCHOTTKY 60V 6A DPAK |
7,988 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 60 V | 6A | 790 mV @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 60 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | TO-252AA (DPAK) |
|
VS-MBR3035WTPBFDIODE ARR SCHOTT 35V 15A TO247AC |
8,780 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 15A | 760 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -65°C ~ 150°C | - | - | Through Hole | TO-247AC |
.jpg "VS-25CTQ045SLHM3")
|

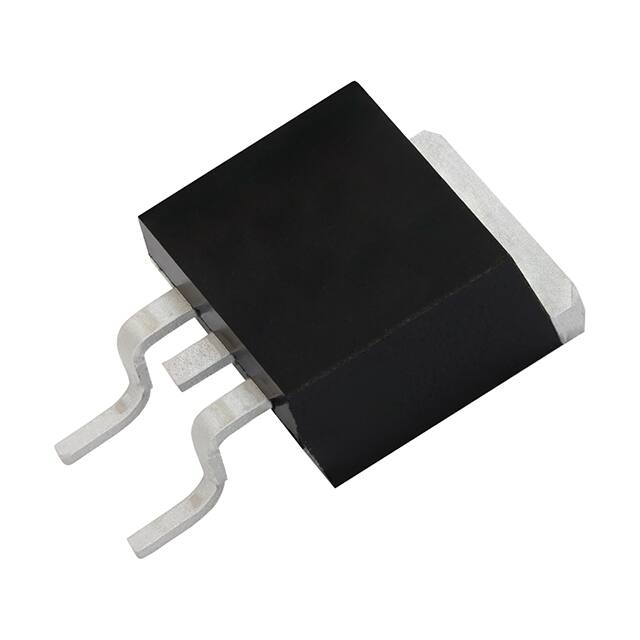

VS-25CTQ045SLHM3DIODE ARR SCHOTT 45V 30A TO263AB |
9,937 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 710 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 45 V | -55°C ~ 150°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
FEPB16FTHE3_A/PDIODE ARRAY GP 300V 8A TO263AB |
5,346 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 300 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 300 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
FEPB16GTHE3_A/PDIODE ARRAY GP 400V 8A TO263AB |
2,919 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 400 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
FEPB16HTHE3_A/PDIODE ARRAY GP 500V 8A TO263AB |
4,556 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 500 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 500 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
FEPB16JTHE3_A/PDIODE ARRAY GP 600V 8A TO263AB |
4,024 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 600 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
VS-MBRB4045CTRHM3DIODE ARR SCHOTT 45V 20A TO263AB |
4,451 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 600 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
MURB2020CTDIODE ARRAY GP 200V 10A TO263AB |
8,187 |
|
Datasheet | FRED Pt® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 10A | 850 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 15 µA @ 200 V | -65°C ~ 175°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
VS-30CTQ035STRLHM3DIODE ARR SCHOTT 35V 15A TO263AB |
9,579 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 35 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 35 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
