Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STTH10LCD06CTDIODE ARRAY GP 600V 5A TO-220 |
7,678 |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 5A | 2 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 µA @ 600 V | 175°C (Max) | - | - | Through Hole | TO-220 |
|
|
STTH10BC065CTDIODE ARRAY GP 650V 5A TO-220 |
3,414 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 650 V | 5A | 3.2 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 2.5 µA @ 650 V | - | - | - | Through Hole | TO-220 |
|
STPS30L30CGDIODE ARRAY SCHOTT 30V 15A D2PAK |
2,311 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 15A | 460 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 60 V | 150°C (Max) | - | - | Surface Mount | D2PAK |
|
|
STTH20LCD06CTDIODE ARRAY GP 600V 10A TO-220 |
8,260 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 10A | 2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 µA @ 600 V | 175°C (Max) | - | - | Through Hole | TO-220 |
|
|
STPS40L40CTDIODE ARRAY SCHOT 40V 20A TO-220 |
3,939 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 40 V | 150°C (Max) | - | - | Through Hole | TO-220 |
|
|
STPS4030CTDIODE ARRAY SCHOT 30V 20A TO-220 |
9,666 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 20A | 490 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | 150°C (Max) | - | - | Through Hole | TO-220 |
|
|
STTH20LCD06CG-TRDIODE ARRAY GP 600V 10A D2PAK |
4,938 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 10A | 2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 µA @ 600 V | 175°C (Max) | - | - | Surface Mount | D2PAK |
|
STPS40L45CGDIODE ARRAY SCHOTT 45V 20A D2PAK |
6,848 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 45 V | 150°C (Max) | - | - | Surface Mount | D2PAK |
|

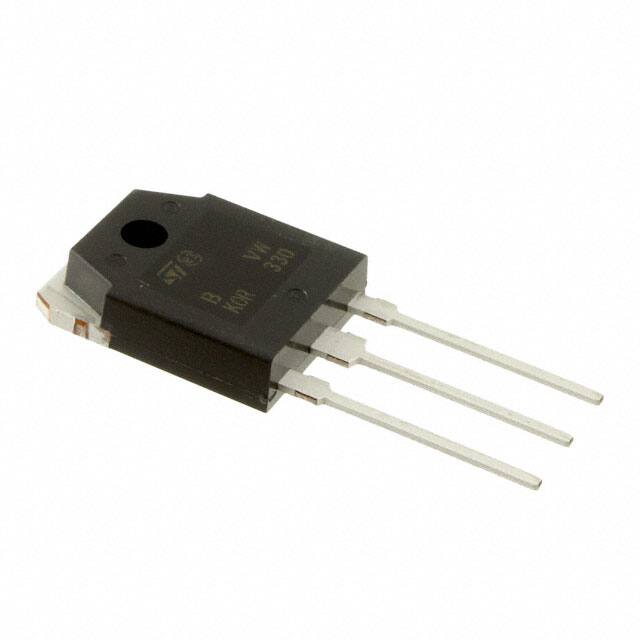

STTH30AC06CPDIODE ARRAY GP 600V 15A TO-3PF |
3,752 |
|
Datasheet | - | TO-3PF | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A | 1.95 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 10 µA @ 600 V | -65°C ~ 175°C | - | - | Through Hole | TO-3PF |
|
STPS40SM80CFPDIODE ARR SCHOTT 80V TO-220FPAB |
9,203 |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 80 V | 175°C (Max) | - | - | Through Hole | TO-220FPAB |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
