Diode Arrays
Explore Diode Arrays parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-U5FX120FA60DIODE MODULE GP 600V 60A SOT-227 |
154 |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 60A (DC) | 2.2 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 63 ns | 40 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
VS-U5FH150FA60DIODE MODULE GP 600V 75A SOT-227 |
160 |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 75A (DC) | 1.7 V @ 75 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 50 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
VS-U5FX150FA60DIODE MODULE GP 600V 75A SOT-227 |
126 |
|
Datasheet | FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 75A (DC) | 2.2 V @ 75 A | Fast Recovery =< 500ns, > 200mA (Io) | 65 ns | 50 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
PCDH40120CCG1_T0_00601DIODE ARR SIC 1200V 20A TO-247AD |
1,500 |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 20A (DC) | 1.7 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 180 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
|
IV1D12040U2DIODE ARR SIC 1200V 102A TO2472 |
120 |
|
Datasheet | - | TO-247-2 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 102A (DC) | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-2 |
|
1N4148UBCA/TRDIODE ARRAY GP 75V 200MA UB |
200 |
|
Datasheet | - | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 75 V | -65°C ~ 200°C | - | - | Surface Mount | UB |
|
|
1N4148UBDDIODE ARRAY GP 75V 200MA UB |
151 |
|
Datasheet | - | 3-SMD, No Lead | Bulk | Active | 1 Pair Series Connection | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 75 V | -65°C ~ 200°C | - | - | Surface Mount | UB |
|
|
RJS6004WDPK-00#T0DIODE ARRAY SIC 600V 10A TO-3P |
750 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 600 V | 10A (DC) | 1.8 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 15 ns | 10 µA @ 600 V | -55°C ~ 150°C | - | - | Through Hole | TO-3P |
|
GB2X50MPS12-227DIODE MOD SIC 1200V 93A SOT-227 |
248 |
|
Datasheet | SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 93A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 40 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
DCG45X1200NADIODE MOD SIC 1200V 22A SOT227B |
196 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 22A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -40°C ~ 175°C | - | - | Chassis Mount | SOT-227B |
|
|
GB2X50MPS17-227DIODE MOD SIC 1700V 136A SOT-227 |
79 |
|
Datasheet | SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1700 V | 136A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 50 µA @ 1700 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
MBRT20060RDIODE MOD SCHOTT 60V 100A 3TOWER |
67 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 60 V | 100A | 800 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MUR20020CTDIODE MODULE GP 200V 100A 2TOWER |
48 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Standard | 200 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|

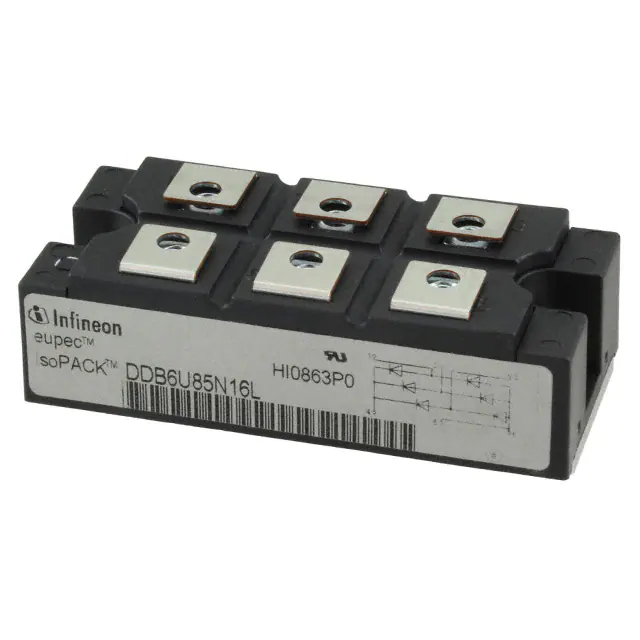

DDB6U85N16LHOSA1DIODE MODULE GP 1600V AGISOPACK1 |
9 |
|
Datasheet | - | Module | Bulk | Obsolete | 3 Independent | Standard | 1600 V | 60A | 1.44 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | 150°C (Max) | - | - | Chassis Mount | AG-ISOPACK-1 |
|
MD165A16D2-BPDIODE MODULE GP 1600V 165A D2 |
80 |
|
Datasheet | - | D2 | Bulk | Active | 1 Pair Common Anode | Standard | 1600 V | 165A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | D2 |
|
MSCDC150KK70D1PAGDIODE MODULE SIC 700V 150A D1P |
34 |
|
Datasheet | - | Module | Box | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 700 V | 150A | 1.8 V @ 150 A | No Recovery Time > 500mA (Io) | 0 ns | 600 µA @ 700 V | -40°C ~ 175°C | - | - | Chassis Mount | D1P |
|
|
DCG130X1200NADIODE MOD SIC 1200V 64A SOT227B |
335 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 64A | 1.8 V @ 60 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 1200 V | -40°C ~ 175°C | - | - | Chassis Mount | SOT-227B |
|
JANTX1N6511DIODE ARRAY GP 75V 300MA 14-CDIP |
90 |
|
Datasheet | - | 14-CDIP (0.300", 7.62mm) | Bulk | Active | 7 Independent | Standard | 75 V | 300mA (DC) | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 100 nA @ 40 V | - | Military | MIL-PRF-19500/4 | Through Hole | 14-CDIP |
|
DD400S33K2CNOSA1DIODE MODULE GP 3300V AIHV130-3 |
9,416 |
|
Datasheet | - | Module | Bulk | Obsolete | 2 Independent | Standard | 3300 V | - | 3.5 V @ 400 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | A-IHV130-3 |
|
|
DD800S33K2CNOSA1DIODE MODULE GP 3300V AIHV130-3 |
6,254 |
|
Datasheet | - | Module | Bulk | Obsolete | 2 Independent | Standard | 3300 V | - | 3.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | A-IHV130-3 |
