Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2320157GEN PURP 24V 20A MODULE |
124 |
|
Datasheet | - | Din Rail Module | Bulk | Active | 1 Pair Common Cathode | Standard | 24 V | 20A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 70°C | - | - | - | Module |
|
2952790DIODE MOD GP 1000V 1.5A MOD |
3 |
|
Datasheet | - | Module | Bulk | Active | 4 Independent | Standard | 1000 V | 1.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
2320160GEN PURP 48V 20A MODULE |
18 |
|
Datasheet | - | Din Rail Module | Bulk | Active | 1 Pair Common Cathode | Standard | 48 V | 20A (DC) | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 70°C | - | - | - | Module |
|

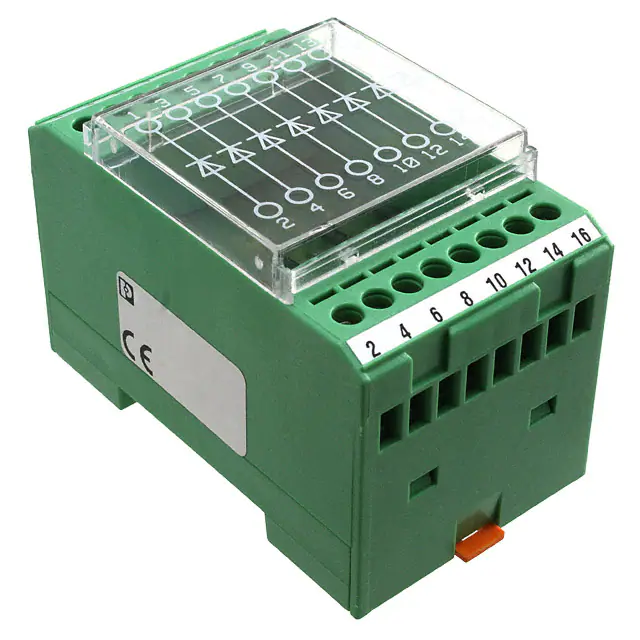

2950103DIODE MOD GP 1300V 700MA MOD |
2 |
|
Datasheet | - | Housed Axial | Bulk | Active | 8 Independent | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|
2954798DIODE MOD GP 1300V 400MA MOD |
9 |
|
Datasheet | - | Module | Bulk | Active | 4 Pair Common Cathode | Standard | 1300 V | 400mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
2954895DIODE MOD GP 1300V 500MA MOD |
6 |
|
Datasheet | - | Module | Bulk | Active | 17 Independent | Standard | 1300 V | 500mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
2950048GEN PURP 1300V 700MA MODULE |
3 |
|
Datasheet | - | Housed Axial | Bulk | Active | 4 Independent | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | - | Module |
|
2949389DIODE MOD GP 1000V 1.5A MOD |
4 |
|
Datasheet | - | Housed Axial | Bulk | Active | 8 Independent | Standard | 1000 V | 1.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|

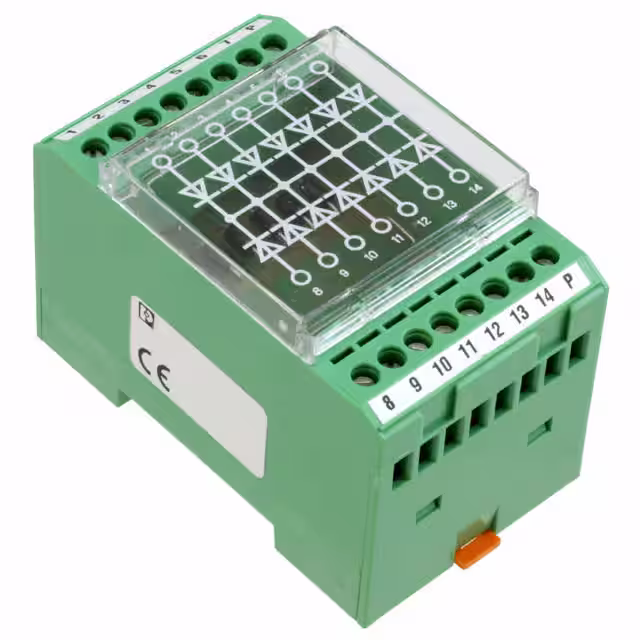

2950116DIODE MOD GP 1300V 700MA MOD |
2 |
|
Datasheet | - | Housed Axial | Bulk | Active | 14 Common Cathode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|
2950129DIODE MOD GP 1300V 700MA MOD |
2 |
|
Datasheet | - | Housed Axial | Bulk | Active | 14 Common Anode | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
