Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBM3060UCT_T0_00001DIODE ARR SCHOTT 60V 15A TO220AB |
2,000 |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 60 V | 15A | 560 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
MBR40100PT_T0_00001DIODE ARR SCHOT 100V 40A TO247AD |
1,452 |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 100 V | 40A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 100 V | -65°C ~ 175°C | - | - | Through Hole | TO-247AD (TO-3P) |
|
MBR6045PT_T0_00001DIODE ARR SCHOTT 45V 60A TO247AD |
1,364 |
|
Datasheet | MBR6040PT | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 60A | 700 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 45 V | -65°C ~ 175°C | - | - | Through Hole | TO-247AD (TO-3P) |
|
PSDH6060CCS1_T0_00001DIODE ARRAY GP 600V 30A TO-247AD |
1,500 |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 30A | 2.3 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 250 µA @ 600 V | -55°C ~ 150°C | - | - | Through Hole | TO-247AD |
|
|
PSDH6060CCL1_T0_00001DIODE ARRAY GP 600V 30A TO-247AD |
1,260 |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 30A | 1.8 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 115 ns | 250 µA @ 600 V | -55°C ~ 150°C | - | - | Through Hole | TO-247AD |
|
PCDH2065CCG1_T0_00601DIODE ARR SIC 650V 10A TO-247AD |
1,466 |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 650 V | 10A (DC) | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 70 µA @ 650 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
|
PCDH3065CCG1_T0_00601DIODE ARR SIC 650V 15A TO-247AD |
1,470 |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 650 V | 15A (DC) | 1.7 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
|
PCDH4065CCG1_T0_00601DIODE ARR SIC 650V 20A TO-247AD |
1,440 |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 650 V | 20A (DC) | 1.7 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 120 µA @ 650 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
|
PCDH20120CCG1_T0_00601DIODE ARR SIC 1200V 10A TO-247AD |
1,170 |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 10A (DC) | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
|

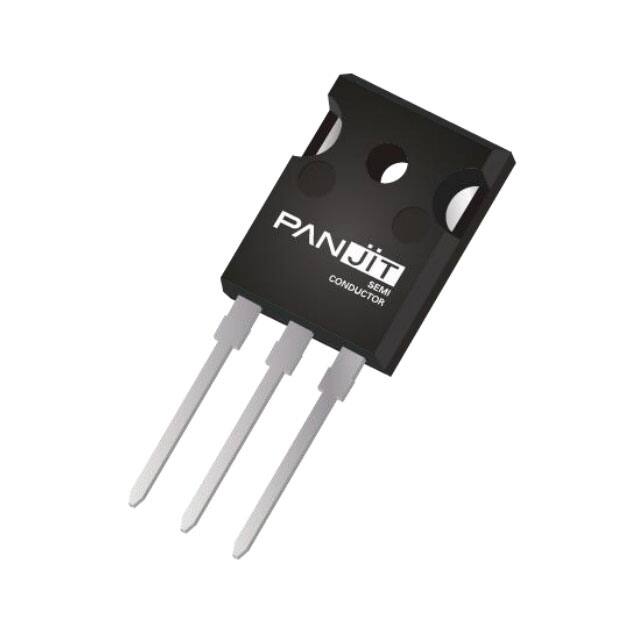

PCDH30120CCG1_T0_00601DIODE ARR SIC 1200V 15A TO-247AD |
1,500 |
|
Datasheet | - | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 15A (DC) | 1.7 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | 140 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
