Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTST40120CTGDIODE ARR SCHOTT 120V 20A TO-220 |
7,957 |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 910 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 150°C | - | - | Through Hole | TO-220 |
|
|
MBR16100CTDIODE ARRAY SCHOT 100V 8A TO-220 |
6,315 |
|
Datasheet | SWITCHMODE™ | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 8A | 740 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 175°C | - | - | Through Hole | TO-220 |
|
FFH30US30DNDIODE ARR AVAL 300V 30A TO247-3 |
2,825 |
|
Datasheet | Stealth™ | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Avalanche | 300 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 100 µA @ 300 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
SBR100-16JSDIODE ARR SCHOT 160V 10A TO220ML |
5,361 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 160 V | 10A | 800 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 160 V | -55°C ~ 150°C | - | - | Through Hole | TO-220ML |
|
|
MBR4015CTLDIODE ARRAY SCHOT 15V 20A TO-220 |
8,327 |
|
Datasheet | SWITCHMODE™ | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 15 V | 20A | 430 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 15 V | -65°C ~ 150°C | - | - | Through Hole | TO-220 |
|
MBRD630CTT4GDIODE ARRAY SCHOTTKY 30V 3A DPAK |
1 |
|
Datasheet | SWITCHMODE™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 3A | 700 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | -65°C ~ 175°C | - | - | Surface Mount | DPAK |
|
|
SBT150-06JDIODE ARR SCHOTT 60V 15A TO220ML |
7,554 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 15A | 580 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 30 V | -55°C ~ 150°C | - | - | Through Hole | TO-220ML |
|
|
SBR100-10JDIODE ARR SCHOT 100V 10A TO220ML |
2,791 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 50 V | -55°C ~ 150°C | - | - | Through Hole | TO-220ML |
|

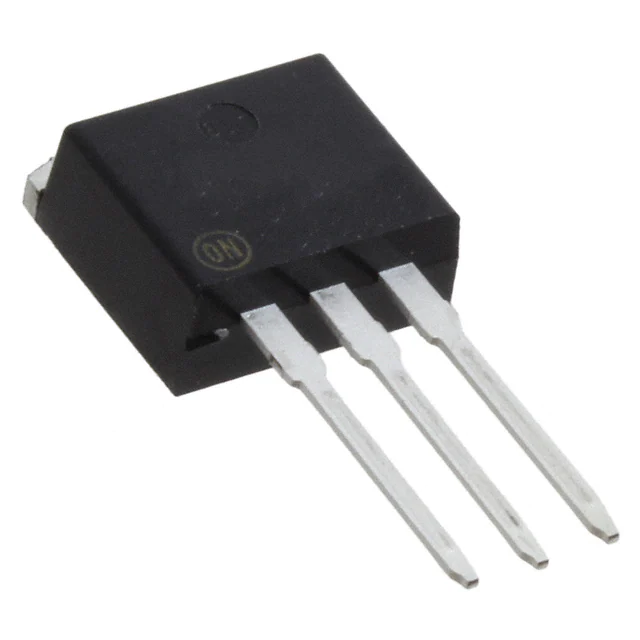

NTSB20120CT-1GDIODE ARRAY SCHOT 120V 10A TO262 |
392 |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 10A | 1.1 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 120 V | -40°C ~ 150°C | - | - | Through Hole | TO-262 (I2PAK) |
|
|
SBT100-16JSDIODE ARR SCHOT 160V 10A TO220ML |
5,294 |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 160 V | 10A | 880 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 160 V | -55°C ~ 150°C | - | - | Through Hole | TO-220ML |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
