Diode Arrays

Explore Diode Arrays parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.

For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
85CNQ015SL DIODE ARR SCHOTT 15V 40A PRM2-SL SMC Diode Solutions	1,765	RFQ	Datasheet	-	PRM2-SL	Bulk	Active	1 Pair Common Cathode	Schottky	15 V	40A	450 mV @ 40 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 mA @ 15 V	-55°C ~ 125°C	-	-	Surface Mount	PRM2-SL
NDSH40120CDN DIODE ARR SIC 1200V 20A TO247-3 onsemi	260	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	20A	1.75 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	-55°C ~ 175°C	-	-	Through Hole	TO-247-3
C4D30120D DIODE ARR SIC 1200V 44A TO247-3 Wolfspeed, Inc.	397	RFQ	Datasheet	Z-Rec®	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	44A (DC)	1.8 V @ 15 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	-55°C ~ 175°C	-	-	Through Hole	TO-247-3
SCS220KE2GC11 DIODE ARR SIC 1200V 10A TO-247N Rohm Semiconductor	800	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	10A (DC)	1.6 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	175°C	-	-	Through Hole	TO-247N
83CNQ080S2 DIODE MODULE SCHOTT 80V 80A PRM2 SMC Diode Solutions	489	RFQ	Datasheet	-	PRM2	Bulk	Active	1 Pair Common Cathode	Schottky	80 V	80A	1 V @ 80 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.5 mA @ 80 V	-55°C ~ 175°C	-	-	Chassis Mount	PRM2
STPSC40H12CWY DIODE ARRAY SIC 1200V 20A TO-247 STMicroelectronics	155	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	20A	1.5 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	120 µA @ 1200 V	-40°C ~ 175°C	Automotive	AEC-Q101	Through Hole	TO-247
E4D20120D DIODE ARR SIC 1200V 33A TO247-3 Wolfspeed, Inc.	215	RFQ	Datasheet	E-Series	TO-247-3	Tube	Last Time Buy	1 Pair Common Anode	SiC (Silicon Carbide) Schottky	1200 V	33A	1.8 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	-55°C ~ 175°C	Automotive	-	Through Hole	TO-247-3
SCS240KE2HRC11 DIODE ARRAY SIC 1200V 20A TO-247 Rohm Semiconductor	401	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	20A (DC)	1.6 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	400 µA @ 1200 V	175°C (Max)	-	-	Through Hole	TO-247

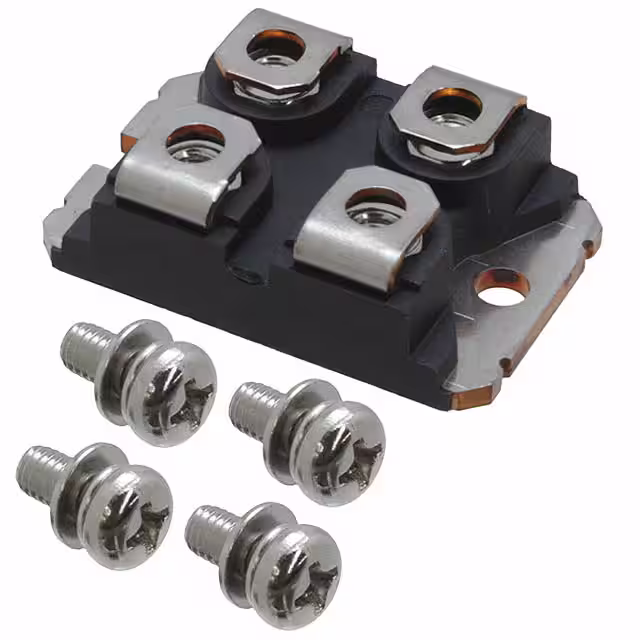

VS-UFB130FA20 DIODE MODULE GP 200V 65A SOT-227 Vishay General Semiconductor - Diodes Division	104	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	200 V	65A (DC)	1.13 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	42 ns	50 µA @ 200 V	-	-	-	Chassis Mount	SOT-227
APT2X60S20J DIODE MOD SCHOTT 200V 75A SOT227 Microchip Technology	167	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Schottky	200 V	75A	900 mV @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 200 V	-55°C ~ 150°C	-	-	Chassis Mount	SOT-227 (ISOTOP®)
DSEP2X60-12A DIODE MOD GP 1200V 60A SOT227B IXYS	110	RFQ	Datasheet	HiPerFRED™	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	60A	2.42 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	40 ns	1 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
VS-HFA90FA120 DIODE MODULE GP 1200V 45A SOT227 Vishay General Semiconductor - Diodes Division	159	RFQ	Datasheet	HEXFRED®	SOT-227-4, miniBLOC	Tray	Active	2 Independent	Standard	1200 V	45A (DC)	3.3 V @ 40 A	Fast Recovery =< 500ns, > 200mA (Io)	-	75 µA @ 1200 V	-55°C ~ 150°C	-	-	Chassis Mount	SOT-227
MD200A16D2-BP DIODE MODULE GP 1600V 200A D2 Micro Commercial Co	76	RFQ	Datasheet	-	D2	Bulk	Active	1 Pair Common Anode	Standard	1600 V	200A	1.3 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	9 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	D2
MBR2X080A045 DIODE MOD SCHOTT 45V 80A SOT-227 GeneSiC Semiconductor	29	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Bulk	Active	2 Independent	Schottky	45 V	80A	700 mV @ 80 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 45 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227
209CMQ150 DIODE MOD SCHOTT 150V 100A PRM4 SMC Diode Solutions	29	RFQ	Datasheet	-	PRM4	Bulk	Active	1 Pair Common Cathode	Schottky	150 V	100A	1.03 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 mA @ 150 V	-55°C ~ 175°C	-	-	Chassis Mount	PRM4 (Isolated)
409CNQ150 DIODE MODULE SCHOTTKY 150V PRM4 SMC Diode Solutions	121	RFQ	Datasheet	-	PRM4	Bulk	Active	1 Pair Common Cathode	Schottky	150 V	-	1.03 V @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	6 mA @ 150 V	-55°C ~ 150°C	-	-	Chassis Mount	PRM4 (Isolated)
PD100KN8 DIODE MODULE GP 800V 100A MODULE KYOCERA AVX	31	RFQ	Datasheet	-	Module	Bulk	Active	1 Pair Series Connection	Standard	800 V	100A	1.41 V @ 320 A	Standard Recovery >500ns, > 200mA (Io)	-	7 mA @ 800 V	-40°C ~ 150°C	-	-	Chassis Mount	Module
LSIC2SD120N80PA DIODE MOD SIC 1200V 75A SOT227B IXYS	100	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	SiC (Silicon Carbide) Schottky	1200 V	75A (DC)	1.8 V @ 40 A	No Recovery Time > 500mA (Io)	0 ns	100 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227B - miniBLOC
MD18200S-DKM2MM DIODE MODULE GP 1800V 200A S3 Littelfuse Inc.	178	RFQ	Datasheet	-	S-3 Module	Bulk	Active	1 Pair Common Cathode	Standard	1800 V	200A	1.5 V @ 600 A	Standard Recovery >500ns, > 200mA (Io)	-	500 µA @ 1800 V	-40°C ~ 150°C	-	-	Chassis Mount	S3
FST16035 DIODE MOD SCHOT 35V 160A TO249AB GeneSiC Semiconductor	28	RFQ	Datasheet	-	TO-249AB	Bulk	Active	1 Pair Common Cathode	Schottky	35 V	160A	750 mV @ 160 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 20 V	-55°C ~ 150°C	-	-	Chassis Mount	TO-249AB

FAQ

Frequently Asked Questions

What are Diode Arrays components used for?

Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.

How do I choose the right Diode Arrays part?

Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.

Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?

Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.

How can I request pricing and availability?

Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
