Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSRT150120DDIODE MOD GP 1200V 150A 3TOWER |
5,768 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1200 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1200 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT15060DDIODE MODULE GP 600V 150A 3TOWER |
8,731 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 600 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 600 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT15080DDIODE MODULE GP 800V 150A 3TOWER |
8,352 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 800 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 800 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150100DDIODE MOD GP 1000V 150A 3TOWER |
5,567 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1000 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150140DDIODE MOD GP 1400V 150A 3TOWER |
8,780 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1400 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1400 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MSRT150160DDIODE MOD GP 1600V 150A 3TOWER |
9,200 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Series Connection | Standard | 1600 V | 150A | 1.1 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
MBRT20035RDIODE MOD SCHOTT 35V 100A 3TOWER |
9,660 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT20040RDIODE MOD SCHOTT 40V 100A 3TOWER |
2,701 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 40 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|

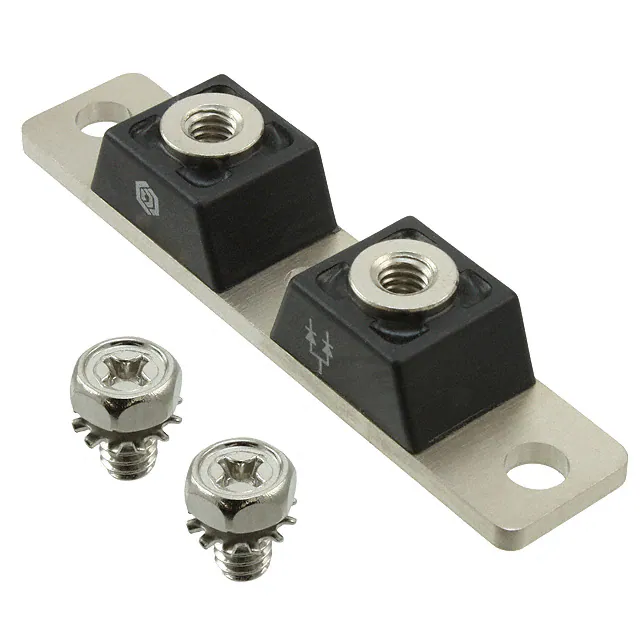

MBR40035CTRDIODE MOD SCHOTT 35V 200A 2TOWER |
6,525 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 35 V | 200A | 700 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBRT20035DIODE MOD SCHOTT 35V 100A 3TOWER |
6,521 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
