Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MUR10040CTRDIODE MODULE GP 400V 50A 2TOWER |
3,437 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Standard | 400 V | 50A | 1.3 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
FST160150DIODE MOD SCHOT 150V 80A TO249AB |
5,857 |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 80A | 880 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST160200DIODE MOD SCHOT 200V 80A TO249AB |
8,974 |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 80A | 920 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
MBRT120200DIODE MOD SCHOTT 200V 60A 3TOWER |
9,297 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 60A | 920 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT120200RDIODE MOD SCHOTT 200V 60A 3TOWER |
9,565 |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 200 V | 60A | 920 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|

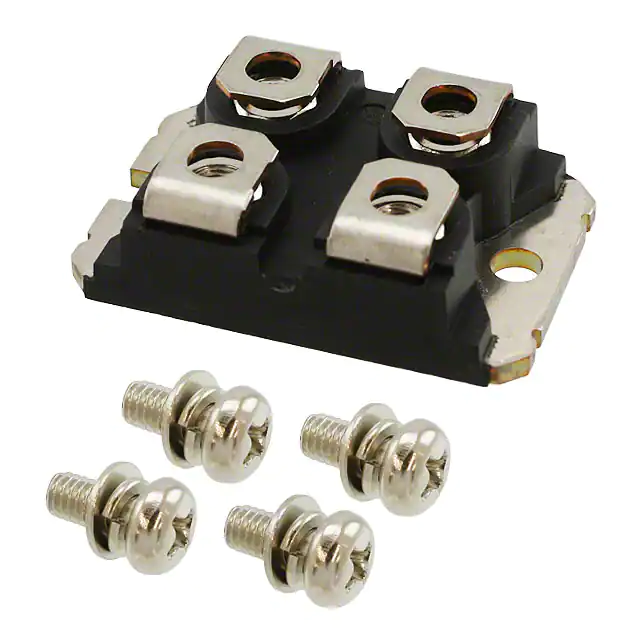

MBR40045CTSDIODE MOD SCHOTT 45V 400A SOT227 |
3,561 |
|
Datasheet | - | SOT-227-4 | Bulk | Obsolete | 2 Independent | Schottky | 45 V | 400A (DC) | 1.2 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 36 V | -40°C ~ 175°C | - | - | Screw Mount | SOT-227 |
|
|
MBRT30080DIODE MOD SCHOTT 80V 150A 3TOWER |
9,059 |
|
Datasheet | - | Three Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 150A | 880 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT30080RDIODE MOD SCHOTT 80V 150A 3TOWER |
8,610 |
|
Datasheet | - | Three Tower | Bulk | Obsolete | 1 Pair Common Anode | Schottky | 80 V | 150A | 880 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MUR20005CTDIODE MODULE GP 50V 100A 2TOWER |
5,876 |
|
Datasheet | - | Twin Tower | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MUR20005CTRDIODE MODULE GP 50V 100A 2TOWER |
9,550 |
|
Datasheet | - | Twin Tower | Bulk | Obsolete | 1 Pair Common Anode | Standard | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
