Diode Arrays
Review Diode Arrays Rectifiers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FST10045DIODE MOD SCHOT 45V 100A TO249AB |
9,197 |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST10060DIODE MOD SCHOT 60V 100A TO249AB |
3,666 |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST10080DIODE MOD SCHOT 80V 100A TO249AB |
4,738 |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 80 V | 100A | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST100150DIODE MOD SCHOT 150V 50A TO249AB |
2,696 |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 50A | 880 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 155°C | - | - | Chassis Mount | TO-249AB |
|
|
FST100200DIODE MOD SCHOT 200V 50A TO249AB |
5,266 |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 50A | 920 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|

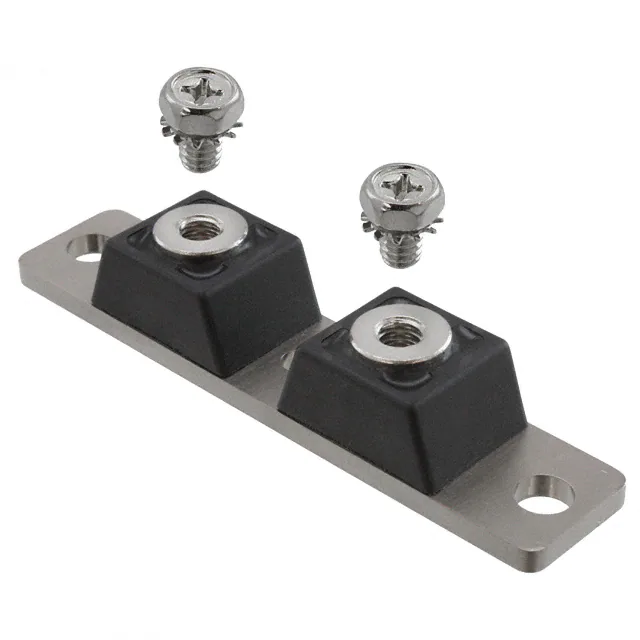

MBR12040CTDIODE MOD SCHOTT 40V 120A 2TOWER |
8,644 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|

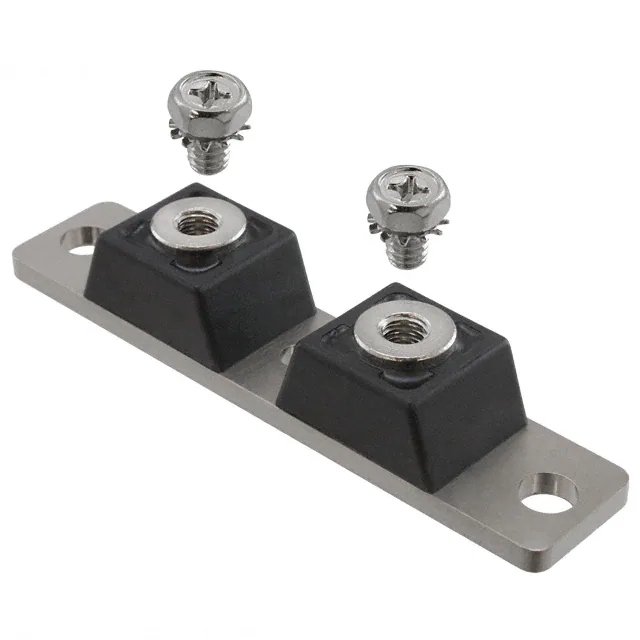

MBR12040CTRDIODE MOD SCHOTT 40V 120A 2TOWER |
7,868 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 40 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
MBR12060CTDIODE MOD SCHOTT 60V 120A 2TOWER |
3,406 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 60 V | 120A (DC) | 750 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12045CTDIODE MOD SCHOTT 45V 120A 2TOWER |
7,426 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MBR12045CTRDIODE MOD SCHOTT 45V 120A 2TOWER |
8,915 |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 45 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
Frequently Asked Questions
What are Diode Arrays components used for?
Diode Arrays components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Diode Arrays part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Diode Arrays parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
