Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

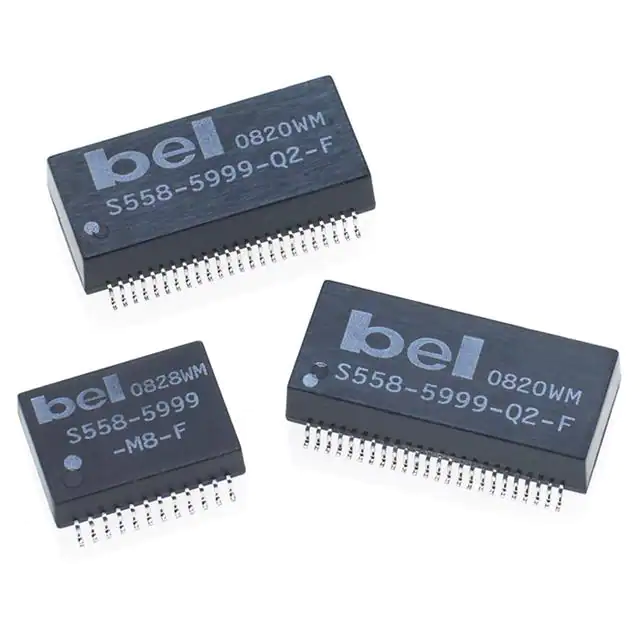

S558-5999-AA-FMODULE XFRMR LAN 10/100B-TX SMD |
1,180 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.476" W (27.94mm x 12.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
S558-5500-JVXFRMR LAN 5G 60W POE SMD |
760 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1CT:1CT | Surface Mount | 0.690" L x 0.600" W (17.53mm x 15.24mm) | 0.225" (5.71mm) | -40°C ~ 85°C | - | - |
|
S558-5999-AN-FMODULE XFRMR GIGABIT MINIPCI SMD |
1,441 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.880" L x 0.540" W (22.35mm x 13.72mm) | 0.084" (2.13mm) | 0°C ~ 70°C | - | - |
|
|
S558-5500-72TRANSFORMER PULSE |
450 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | - | - | - |
|

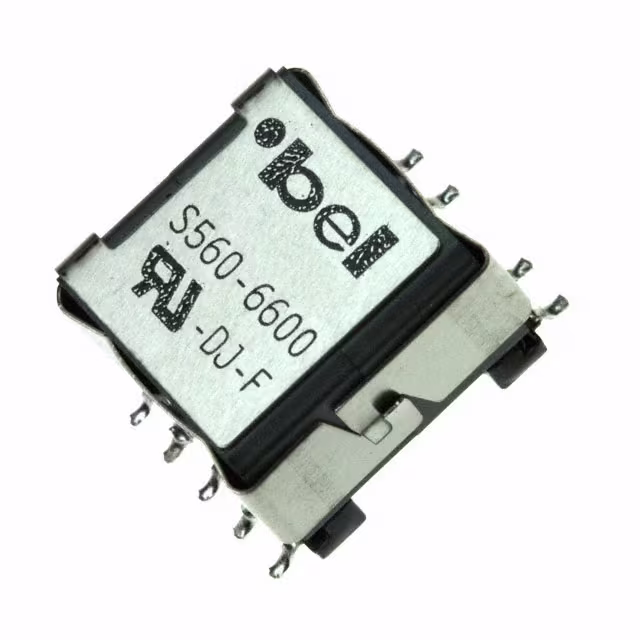

S560-6600-DJ-FMODULE XFRMR LAN SHDSL ISOL SMD |
600 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SHDSL | 3mH | - | 1:5.4 | Surface Mount | 0.540" L x 0.585" W (13.72mm x 14.86mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
S558-5500-JBMODULE XFRMR LAN 1G 2.5G POE SMD |
4,196 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1/2.5 GBase-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.19mm) | 0.225" (5.71mm) | -40°C ~ 85°C | - | - |
|
S558-10GB-23MODULE XFRMR LAN 10G POE SMD |
2,477 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.610" L x 0.480" W (15.49mm x 12.19mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
S558-5999-Z5-FMODULE XFRMR LAN 10/100B-TX SMD |
1,192 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
S558-5500-68XFRMR MODULE LAN 10/100BT SMD |
3,911 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
S558-5999-BQ-FMODULE TRANSFORMER |
2,746 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | - | - | - |
