Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750510436DIGITAL TRANSFORMER ; EE13/7/4 ( |
260 |
|
Datasheet | MID-PLC | Tray | Active | General Purpose | 1.1mH | - | 1.5:1 | Through Hole | - | 0.400" (10.16mm) | - | - | - |
|
|
749080010WE-LAN 2.5G/5G BASE-T SMT TRANSF |
389 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 200µH | - | 1:1 | Surface Mount | 0.550" L x 0.472" W (13.97mm x 12.00mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
74901401810/100 BASE-T SMD TRANSFORMER 1 |
3,124 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.341" (8.65mm) | 0°C ~ 70°C | - | - |
|
749010310PULSE XFMR 1:1 300UH |
1,552 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.341" W (12.70mm x 8.66mm) | 0.167" (4.25mm) | -40°C ~ 85°C | - | - |
|
|
749082010WE-LAN 2.5G/5G BASE-T SMT TRANSF |
1,356 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | -40°C ~ 85°C | - | - |
|
750110007TRANS ANALOG MODE SMART DAA SMD |
4,264 |
|
Datasheet | WE-AMT, MID-DAA | Tape & Reel (TR) | Active | - | 30µH | - | 1.67:1 | Surface Mount | 0.173" L x 0.360" W (4.39mm x 9.14mm) | 0.078" (1.98mm) | - | - | - |
|

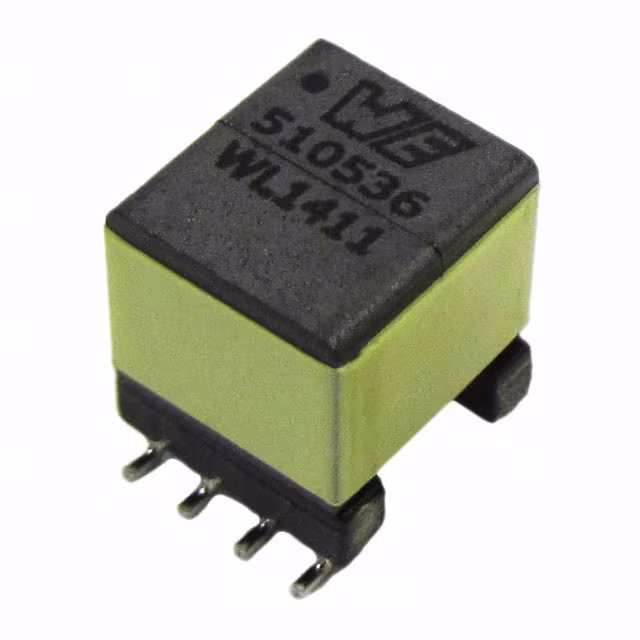

750510536WE-DSL TRANSFORMER |
3,419 |
|
Datasheet | MID-DSLITL | Tape & Reel (TR) | Active | ADSL | 1.44mH | - | 1.31:1 | Surface Mount | 0.310" L x 0.355" W (7.87mm x 9.02mm) | 0.400" (10.16mm) | -40°C ~ 85°C | - | - |
|
750510165XFRM VX180-IFE6 POTS DAUGHTERBRD |
3,810 |
|
Datasheet | MID-DSLIKN | Tape & Reel (TR) | Active | VDSL | 1.2mH | - | 3:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.415" (10.54mm) | -40°C ~ 85°C | - | - |
|

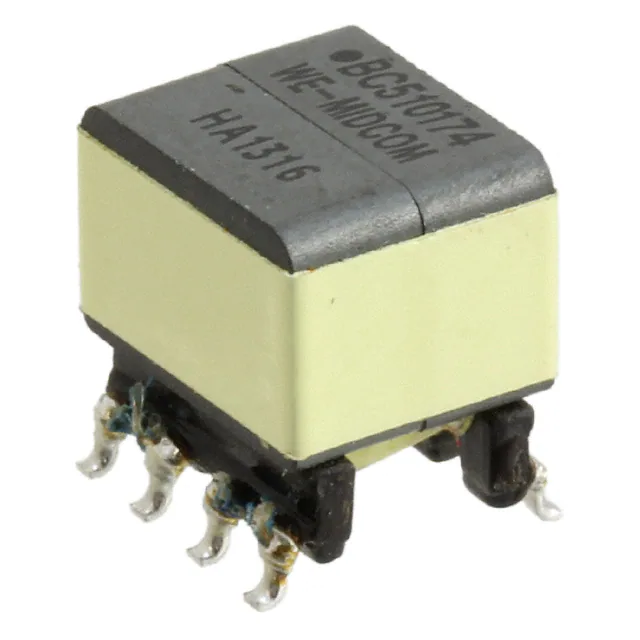

750510174XFRM VX180-IFE6 ISDN DAUGHTERBRD |
1,448 |
|
Datasheet | MID-DSLIKN | Tape & Reel (TR) | Obsolete | VDSL | 150µH | - | 3.17:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.415" (10.54mm) | -40°C ~ 85°C | - | - |
|
7490100110TRANSFORMER LAN 10/100 SMD |
4,606 |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | - | - | 0°C ~ 70°C | - | - |
Frequently Asked Questions
What are Pulse Transformers components used for?
Pulse Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pulse Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pulse Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
