Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

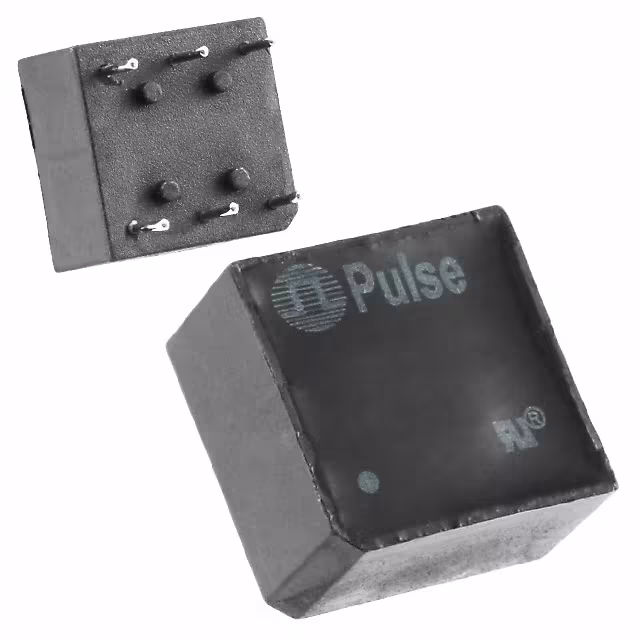

PE-65835NLXFRMR 1CT:2CT 1.20MH T/H |
514 |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:2CT | Through Hole | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
H5015FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
150 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.695" L x 0.596" W (17.66mm x 15.14mm) | 0.180" (4.57mm) | 0°C ~ 70°C | - | - |
|
|
HB4012HLTMOD DUAL 2.5GD 1:1 HF SMD |
350 |
|
Datasheet | HB4 | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 180µH | - | - | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.283" (7.20mm) | 0°C ~ 70°C | - | - |
|
|
HB6012HLTMOD DUAL 1GPP 1:1 HF SMD |
350 |
|
Datasheet | HB6 | Tape & Reel (TR) | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.283" (7.20mm) | 0°C ~ 70°C | - | - |
|
|
HX1344NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
600 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 100 Base-TX | 350µH | - | 1:1 | Surface Mount | 1.106" L x 0.480" W (28.10mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
NA0069R LFMDL 1G SINGLE PORT N/A |
1,167 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.614" L x 0.335" W (15.60mm x 8.50mm) | 0.091" (2.30mm) | 0°C ~ 70°C | - | - |
|
|
24HSS1041A-2 HFMDL LAN 1GBT POE 60W SMD |
659 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1 | Surface Mount | 0.701" L x 0.480" W (17.80mm x 12.20mm) | 0.315" (8.00mm) | 0°C ~ 70°C | - | - |
|
|
HX2305NLXFRMR MODUL 2PORT POE 1:1 10/100 |
350 |
|
Datasheet | Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | -40°C ~ 85°C | - | - |
|
|
GST5009BM LFMDL 1G SINGLE PORT N/A |
550 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.157" (4.00mm) | -40°C ~ 85°C | - | - |
|
|
HB5613NLMOD QUAD 1GP 1:1 HF 72P |
350 |
|
Datasheet | HB5 | Tube | Active | LAN 1/5/10G Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.358" L x 0.748" W (34.50mm x 19.00mm) | 0.409" (10.40mm) | 0°C ~ 70°C | - | - |
