| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1105NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
1,654 |
|
Datasheet | - | Tube | Obsolete | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:2CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
T1065NLXFRMR 4PORT 1:2CT 1.2MH SMD |
2,430 |
|
Datasheet | - | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:2CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TX1266NLXFRMR 4PORT 1:2 1.2MH SMD |
2,187 |
|
Datasheet | - | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
B6105NLTRANSFORMER HOME PHONE NETWORKNG |
2,645 |
|
Datasheet | - | Tube | Active | Data/Voice Coupling | 177µH | - | 1.33:1 | Surface Mount | 0.210" L x 0.330" W (5.33mm x 8.38mm) | 0.157" (3.99mm) | -40°C ~ 85°C | - | - |
|
|
BX1194WNLXFRMR SHDSL FOR INFINEON CHIPSET |
1,663 |
|
Datasheet | - | Tray | Obsolete | SHDSL | 3mH | - | 4.5:1 | Surface Mount | 0.530" L x 0.555" W (13.46mm x 14.10mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
23Z91SMNLXFRMR AUI ETHERNET LAN 16SOIC |
3,382 |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 100µH | 2.4VµS | 1:1 | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

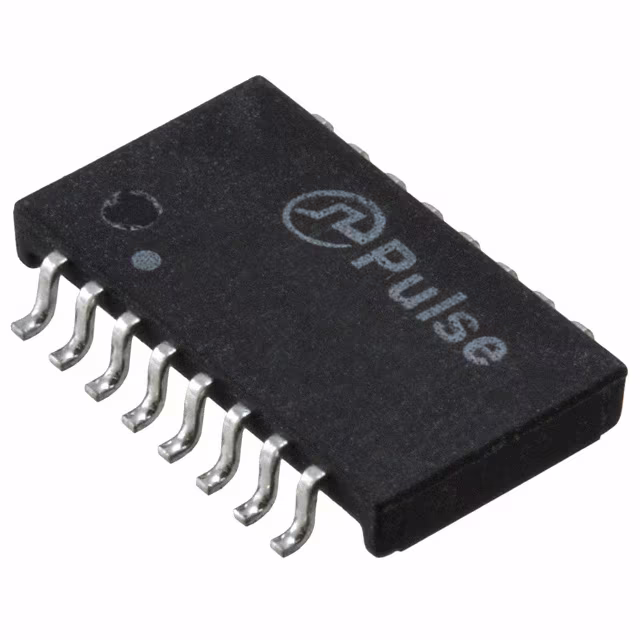

H0056NLXFRMR MODULE 1PORT 1:1 10/100 |
2,923 |
|
Datasheet | Star Magnetics™ | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 300µH | - | 1:1 | Surface Mount | 0.504" L x 0.280" W (12.80mm x 7.11mm) | 0.088" (2.24mm) | 0°C ~ 70°C | - | - |
|
|
PE-68056QNLMODULE INTERFACE 10BASE-T SMD |
3,468 |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H1138NLXFRMR MODULE 1PORT 1:1 10/100 |
3,573 |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
H1101NLXFRMR MAGNTC 1PORT 1.25:1 10/100 |
2,460 |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1.25:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
