Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1200NLMODULE TRANSFRMR DUAL LAN 10/100 |
2,660 |
|
Datasheet | - | Tray | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

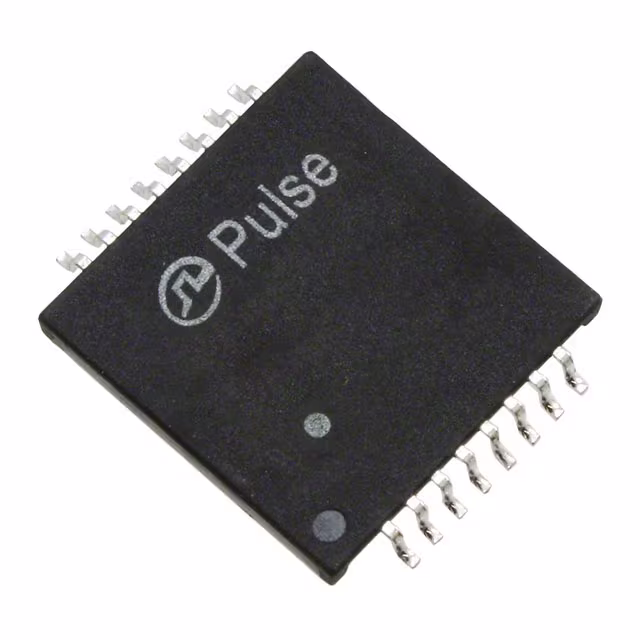

H0009NLMODULE PC CARD SNGL LAN 16PCMCIA |
2,179 |
|
Datasheet | - | Tube | Obsolete | - | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
H0019NLMODULE PC CARD SNGL LAN 16PCMCIA |
1,914 |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | - | - |
|

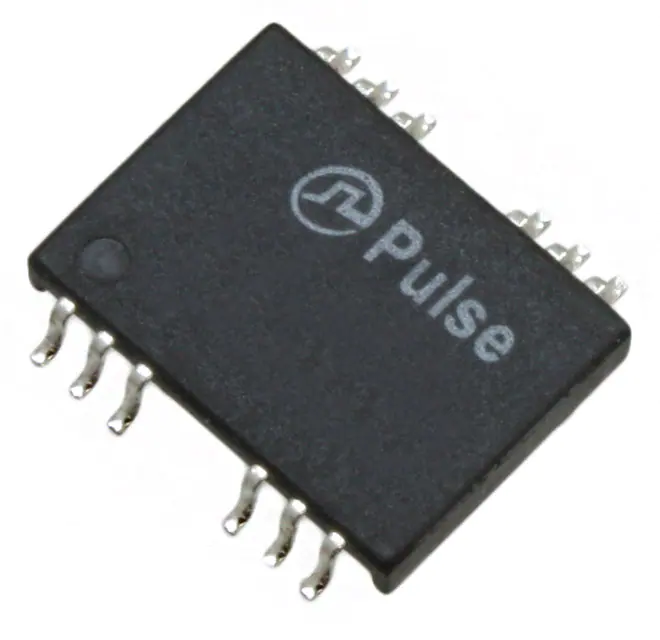

H0022NLMODULE PC CARD SNGL LAN 12PCMCIA |
2,034 |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.465" L x 0.340" W (11.81mm x 8.63mm) | 0.085" (2.16mm) | 0°C ~ 70°C | - | - |
|
|
H1060NLMODULE XFRMR QUAD ETHR LAN40SOIC |
3,427 |
|
Datasheet | - | Bulk | Active | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H1174NLMODULE XFRMR DUAL ETHER LAN 24P |
2,036 |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.512" L x 0.500" W (13.08mm x 12.70mm) | 0.155" (3.93mm) | 0°C ~ 70°C | - | - |
|

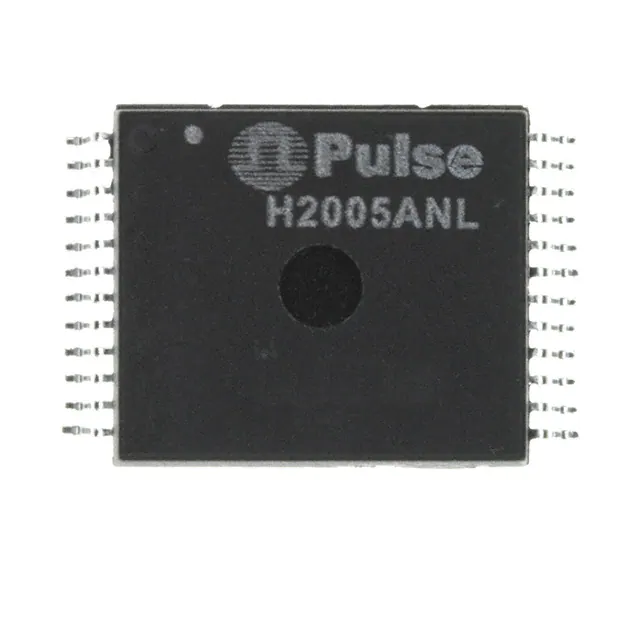

H2005ANLMODULE XFRMR VOIP DL LAN 24-SOIC |
2,898 |
|
Datasheet | - | Tube | Active | LAN | - | - | 1CT:1CT | Surface Mount | 0.510" L x 0.600" W (12.95mm x 15.24mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
|
H2008NLMODULE XFRMR VOIP DL LAN 24-SOIC |
3,381 |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|
H5012NLMODULE DL GIGABIT ETHER LAN 48P |
3,215 |
|
Datasheet | - | Bulk | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
PA1672NLPULSE XFMR 1:4 7.75UH |
4,930 |
|
Datasheet | - | - | Obsolete | - | 7.75µH | - | 1:4 | Surface Mount | 0.930" L x 0.860" W (23.62mm x 21.84mm) | 0.450" (11.43mm) | -40°C ~ 130°C | - | - |
Frequently Asked Questions
What are Pulse Transformers components used for?
Pulse Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pulse Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pulse Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
