Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QGU4629RADIP 5G 4 PORT POE 60W |
1,301 |
|
Datasheet | - | Tube | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | 0°C ~ 70°C | - | - |
|
H5012NLTMODULE DL GIGABIT ETHER LAN 48P |
2,171 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
TX3051TPULSE XFMR 1:1 60UH |
2,238 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | T3/E3 (Twelve) | 60µH | - | 1:1 | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.280" (7.11mm) | -40°C ~ 85°C | - | - |
|

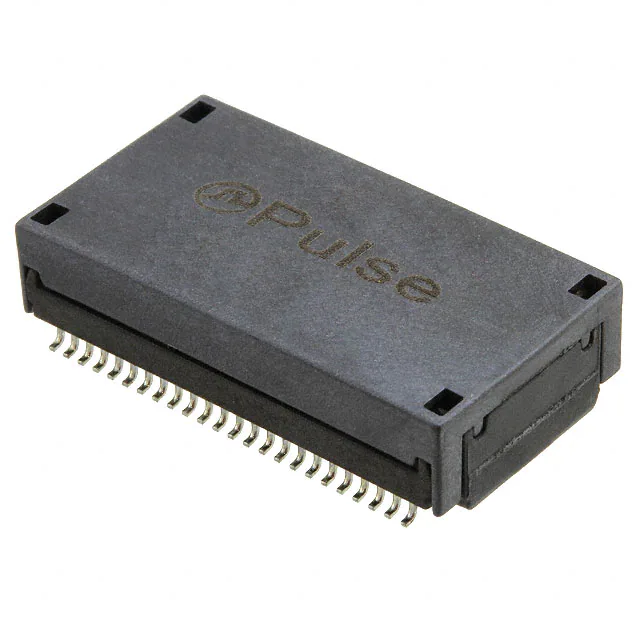

H5012FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,818 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
|
T4PH04RVMDL 10G 4 PORT POE 90W |
1,450 |
|
Datasheet | - | Tube | Active | LAN 10 Base-T | 120µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 105°C | - | - |
|
|
T4PH04RTMDL 10G 4 PORT POE 90W |
4,197 |
|
Datasheet | - | Tube | Active | LAN 10 Base-T | 100µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 90°C | - | - |
|
|
HXB7603NLMOD QUAD 10GD EXT. HF 96P |
1,691 |
|
Datasheet | HXB | Tube | Discontinued at Digi-Key | LAN 1/5/10G Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 90°C | - | - |
|
|
HXB7601NLMOD QUAD 10GPP EXT. HF 96P |
4,248 |
|
Datasheet | HXB | Tube | Discontinued at Digi-Key | LAN 1/5/10G Base-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 90°C | - | - |
|
|
HXB7602NLMOD QUAD 10GPP EXT. HF 96P |
1,650 |
|
Datasheet | HXB | Tube | Discontinued at Digi-Key | LAN 1/5/10G Base-T, Power over Ethernet (PoE) | 100µH | - | 1CT:1CT | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 105°C | - | - |
|
|
TX9031NLTTRANSFORMER 1500VRMS 1CT:2.4 SMD |
1,697 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | T1/E1 (Quad) | 1.2mH | - | 1CT:2.4 Transmitter, 1:1CT Receiver | Surface Mount | 1.255" L x 0.712" W (31.88mm x 18.08mm) | 0.315" (8.00mm) | - | - | - |
Frequently Asked Questions
What are Pulse Transformers components used for?
Pulse Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pulse Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pulse Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
