Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALAN-1002-TPULSE XFMR 1CT:1 350UH |
1,381 |
|
Datasheet | ALAN-1002 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.219" (5.55mm) | -40°C ~ 85°C | - | - |
|
ALAN110001-4J61DT10/100/1000BASE-T LAN XFMR POE |
4,286 |
|
Datasheet | ALAN110001-4 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.610" L x 0.549" W (15.49mm x 13.95mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
ALAN-2202PULSE XFMR 1CT:1CT 350UH |
4,456 |
|
Datasheet | ALAN-2202 | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.234" (5.95mm) | -40°C ~ 85°C | - | - |
|
ALANS10001-4J11ETLAN SGL 1000B XFMR&CMC 24PIN |
4,600 |
|
Datasheet | ALANS10001-4 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | - | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
ALAN-2301-TPULSE XFMR 1CT:1CT 350UH |
2,650 |
|
Datasheet | ALAN-2301 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.219" (5.55mm) | -40°C ~ 85°C | - | - |
|
|
ALAN-2302-TPULSE XFMR 1CT:1CT 350UH |
1,686 |
|
Datasheet | ALAN-2302 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.219" (5.55mm) | -40°C ~ 85°C | - | - |
|
|
ALANS10002-6NA1ETDUAL 10/100/1000BASE-T LAN XFMR |
3,481 |
|
Datasheet | ALANS10002 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|

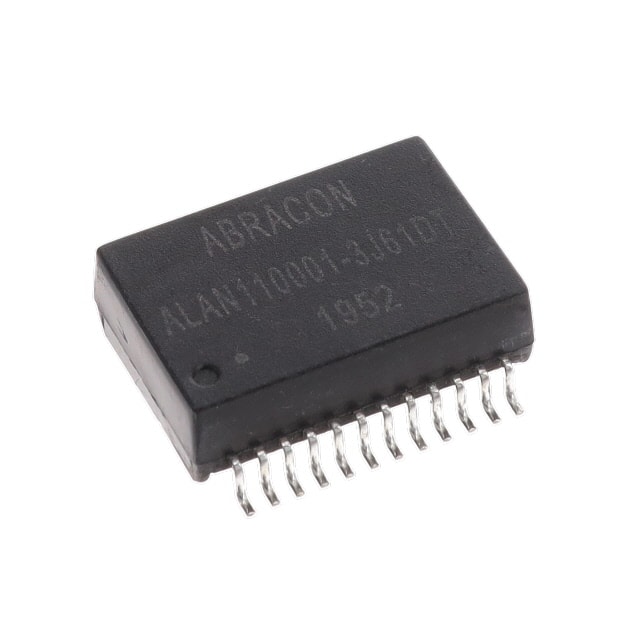

ALAN110001-3J61DTXFRMR LAN 1CT:1CT 350UH |
1,418 |
|
Datasheet | ALAN110001-3 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.724" L x 0.490" W (18.38mm x 12.44mm) | 0.254" (6.45mm) | -40°C ~ 85°C | - | - |
|
ALAN-409PULSE XFMR 1CT:1CT 350UH |
4,269 |
|
Datasheet | ALAN-409 | Strip | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.085" L x 0.525" W (27.55mm x 13.34mm) | 0.304" (7.73mm) | -40°C ~ 85°C | - | - |
|
|
ALAN-2302PULSE XFMR 1CT:1CT 350UH |
4,841 |
|
Datasheet | ALAN-2302 | Strip | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.219" (5.55mm) | -40°C ~ 85°C | - | - |
Frequently Asked Questions
What are Pulse Transformers components used for?
Pulse Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pulse Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pulse Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
