PTC Resettable Fuses
Explore PTC Resettable Fuses parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B59850C0160A070PTC RESET FUSE 160V 250MA RADIAL |
119 |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 160V | 250 mA | 500 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
B59870C0120A051PTC RESET FUSE 265V 100MA RADIAL |
10,321 |
|
Datasheet | Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 100 mA | 200 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
|
B59873C0120A051PTC RESET FUSE 265V 70MA RADIAL |
4,000 |
|
Datasheet | Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 70 mA | 140 mA | 1 A | - | - | - | 45 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
RHEF1400PTC RESET FUSE 16V 14A RADIAL |
148 |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 14 A | 27 A | 100 A | 13 s | 3 mOhms | 9 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.126" (28.60mm) | - | 0.400" (10.15mm) |
|
16R1000GMRPTC RESET FUSE 16V 10A RADIAL |
3,776 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 16R | Cut Tape (CT) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.992" (25.20mm) | - | 0.201" (5.10mm) |
|
72R185XMRPTC RESET FUSE 72V 1.85A RADIAL |
644 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 72R | Cut Tape (CT) | Active | Polymeric | 72V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.660" Dia x 0.122" T (16.76mm x 3.10mm) | 0.906" (23.00mm) | - | 0.201" (5.10mm) |
|
MF-RHT1300-0PTC RESET FUSE 16V 13A RADIAL |
3,089 |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.215" (5.45mm) |
|
1206L260SLTHYRPTC RESET FUSE 6V 2.6A 1206 |
10,811 |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 50 A | 4 s | 3 mOhms | 26 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|

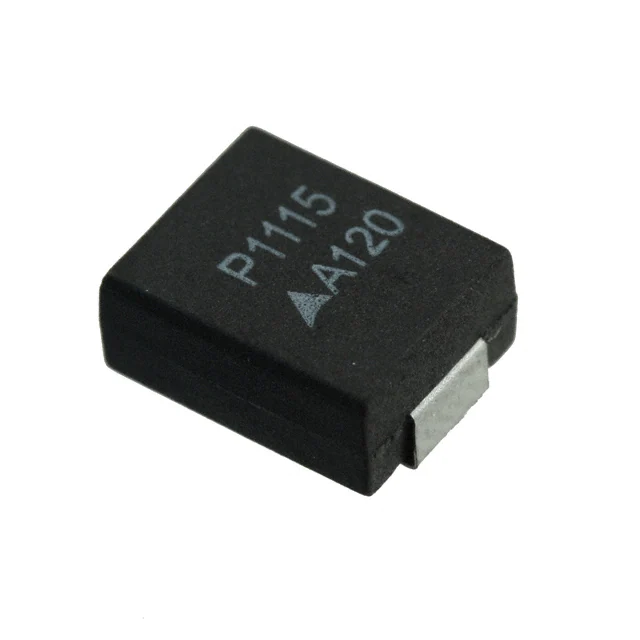

B59115P1120A062PTC RESET FUSE 80V 70MA 3225 |
1,900 |
|
Datasheet | 3225 (8063 Metric) | B59115 | Tape & Reel (TR) | Active | Ceramic | 80V | 70 mA | 145 mA | 700 mA | - | - | - | 55 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
60R250XMRPTC RESET FUSE 60V 2.5A RADIAL |
2,438 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.785" Dia x 0.122" T (19.93mm x 3.10mm) | 1.032" (26.20mm) | - | 0.402" (10.20mm) |
|
YQS5838PTFPTC RESET FUSE 18V 140MA RADIAL |
1,565 |
|
Datasheet | Radial, Disc | PTF | Bulk | Active | Ceramic | 18V | 140 mA | 290 mA | - | - | - | - | 10 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.350" (8.90mm) | - | 0.197" (5.00mm) |
|
B59945C0160A070PTC RESET FUSE 20V 1.5A RADIAL |
2,440 |
|
Datasheet | Radial, Disc | B59945 | Bulk | Active | Ceramic | 20V | 1.5 A | 3.05 A | 8 A | - | - | - | 450 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
|
B59945C0120A070PTC RESET FUSE 30V 1.3A RADIAL |
1,335 |
|
Datasheet | Radial, Disc | B59945 | Bulk | Active | Ceramic | 30V | 1.3 A | 2.6 A | 8 A | - | - | - | 450 mOhms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
1812L350SLPRPTC RESET FUSE 6V 3.5A 1812 |
6,169 |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3.5 A | 8.1 A | 50 A | 5 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
1210L550SLWRPTC RESET FUSE 5.5A 6V 1210 |
1,926 |
|
Datasheet | 1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 5.5 A | 11 A | 50 A | 2 s | 1 mOhms | 11 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|
B59840C0080A070PTC RESET FUSE 265V 170MA RADIAL |
304 |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 265V | 170 mA | 350 mA | 4.1 A | - | - | - | 6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|
YQS5868PTFPTC RESET FUSE 120V 80MA RADIAL |
1,338 |
|
Datasheet | Radial, Disc | PTF | Bulk | Active | Ceramic | 120V | 80 mA | 170 mA | - | - | - | - | 50 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.532" Dia x 0.201" T (13.50mm x 5.10mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
YS5675PTC RESET FUSE 75V 60MA RADIAL |
1,472 |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 75V | 60 mA | 190 mA | - | - | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.270" Dia x 0.170" T (6.86mm x 4.32mm) | 0.270" (6.86mm) | - | 0.250" (6.35mm) |
|
0805L260SLTHYRPTC RESET FUSE 6V 2.6A 0805 |
1,995 |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 50 A | 4 s | 3 mOhms | 35 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
|
B59830C0130A070PTC RESET FUSE 265V 450MA RADIAL |
986 |
|
Datasheet | Radial, Disc | - | Bulk | Active | Ceramic | 265V | 450 mA | 680 mA | 4.1 A | - | - | - | 5 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
Frequently Asked Questions
What are PTC Resettable Fuses components used for?
PTC Resettable Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right PTC Resettable Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
