PTC Resettable Fuses
Review PTC Resettable Fuses Circuit Protection components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

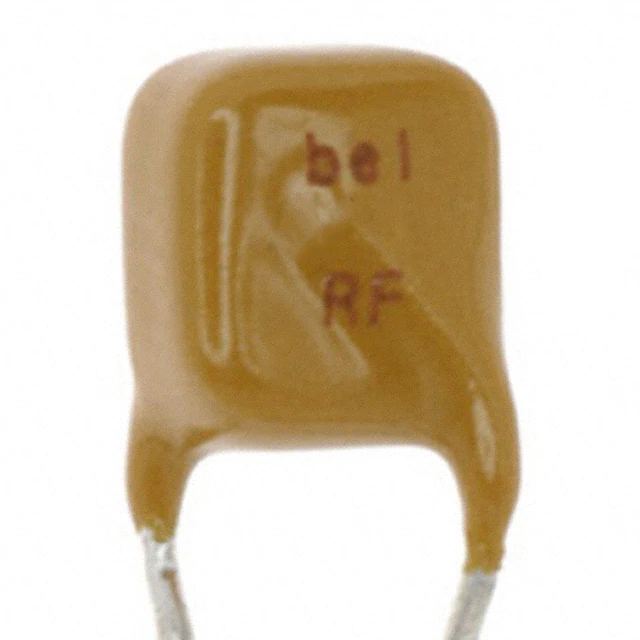

0ZRF0012FF1EPTC RESET FUSE 60V 120MA RADIAL |
5,098 |
|
Datasheet | Radial, Disc | 0ZRF | Box | Active | Polymeric | 60V | 120 mA | 480 mA | 3 A | 2 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|

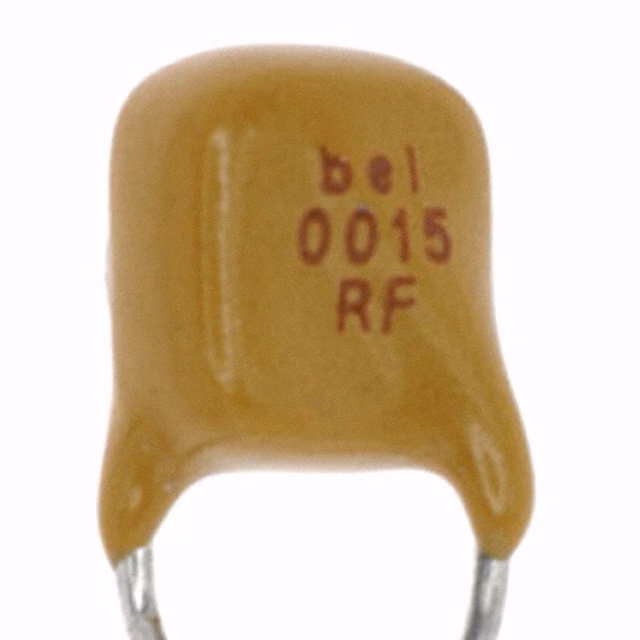

0ZRF0015FF1EPTC RESET FUSE 60V 150MA RADIAL |
6,203 |
|
Datasheet | Radial, Disc | 0ZRF | Box | Active | Polymeric | 60V | 150 mA | 580 mA | 3 A | 2.5 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|

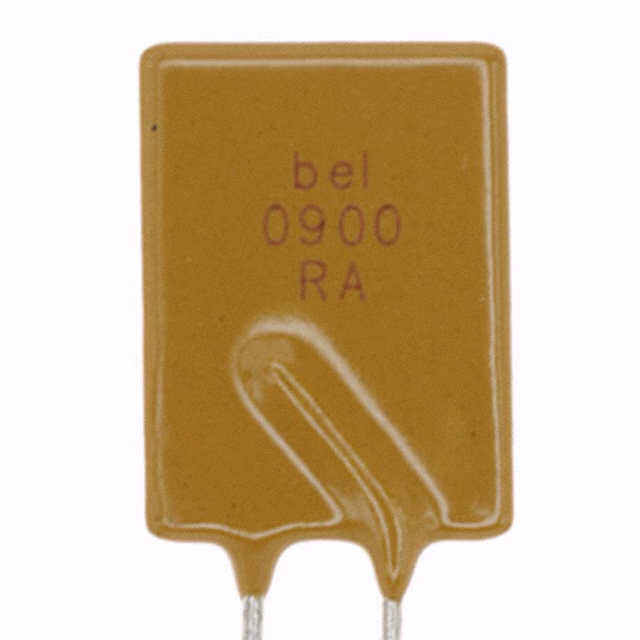

0ZRA0900FF1APTC RESET FUSE 16V 9A RADIAL |
4,827 |
|
Datasheet | Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 12 s | 4 mOhms | 15 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|

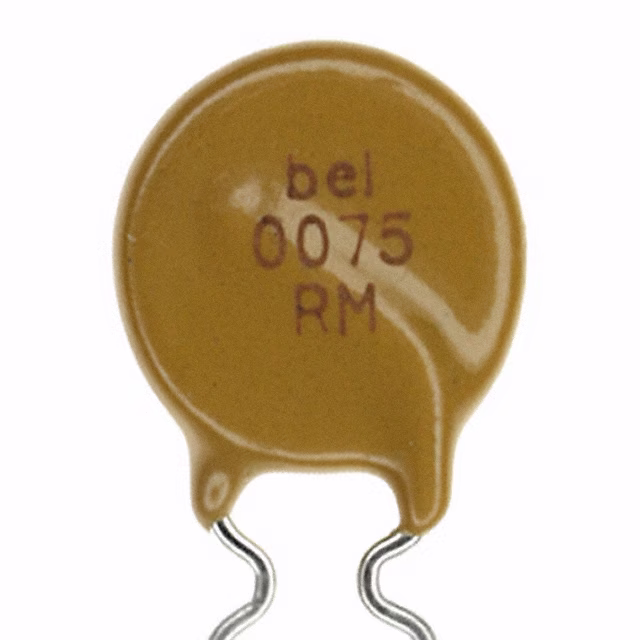

0ZRM0075FF2BPTC RESET FUSE 120V 750MA RADIAL |
9,284 |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 750 mA | 1.5 A | 5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.417" Dia x 0.150" T (10.60mm x 3.80mm) | 0.610" (15.50mm) | - | 0.201" (5.10mm) |
|
0ZRM0075AF2BPTC RESET FUSE 120V 750MA RADIAL |
8,657 |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 750 mA | 1.5 A | 7 A | 15 s | 250 mOhms | 690 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.429" L x 0.161" W (10.90mm x 4.10mm) | 0.669" (17.00mm) | - | 0.201" (5.10mm) |
|
0ZCB0005FF2EPTC RESET FUSE 60V 50MA 1210 |
2,771 |
|
Datasheet | 1210 (3225 Metric) | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 50 mA | 150 mA | 10 A | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.045" (1.15mm) | - |
|
|
0ZCB0075FF2GPTC RESET FUSE 8V 750MA 1210 |
9,882 |
|
Datasheet | 1210 (3225 Metric) | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 750 mA | 1.5 A | 40 A | 100 ms | 130 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|

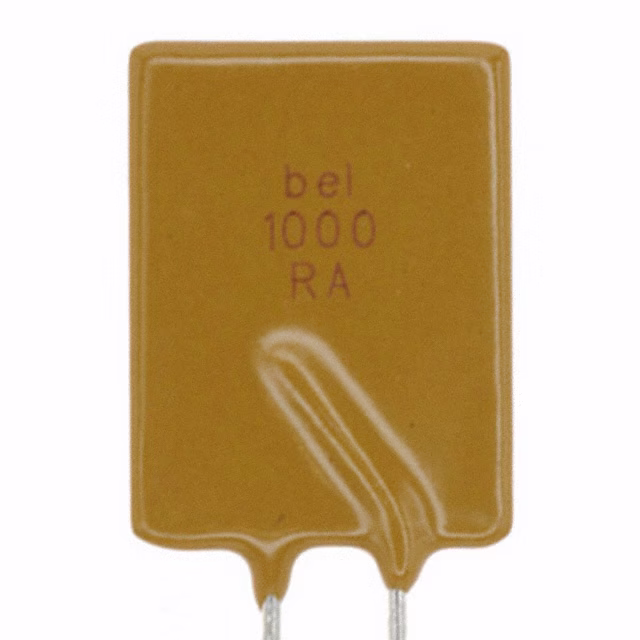

0ZRA1000FF1APTC RESET FUSE 16V 10A RADIAL |
8,442 |
|
Datasheet | Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 12.5 s | 3 mOhms | 12 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.949" (24.10mm) | - | 0.201" (5.10mm) |
|
0ZRF0011FF2BPTC RESET FUSE 60V 110MA RADIAL |
3,901 |
|
Datasheet | Radial, Disc | 0ZRF | Tape & Reel (TR) | Active | Polymeric | 60V | 110 mA | 400 mA | 3 A | 2 s | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.268" L x 0.181" W (6.80mm x 4.60mm) | 0.390" (9.90mm) | - | 0.197" (5.00mm) |
|
|
0ZRF0012FF2BPTC RESET FUSE 60V 120MA RADIAL |
8,952 |
|
Datasheet | Radial, Disc | 0ZRF | Tape & Reel (TR) | Active | Polymeric | 60V | 120 mA | 480 mA | 3 A | 2 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
Frequently Asked Questions
What are PTC Resettable Fuses components used for?
PTC Resettable Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right PTC Resettable Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
