PTC Resettable Fuses
Review PTC Resettable Fuses Circuit Protection components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

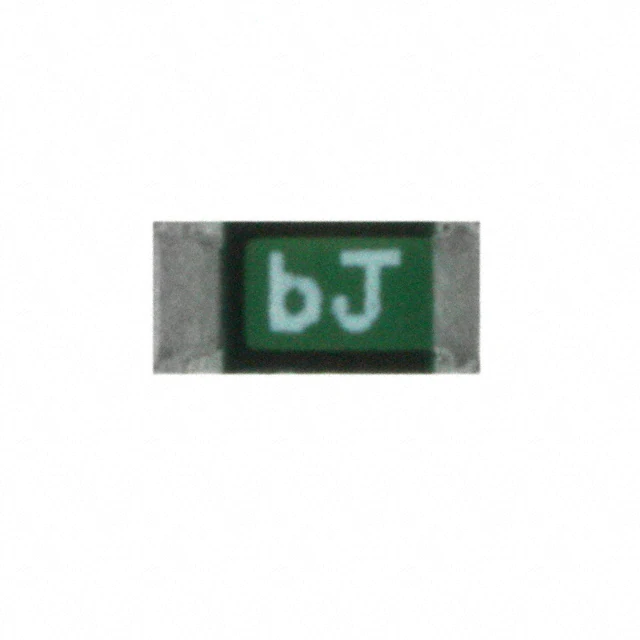

0ZCA0035FF2GPTC RESET FUSE 16V 350MA 1206 |
8,097 |
|
Datasheet | 1206 (3216 Metric) | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 350 mA | 750 mA | 40 A | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
0ZCB0010FF2EPTC RESET FUSE 60V 100MA 1210 |
8,019 |
|
Datasheet | 1210 (3225 Metric) | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 100 mA | 250 mA | 10 A | 1.5 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.045" (1.15mm) | - |
|

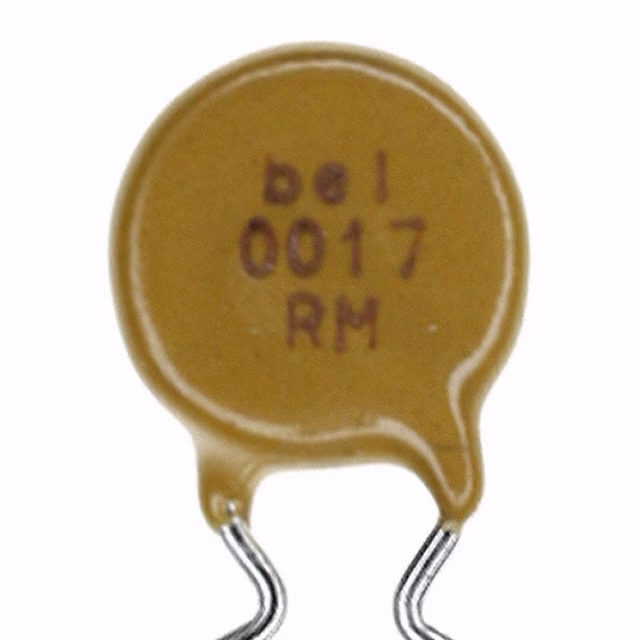

0ZRM0017FF1EPTC RESET FUSE 120V 170MA RADIAL |
8,761 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 170 mA | 340 mA | 2 A | 10 s | 2 Ohms | 7 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|

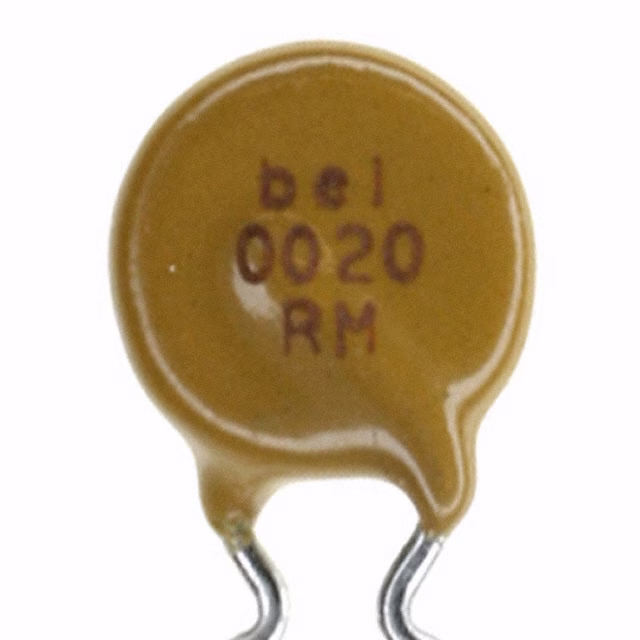

0ZRM0020FF1EPTC RESET FUSE 120V 200MA RADIAL |
7,177 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 200 mA | 400 mA | 2 A | 9 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|

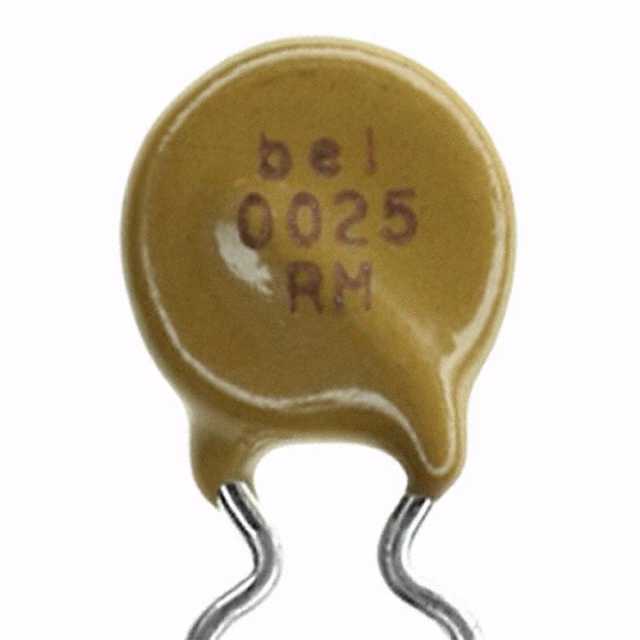

0ZRM0025FF1EPTC RESET FUSE 120V 250MA RADIAL |
7,601 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 250 mA | 500 mA | 3 A | 7.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
0ZRR0110FF2BPTC RESET FUSE 60V 1.1A RADIAL |
7,566 |
|
Datasheet | Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
0ZRA0600FF2DPTC RESET FUSE 16V 6A RADIAL |
4,872 |
|
Datasheet | Radial, Disc | 0ZRA | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 5.8 s | 9 mOhms | 33 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.201" (5.10mm) |
|
0ZCE0010FF2GPTC RESET FUSE 15V 100MA 0805 |
3,934 |
|
Datasheet | 0805 (2012 Metric) | 0ZCE | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 100 mA | 300 mA | 100 A | 1.5 s | 700 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCE0020FF2GPTC RESET FUSE 9V 200MA 0805 |
3,053 |
|
Datasheet | 0805 (2012 Metric) | 0ZCE | Tape & Reel (TR) | Obsolete | Polymeric | 9V | 200 mA | 500 mA | 100 A | 20 ms | 400 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCE0035FF2GPTC RESET FUSE 6V 350MA 0805 |
9,465 |
|
Datasheet | 0805 (2012 Metric) | 0ZCE | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 350 mA | 750 mA | 100 A | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.030" (0.75mm) | - |
Frequently Asked Questions
What are PTC Resettable Fuses components used for?
PTC Resettable Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right PTC Resettable Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
