PTC Resettable Fuses
Review PTC Resettable Fuses Circuit Protection components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRR0110FF1APTC RESET FUSE 60V 1.1A RADIAL |
1,348 |
|
Datasheet | Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
0ZRE0012FF1CPTC RESET FUSE 240V 120MA RADIAL |
3,770 |
|
Datasheet | Radial, Disc | 0ZRE | Box | Active | Polymeric | 240V | 120 mA | 300 mA | 2 A | 15 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.327" L x 0.150" W (8.30mm x 3.80mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
|
0ZRP0050FF1EPTC RESET FUSE 60V 500MA RADIAL |
2,832 |
|
Datasheet | Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 800 ms | 320 mOhms | 900 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.142" W (7.10mm x 3.60mm) | 0.450" (11.43mm) | - | 0.201" (5.10mm) |
,-Concave.jpg "0ZCF0300AF2C")
|
0ZCF0300AF2CPTC RESET FUSE 15V 3A 2920 |
4,925 |
|
Datasheet | 2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 15V | 3 A | 5.2 A | 100 A | 20 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|

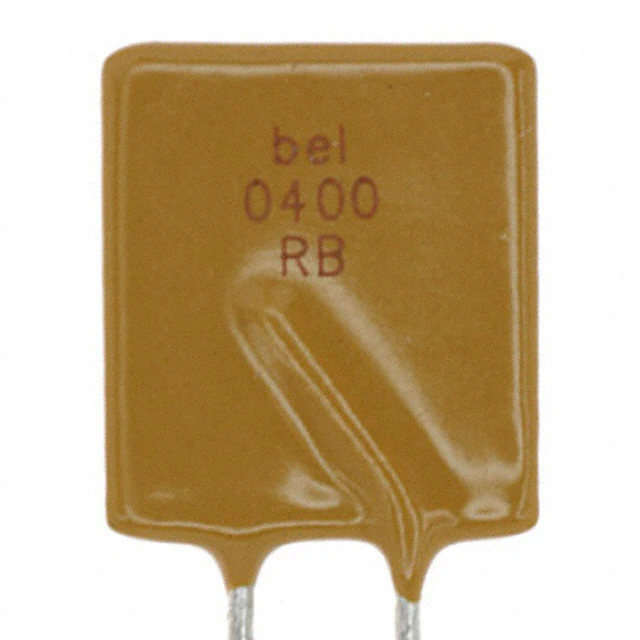

0ZRB0400FF1APTC RESET FUSE 30V 4A RADIAL |
2,270 |
|
Datasheet | Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
|
0ZRM0010FF1EPTC RESET FUSE 120V 100MA RADIAL |
3,098 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 100 mA | 200 mA | 2 A | 10 s | 3 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.150" T (7.90mm x 3.80mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|

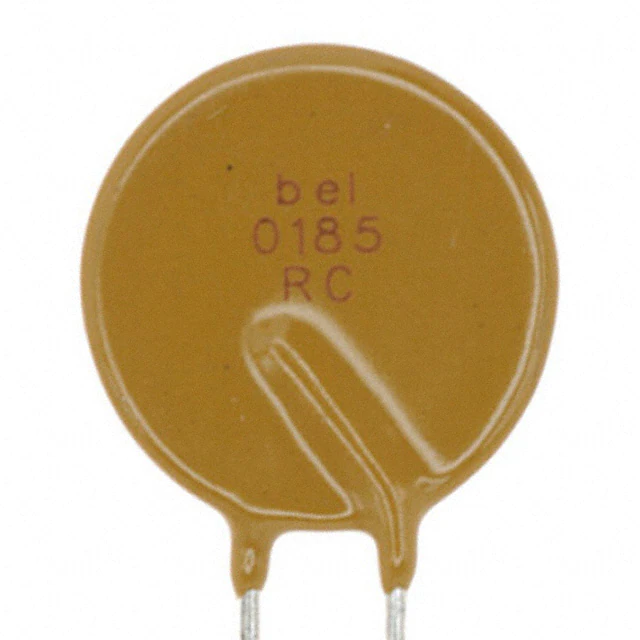

0ZRC0185FF1APTC RESET FUSE 90V 1.85A RADIAL |
2,405 |
|
Datasheet | Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.701" L x 0.122" W (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
0ZRP0250FF1APTC RESET FUSE 60V 2.5A RADIAL |
41,365 |
|
Datasheet | Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 40 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.142" W (14.00mm x 3.60mm) | 0.811" (20.60mm) | - | 0.201" (5.10mm) |
|
0ZRM0090FF1EPTC RESET FUSE 120V 900MA RADIAL |
9,429 |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 900 mA | 1.8 A | 5 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.469" Dia x 0.150" T (11.90mm x 3.80mm) | 0.626" (15.90mm) | - | 0.201" (5.10mm) |
|
0ZRE0025FF1EPTC RESET FUSE 240V 250MA RADIAL |
14,608 |
|
Datasheet | Radial, Disc | 0ZRE | Box | Active | Polymeric | 240V | 250 mA | 560 mA | 6 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.201" (5.10mm) |
Frequently Asked Questions
What are PTC Resettable Fuses components used for?
PTC Resettable Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right PTC Resettable Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
