PTC Resettable Fuses
Explore PTC Resettable Fuses parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUEF400-1PTC RESET FUSE 30V 4A RADIAL |
362 |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 4 A | 8 A | 100 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.760" (19.30mm) | - | 0.199" (5.05mm) |
,-Concave.jpg "0ZCN0150FF2C")
|
0ZCN0150FF2CPTC RESET FUSE 15V 1.5A 2016 |
600 |
|
Datasheet | 2016 (5041 Metric), Concave | 0ZCN | Tape & Reel (TR) | Active | Polymeric | 15V | 1.5 A | 3 A | 100 A | 800 ms | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.026" (0.65mm) | - |
|
AHRF070PTC RESET FUSE 30V 700MA RADIAL |
472 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 30V | 700 mA | 1.4 A | 40 A | 3.2 s | 230 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" L x 0.130" W (6.90mm x 3.30mm) | 0.425" (10.80mm) | - | 0.199" (5.05mm) |
|
AHRF100PTC RESET FUSE 30V 1A RADIAL |
500 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 30V | 1 A | 1.9 A | 40 A | 6.2 s | 150 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.199" (5.05mm) |
|
MINIASMDC260F/12-2PTC RESET FUSE 12V 2.6A 1812 |
347 |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch®, miniASMD | Bulk | Active | Polymeric | 12V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.060" (1.52mm) | - |
|
PICOSMDC075S-2PTC RESET FUSE 6V 750MA 0805 |
1,031 |
|
Datasheet | 0805 (2012 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 100 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.037" (0.93mm) | - |
|
MF-R090-2-9PTC RESET FUSE 60V 900MA RADIAL |
231 |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" L x 0.122" W (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|

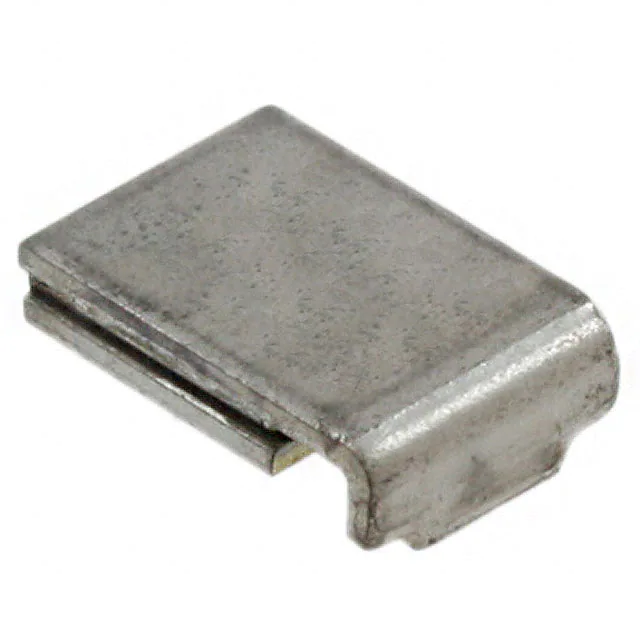

AHS120-2PTC RESET FUSE 16V 1.2A 2SMD |
4,068 |
|
Datasheet | 2-SMD | PolySwitch®, AHS | Tape & Reel (TR) | Active | Polymeric | 16V | 1.2 A | 2.3 A | 50 A | 2 s | 150 mOhms | 340 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
AGRF1400PTC RESET FUSE 16V 14A RADIAL |
250 |
|
Datasheet | Radial, Disc | PolySwitch®, AGRF | Bag | Active | Polymeric | 16V | 14 A | 27.3 A | 100 A | 9 s | 2.2 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.138" W (23.50mm x 3.50mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
|
|
PICOASMDC050S-2PPTC-MINI-PSW |
990 |
|
Datasheet | 0805 (2012 Metric), Concave | PolySwitch® picoASMDC | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 800 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.037" (0.93mm) | - |
|
|
PICOASMDC020S-2PPTC-MINI-PSW |
873 |
|
Datasheet | 0805 (2012 Metric), Concave | PolySwitch® picoASMDC | Tape & Reel (TR) | Active | Polymeric | 9V | 200 mA | 470 mA | 100 A | 100 ms | 750 mOhms | 3.2 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.027" (0.68mm) | - |
|
0ZRB0700FF1APTC RESET FUSE 30V 7A RADIAL |
563 |
|
Datasheet | Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 7 A | 14 A | 40 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.752" L x 0.118" W (19.10mm x 3.00mm) | 1.051" (26.70mm) | - | 0.402" (10.20mm) |
|
TRF250-120TPTC RESET FUSE 60V 120MA RADIAL |
499 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 1.2 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
MF-LS100PTC RESET FUSE 24V 1A STRAP |
560 |
|
Datasheet | Strap | Multifuse®, MF-LS | Bulk | Active | Polymeric | 24V | 1 A | 2.5 A | 100 A | 7 s | 70 mOhms | 260 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.199" W (22.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
LVR016S-1PTC RESET FUSE 240V 160MA RADIAL |
490 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 160 mA | 370 mA | 2 A | 15 s | 2.5 Ohms | 7.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
TRF250-183UPTC RESET FUSE 100V 183MA RADIAL |
375 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 100V (250V Int) | 183 mA | 685 mA | 10 A | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" Dia x 0.118" T (6.50mm x 3.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
MF-RHT050-0PTC RESET FUSE 30V 500MA RADIAL |
2,214 |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 30V | 500 mA | 920 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
16R300GPRPTC RESET FUSE 16V 3A RADIAL |
1,748 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 16R | Cut Tape (CT) | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
AHS160-2PTC RESET FUSE 16V 1.6A 2SMD |
807 |
|
Datasheet | 2-SMD | PolySwitch®, AHS | Tape & Reel (TR) | Active | Polymeric | 16V | 1.6 A | 3.2 A | 70 A | 15 s | 50 mOhms | 150 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
|
TRF250-110UPTC RESET FUSE 60V 110MA RADIAL |
500 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 110 mA | 220 mA | 3 A | 1.2 s | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.209" Dia x 0.150" T (5.30mm x 3.80mm) | 0.370" (9.40mm) | - | 0.197" (5.00mm) |
