Pressure Sensors, Transducers
Explore Pressure Sensors, Transducers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCDRRN005NDAA3SENSOR 0.18PSID 0.08" 2.97V 8DIP |
180 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
NSCSHHN030PDUNVSENSOR 30PSID 0.16" .207V 4SIP |
292 |
|
Datasheet | TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 207 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | - | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
26PCCFG6GSENSOR 15PSIC 0.14" 0.1V |
926 |
|
Datasheet | 26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.14" (3.56mm) Tube | Barbed | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
DLVR-L02D-E1NJ-C-NI3FSENSOR 0.07PSID 0.08" 14BIT 8SMT |
142 |
|
Datasheet | DLVR | 8-SMD Module | Bulk | Active | Board Mount | Differential | ±0.07PSI (±0.5kPa) | I2C | 14 b | ±1% | 3.3V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±3.61PSI (±24.92kPa) | -25°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
ND210-SM02-RSENSOR 0.36PSID 0.08" 16BIT |
460 |
|
Datasheet | ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | - | Differential | 0.01PSI ~ 0.36PSI (0.06kPa ~ 2.5kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 1.45PSI (9.96kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
BPS130-HA100P-1SGSENSOR 100PSIA 0.122" 4.95V |
1,289 |
|
Datasheet | BPS130 | - | Tape & Reel (TR) | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | Solder Pad | 200PSI (1378.95kPa) | -40°C ~ 150°C | - | - | - | - |
|
SSCDANN150PG2A5SENSOR 150PSIG 0.19" 12BIT 8DIP |
280 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCMRNN015PA3A3SENSOR 15PSIA 0.08" 12BIT 8SMT |
556 |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Side Port | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
HSCMRRN005PDSA5SENSOR 5PSID 0.08" 12BIT 8SMD |
3,710 |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±30PSI (±206.84kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCDRRD160MDSA3SENSOR 2.32PSID 0.08" 12BIT 8DIP |
590 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±2.32PSI (±16kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCMNNN030PA2A3SENSOR 30PSIA 12BIT 8SMT |
743 |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead | Tube | Active | Board Mount | Absolute | 30PSI (206.84kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
5 INCH-G-P4V-MINISENSOR 0.18PSIG 0.08" 4.25V |
252 |
|
Datasheet | MAMP | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
SSCDANN100PGAA5SENSOR 100PSIG 0.19" 4.5V 8DIP |
545 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCSNBN015PAAA5SENSOR 15PSIA 0.19" 4.5V 4SIP |
184 |
|
Datasheet | TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
MIPAM1XX050PAAAXSENSOR 50PSIA M12X1.5 4.5V |
1,601 |
|
Datasheet | MIP | Cylinder, Threaded | Bulk | Active | - | Absolute | 50PSI (344.74kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.15% | 4.75V ~ 5.25V | Male - M12 x 1.5 | Threaded | Temperature Compensated | Connector | 348.09PSI (2400kPa) | -40°C ~ 125°C | - | - | - | - |
|
MIPAN1XX100PSAAXSENSOR 100PSIS 1/4"NPT 4.5V |
803 |
|
Datasheet | MIP | Cylinder, Threaded | Bulk | Active | - | Sealed Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.15% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 348.09PSI (2400kPa) | -40°C ~ 125°C | - | - | - | - |
|
SSCDRRN015PDAA5SENSOR 15PSID 0.08" 4.5V 8DIP |
3,775 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tube | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDANN060PGAA5SENSOR 60PSIG 0.19" 4.5V 8DIP |
325 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

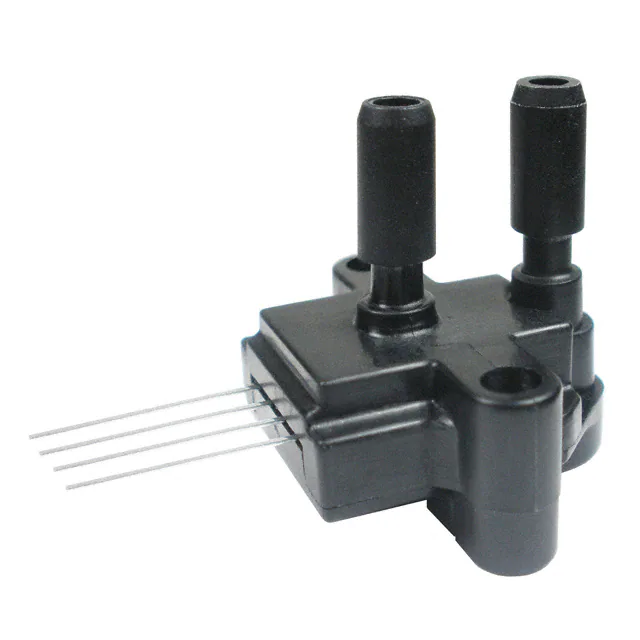

HSCSNBD001NDAA5SENSOR 0.04PSID 0.19" 4.5V 4SIP |
4,486 |
|
Datasheet | TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCDRRN001NDAA3SENSOR 0.04PSID 0.08" 2.97V 8DIP |
1,370 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tube | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
