Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

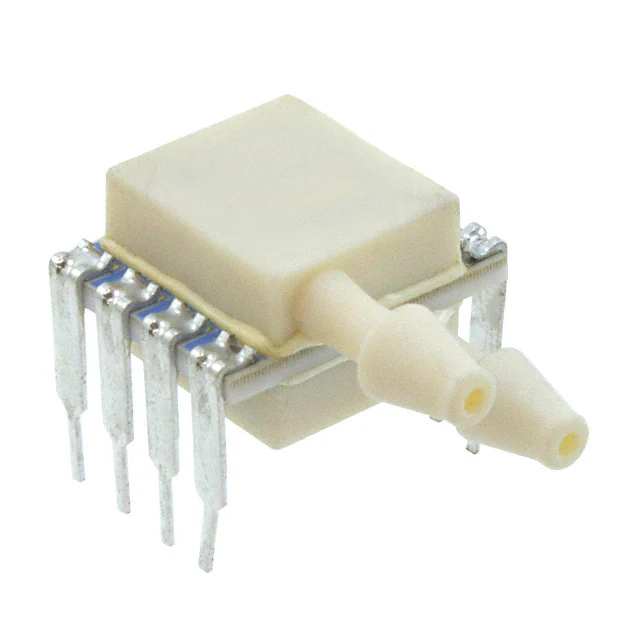

4515-DS5A002DPSENSOR 0.07PSID 0.14" 4.5V |
621 |
|
Datasheet | - | 8-DIP Module | Tray | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|
4515-DS5A004DPPRESS XDCR,ANALOG,INH20 RANGE |
233 |
|
Datasheet | MS4515 | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | 0.14PSI (1kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 2.7V ~ 5.5V | Male - 0.14" (3.5mm) Tube, Dual | Barbed | Temperature Compensated | PC Pins | 300PSI (2068.43kPa) | -10°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
4515DO-DS3BK005DPSENSOR 0.18PSID 0.14" 14BIT |
239 |
|
Datasheet | - | 8-DIP Module | Tray | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | I2C | 14 b | ±0.25% | 3.3V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|
M323M-000004-017BGSENSOR 246.56PSIG 7/16" 4.5V |
2,571 |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 246.56PSI (1700kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 7/16" (0.44mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 493PSI (3400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
M323M-000005-150PGPRESSURE TRANSDUCER |
196 |
|
Datasheet | - | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
86-500A-RSENSOR 500PSIA 0.1V |
4,003 |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
M3256-00000E-007BGSENSOR 101.53PSIG 1/4" .02A |
3,252 |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 101.53PSI (700kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Connector | 203PSI (1400kPa) | -40°C ~ 125°C | - | - | - | - |
|

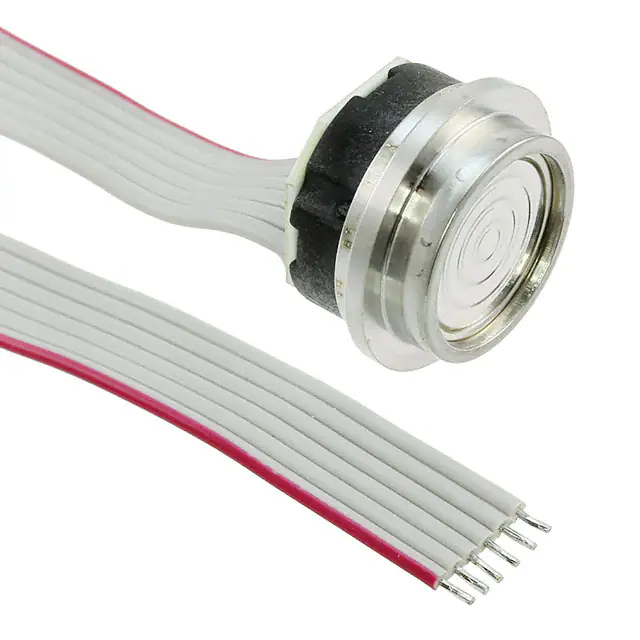

85-100A-0RSENSOR 100PSIA 0.1V |
115 |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
82-005G-RTSENSOR 5PSIG 0.1V |
2,448 |
|
Datasheet | - | - | Tube | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Flex Cable | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | - | - |
|
86BSD015PG-3AICSENSOR 15PSIG 14BIT |
3,832 |
|
Datasheet | 86BSD | Module | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | I2C, SPI | 14 b | ±0.25% | 3.3V | - | No Port | Amplified Output, Temperature Compensated | Cable with Connector | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | - | - |
