Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLVR-L60D-E2NJ-C-NI5FSENSOR 2.17PSID 0.08" 14BIT 8SMD |
4,066 |
|
Datasheet | DLVR | 8-SMD Module | Tube | Active | Board Mount | Differential | ±2.17PSI (±14.95kPa) | I2C | 14 b | ±0.75% | 5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±7.23PSI (±49.83kPa) | -25°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
15 PSI-GF-HGRADE-MINISENSOR 15PSIG 0.18" .09V |
2,254 |
|
Datasheet | ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
15 PSI-D-HGRADE-MINISENSOR 15PSID 0.18" .09V |
2,661 |
|
Datasheet | ACPC | 4-SIP Module | Tube | Active | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
1 PSI-GF-HGRADE-MINISENSOR 1PSIG 0.18" .018V |
1,542 |
|
Datasheet | ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
1 PSI-D-HGRADE-MINISENSOR 1PSID 0.18" .018V |
2,726 |
|
Datasheet | ACPC | 4-SIP Module | Tube | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
5 PSI-D-HGRADE-MINISENSOR 5PSID 0.18" .06V |
4,003 |
|
Datasheet | ACPC | 4-SIP Module | Tube | Active | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
15 PSI-AF-HGRADE-MINISENSOR 15PSIA 0.18" .09V |
2,841 |
|
Datasheet | ACPC | 4-SIP Module | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
MLV-030D-E1BS-NSENSOR 30PSID 0.09" .0375V 4SIP |
2,447 |
|
Datasheet | MLV | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 37.5 mV (5V) | ±0.5% | 12V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±90PSI (±620.53kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

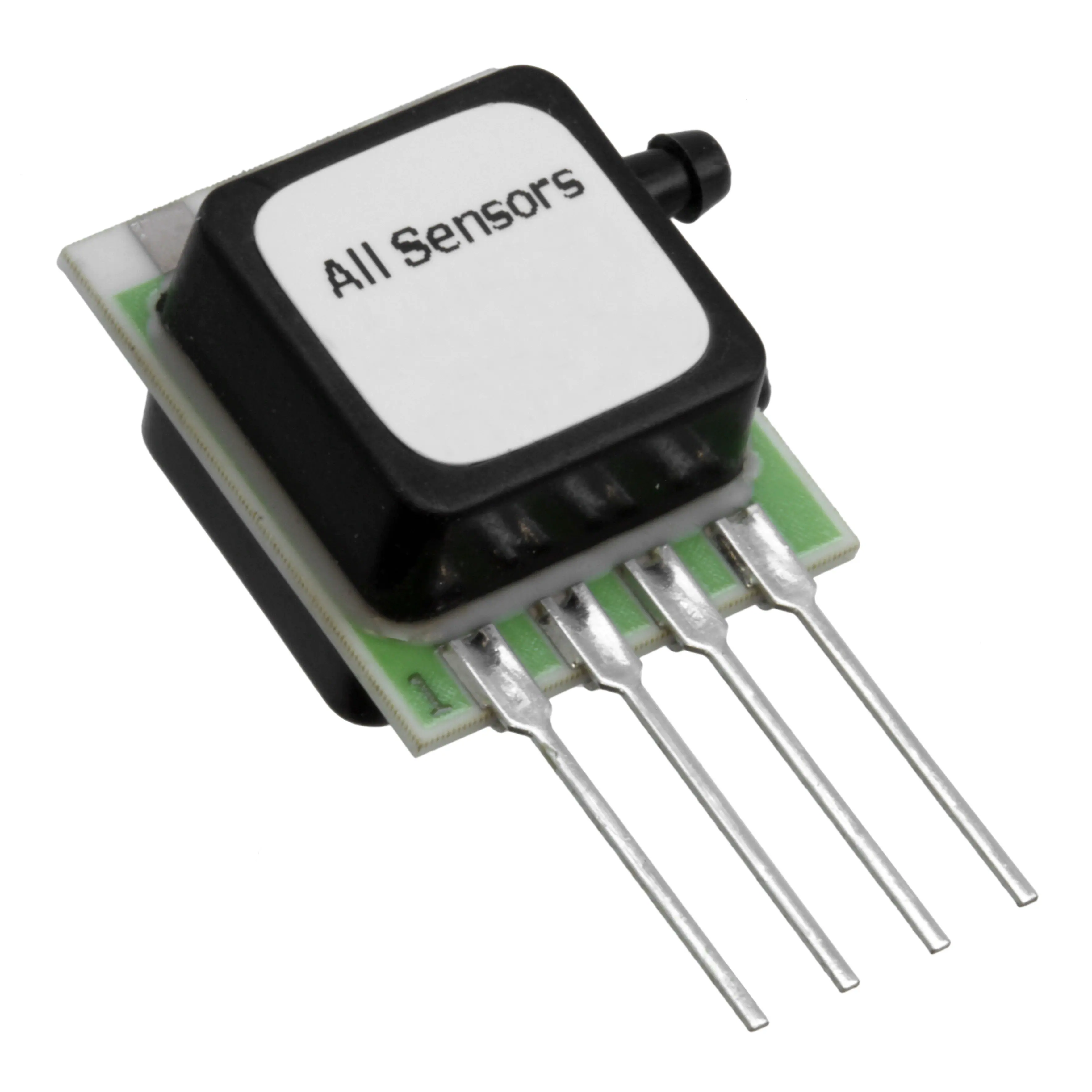

MLV-015D-E1BS-NSENSOR 15PSID 0.09" .0375V 4SIP |
2,030 |
|
Datasheet | MLV | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 37.5 mV (5V) | ±0.5% | 12V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

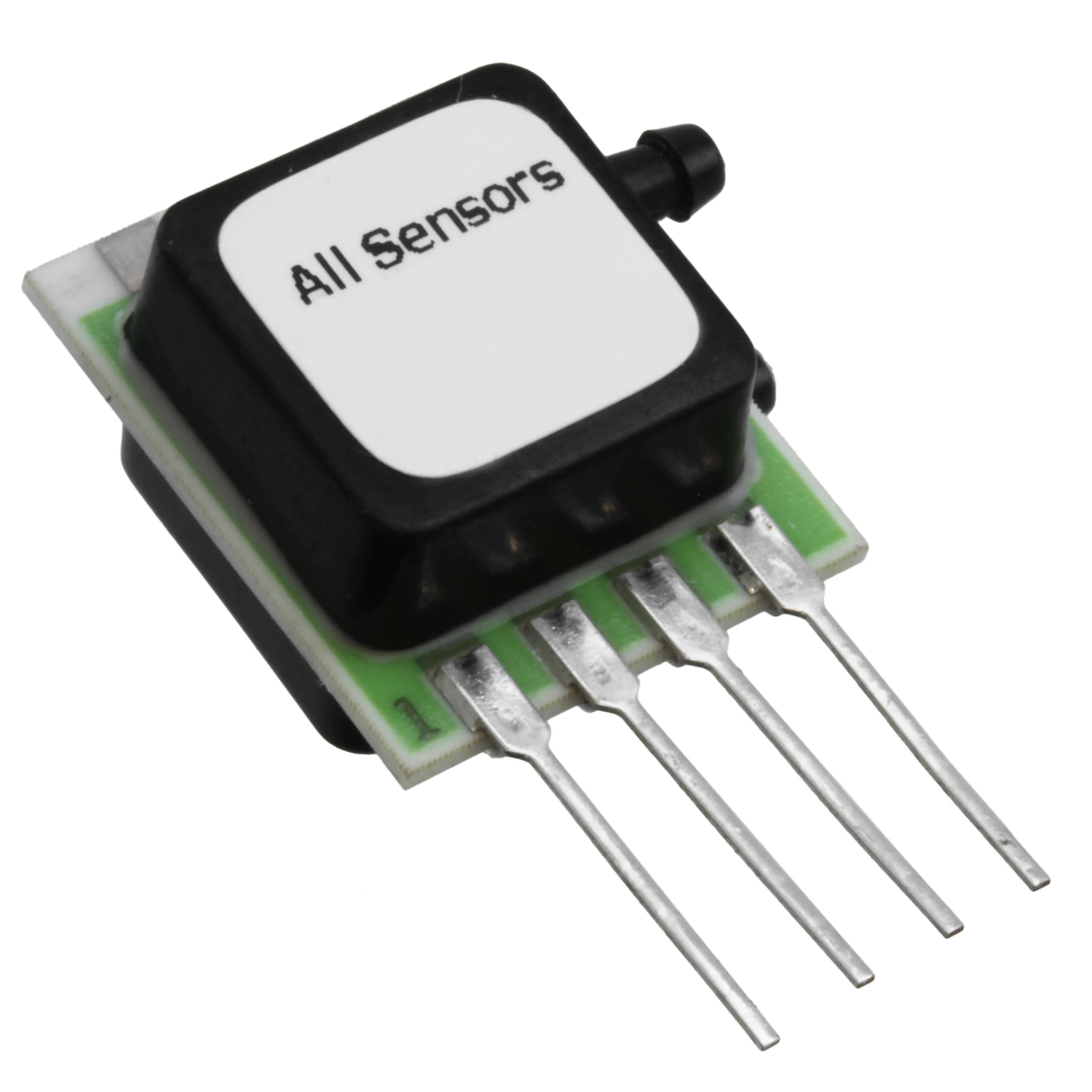

MLV-005D-E1BS-NSENSOR 5PSID 0.09" .025V 4SIP |
1,480 |
|
Datasheet | MLV | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.5% | 12V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
