Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASDX100D44RSENSOR 100PSID 0.09" 4.5V |
1,098 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|

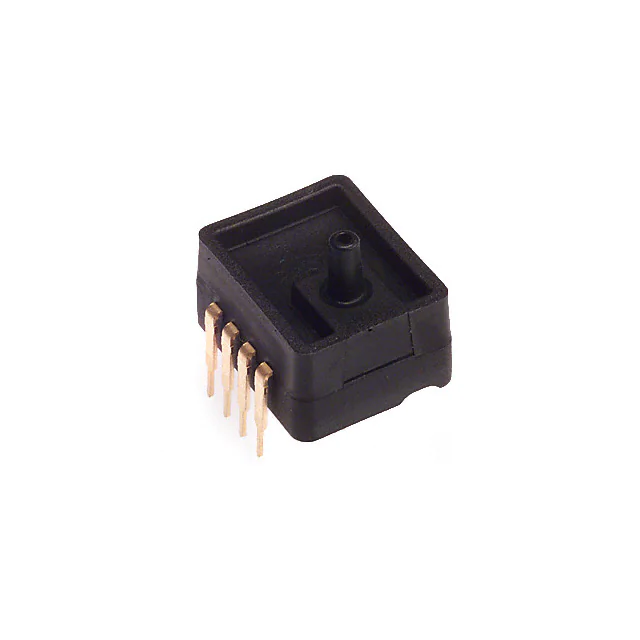

ASDX001G24RSENSOR 1PSIG 0.09" 4.5V 8DIP |
1,448 |
|
Datasheet | ASDX | 8-DIP (0.600", 15.24mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -20°C ~ 105°C | - | - | Through Hole | 8-DIP |
|
|
ASDX005G24RSENSOR 5PSIG 0.09" 4.5V 8DIP |
2,947 |
|
Datasheet | ASDX | 8-DIP (0.600", 15.24mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -20°C ~ 105°C | - | - | Through Hole | 8-DIP |
|
|
ASDX015G24RSENSOR 15PSIG 0.09" 4.5V 8DIP |
1,390 |
|
Datasheet | ASDX | 8-DIP (0.600", 15.24mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 105°C | - | - | Through Hole | 8-DIP |
|
|
ASDX030G24RSENSOR 30PSIG 0.09" 4.5V 8DIP |
1,110 |
|
Datasheet | ASDX | 8-DIP (0.600", 15.24mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 105°C | - | - | Through Hole | 8-DIP |
|
|
ASDX100G24RSENSOR 100PSIG 0.09" 4.5V 8DIP |
4,382 |
|
Datasheet | ASDX | 8-DIP (0.600", 15.24mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -20°C ~ 105°C | - | - | Through Hole | 8-DIP |
|
ASDX015D44DSENSOR 15PSID 0.09" 4.5V |
1,578 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
|
ASDX005D44DSENSOR 5PSID 0.09" 4.5V |
1,746 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
|
ASDX001D44R-DOSENSOR 1PSID 0.09" 12BIT |
2,997 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | I2C | 12 b | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
|
ASDX001D44DSENSOR 1PSID 0.09" 4.5V |
4,747 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
