Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

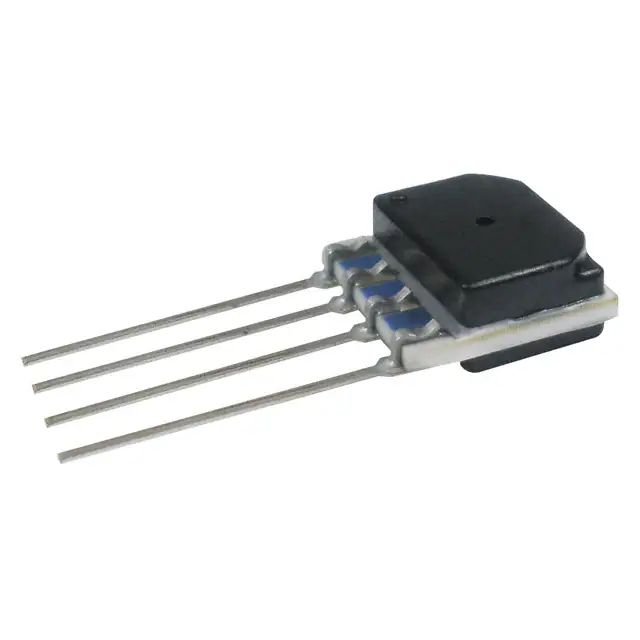

HSCSNNN015PAAA5SENSOR 15PSIA 4.5V 4SIP |
2,298 |
|
Datasheet | TruStability® HSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HEF01600PHDSNFAA01SENSOR 160.0PSIS SPDT 3/4" |
2,777 |
|
Datasheet | HE | Cylinder, Threaded | Bulk | Obsolete | - | Sealed Gauge | 160.0PSI (1103kPa) | SPDT | - | - | 28V | Male - 3/4" (19.05mm) UNF | Threaded | - | Cable with Connector | 4500PSI (31026.41kPa) | -40°C ~ 85°C | - | - | - | - |
|
HSCDRRN005NGAA5SENSOR 0.18PSIG 0.08" 4.5V 8DIP |
1,990 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 9.76PSI (67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

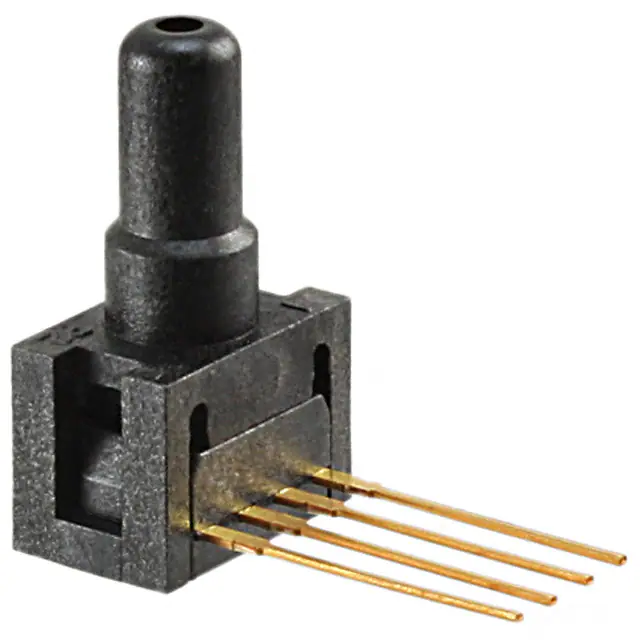

24PCFFA6GSENSOR 100PSIC 0.2" .225V |
4,622 |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube | Barbless | - | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
HEF12040PGDSNFAA01SENSOR 1204PSIS SPDT 9/16" |
3,709 |
|
Datasheet | HE | Cylinder, Threaded | Bulk | Obsolete | - | Sealed Gauge | 1204PSI (8301.29kPa) | SPDT | - | - | 28V | Male - 9/16" (14.29mm) UNF | Threaded | - | Cable with Connector | 10000PSI (68947.57kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
24PCDFB6GSENSOR 30PSIC 0.25" .33V |
4,074 |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 330 mV (10V) | ±1% | 10V ~ 12V | Male - 0.25" (6.35mm) Tube | Barbed | - | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCDFD6GSENSOR 30PSIC .33V |
4,241 |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 330 mV (10V) | ±1% | 10V ~ 12V | - | No Port | - | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCFFA2GSENSOR 100PSIC 0.25" .225V |
3,982 |
|
Datasheet | 24PC | 4-DIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - 0.25" (6.35mm) Tube | Barbless | - | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCFND6GSENSOR 100PSIC .225V |
2,191 |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | - | No Port | - | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCGND6GSENSOR 250PSIC .212V |
2,009 |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 212 mV (10V) | ±1% | 10V ~ 12V | - | No Port | - | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
