Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
24PCCFG6GSENSOR 15PSIC 0.14" .225V |
3,418 |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Obsolete | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - 0.14" (3.56mm) Tube | Barbed | - | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

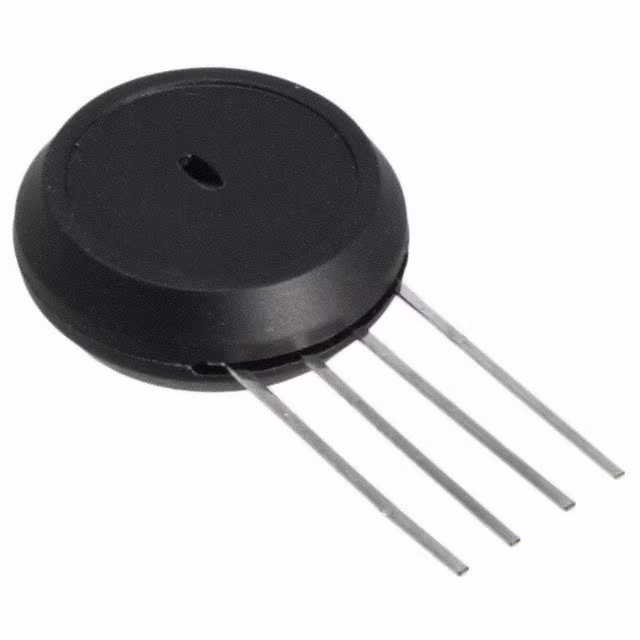

HSCSMNN100PG2A5SENSOR 100PSIG 12BIT 4SIP |
2,861 |
|
Datasheet | TruStability® HSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSNBN005PGAA5SENSOR 5PSIG 0.19" 4.5V 4SIP |
3,048 |
|
Datasheet | TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSNBN015PGAA5SENSOR 15PSIG 0.19" 4.5V 4SIP |
1,659 |
|
Datasheet | TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCDRRN100PGSA5SENSOR 100PSIG 0.08" 12BIT 8DIP |
2,153 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
TBFLPNS2.5BGUCVTBF 2.5 BAR SENSOR WITH NEW GEL |
3,017 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TBFLPNS1.6BGUCVTBF 1.6 BAR SENSOR WITH NEW GEL |
4,660 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SSCDRRN004NGAA5SENSOR 0.15PSIG 0.08" 4.5V 8DIP |
1,248 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 9.76PSI (67.28kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
40PC030G2ASENSOR 30PSIG 0.18" 4.5V |
1,339 |
|
Datasheet | 40PC | 6-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2.25% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 60PSI (413.69kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
|
SSCMRRN002NDAA3SENSOR 0.07PSID 0.08" 2.97V 8SMT |
3,881 |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.07PSI (±0.5kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±9.76PSI (±67.27kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
