Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

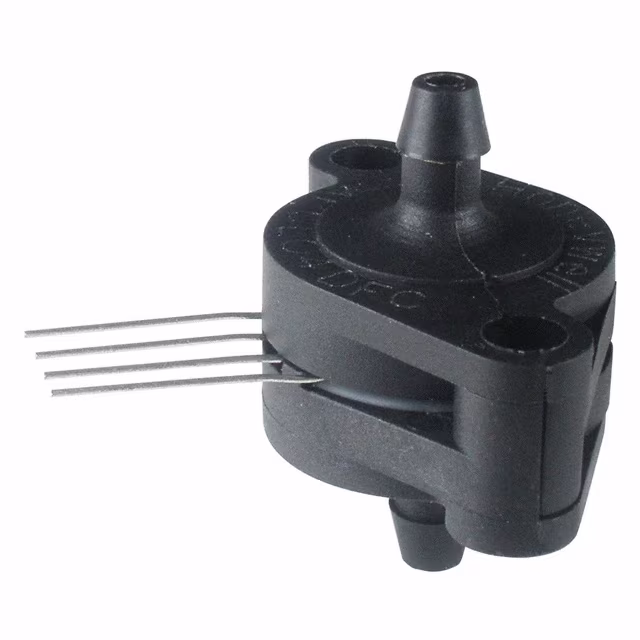

HSCSFFT005PDAA5SENSOR 5PSID 0.19" 4.5V 4SIP |
1,396 |
|
Datasheet | TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSHNT2.5BAAA5SENSOR 36.26PSIA 0.19" 4.5V 4SIP |
4,749 |
|
Datasheet | TruStability® HSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 36.26PSI (250kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 87.02PSI (600kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSANN100PGAA5SENSOR 100PSIG 0.19" 4.5V 4SIP |
2,560 |
|
Datasheet | TruStability® HSC | 4-SIP, Side Port | Bulk | Discontinued at Digi-Key | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCDANT005PG2A5SENSOR 5PSIG 0.19" 12BIT 8DIP |
1,555 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Discontinued at Digi-Key | Board Mount | Vented Gauge | 5PSI (34.47kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANT001PDSA5SENSOR 1PSID 0.19" 12BIT 8DIP |
3,093 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Discontinued at Digi-Key | Board Mount | Differential | ±1PSI (±6.89kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANT030PA2A3SENSOR 30PSIA 0.19" 12BIT 8DIP |
1,801 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANT030PAAA3SENSOR 30PSIA 0.19" 2.97V 8DIP |
2,725 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDRRT100PGAA5SENSOR 100PSIG 0.08" 4.5V 8DIP |
3,225 |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
NSCSHHN150PDUNVSENSOR 150PSID 0.16" .2585V 4SIP |
2,951 |
|
Datasheet | TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±150PSI (±1034.21kPa) | Wheatstone Bridge | 0 mV ~ 258.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | - | PC Pin | ±250PSI (±1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSHHN015PDUNVSENSOR 15PSID 0.16" .155V 4SIP |
4,080 |
|
Datasheet | TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 155 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | - | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
