Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCMNNN015PAAA5SENSOR 15PSIA 4.5V 8SMD |
3,922 |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead | Bulk | Discontinued at Digi-Key | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMNNN030PASA5SENSOR 30PSIA 12BIT 8SMD |
3,380 |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead | Bulk | Discontinued at Digi-Key | Board Mount | Absolute | 30PSI (206.84kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | J Lead | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCMRNN100PGAA5SENSOR 100PSIG 0.08" 4.5V 8SMD |
4,138 |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Side Port | Bulk | Discontinued at Digi-Key | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCMRRN001PD3A3SENSOR 1PSID 0.08" 12BIT 8SMD |
1,547 |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Discontinued at Digi-Key | Board Mount | Differential | ±1PSI (±6.89kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMRRN2.5BG2A5SENSOR 36.26PSIG 0.08" 12BIT SMD |
2,322 |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Discontinued at Digi-Key | Board Mount | Vented Gauge | 36.26PSI (250kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | 116.03PSI (800kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
SX15GSMTSENSOR 15PSIG .1125V |
1,968 |
|
Datasheet | SX SMT | 8-SMD Module | Tube | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 112.5 mV (5V) | ±0.5% | 12V | - | No Port | - | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

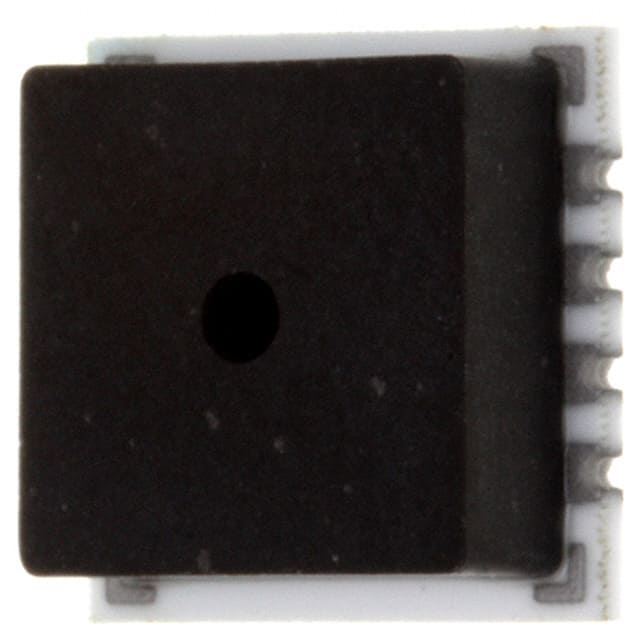

SX150GSMTSENSOR 150PSIG .105V |
1,876 |
|
Datasheet | SX SMT | 8-SMD Module | Bulk | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 105 mV (5V) | ±0.5% | 12V | - | No Port | - | SMD (SMT) Tab | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

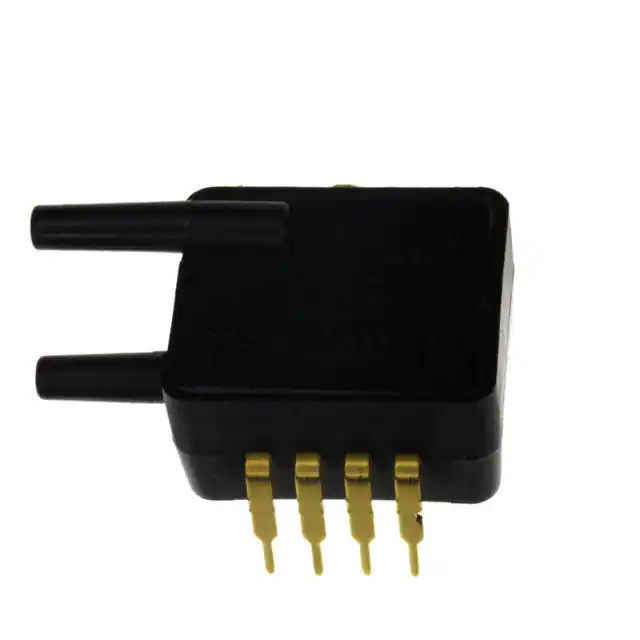

ASDXRRX005PG2A5SENSOR 5PSIG 0.09" 12BIT |
2,478 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | I2C | 12 b | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|
ASDXAVX005PG2A5SENSOR 5PSIG 0.09" 12BIT |
1,763 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | I2C | 12 b | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube | Barbless | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
|

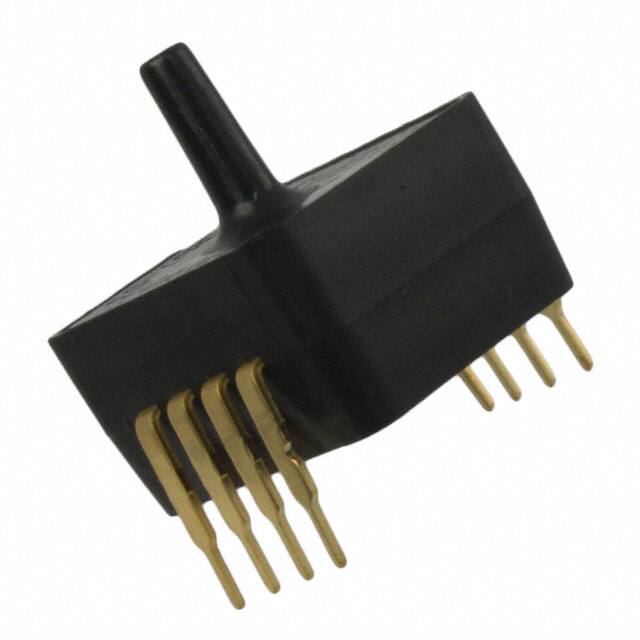

ASDXACX015PASA5SENSOR 15PSIA 0.09" 12BIT |
4,381 |
|
Datasheet | ASDX | 8-DIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | SPI | 12 b | ±2% | 4.75V ~ 5.25V | Male - 0.09" (2.31mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 105°C | - | - | Through Hole | - |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
