Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26PCBFB6GSENSOR 5PSIC 0.18" .05V |
2,717 |
|
Datasheet | 26PC | 4-SIP Module | Tray | Active | Board Mount | Compound | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.18" (4.57mm) Tube | Barbed | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

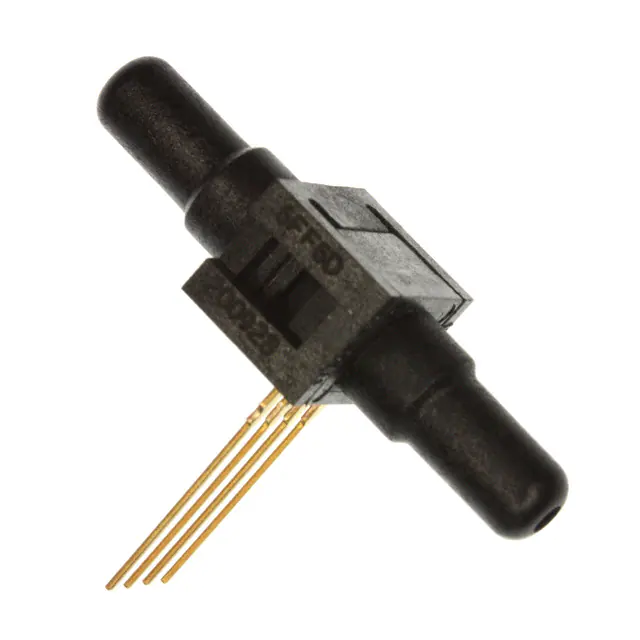

26PCFFA6DSENSOR 100PSID 0.2" 0.1V |
2,934 |
|
Datasheet | 26PC | 4-SIP Module | Tube | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.2% | 2.5V ~ 16V | Male - 0.2" (5.08mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

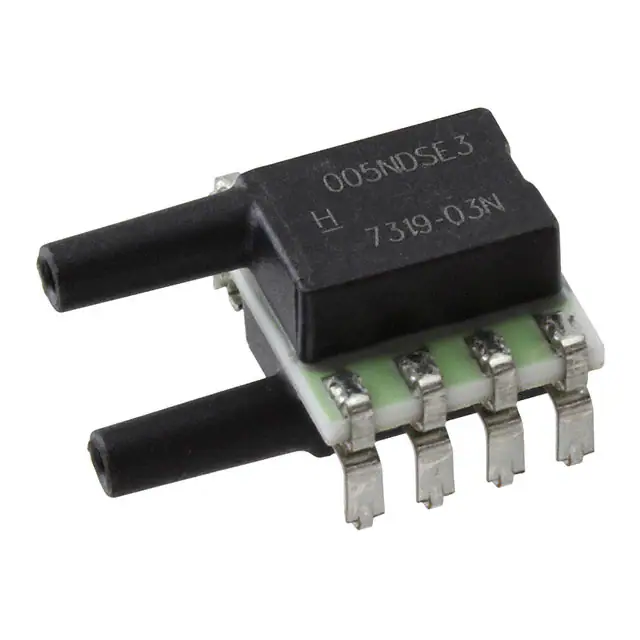

RSCMJJM005NDSE3SENSOR 0.18PSID 0.08" 24BIT SMD |
3,114 |
|
Datasheet | TruStability® RSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.18PSI (±1.25kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | ±5PSI (±34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | SMD |
|

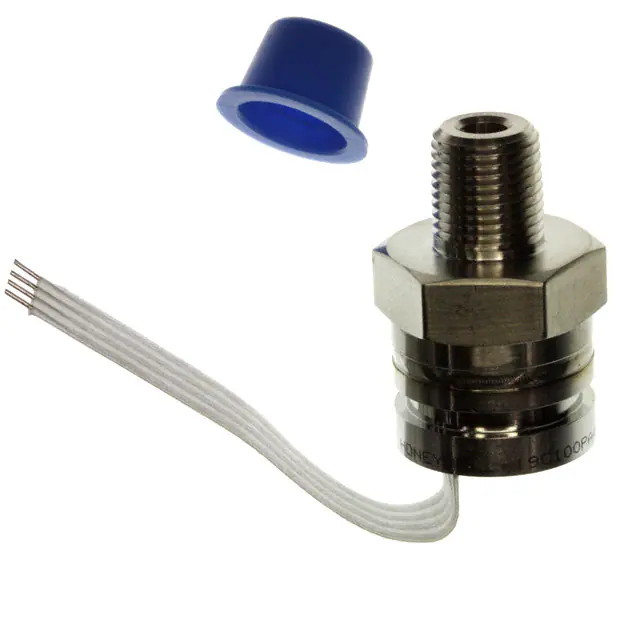

19C100PA4KSENSOR 100PSIA 1/8"NPT 0.1V |
2,683 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|

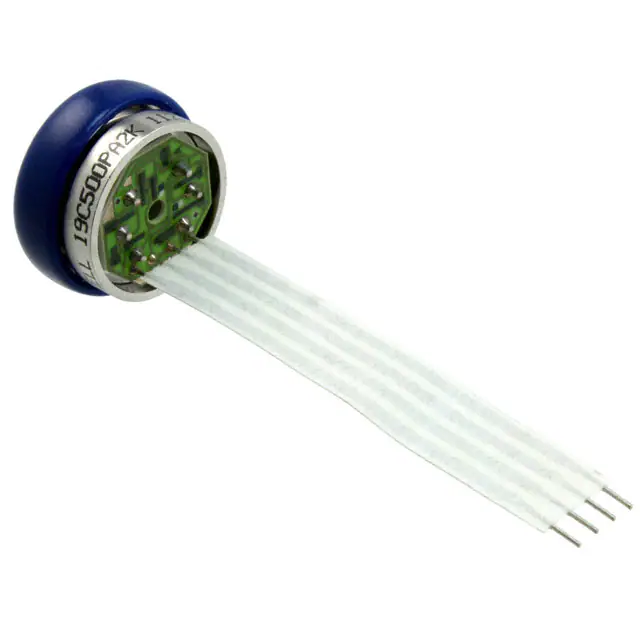

19C500PA2KSENSOR 500PSIA 0.1V |
1,276 |
|
Datasheet | 19 mm | Cylinder | Bulk | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 1200PSI (8273.71kPa) | -40°C ~ 125°C | - | - | - | - |
|

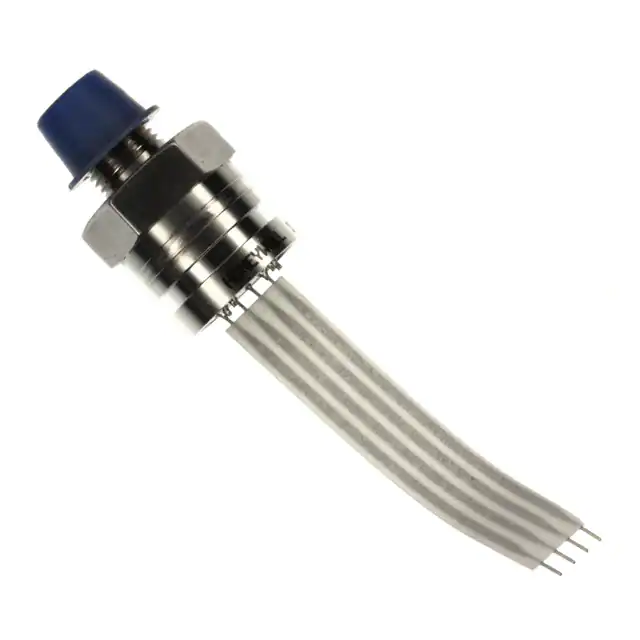

19C015PG4KSENSOR 15PSIG 1/8"NPT 0.1V |
2,834 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|

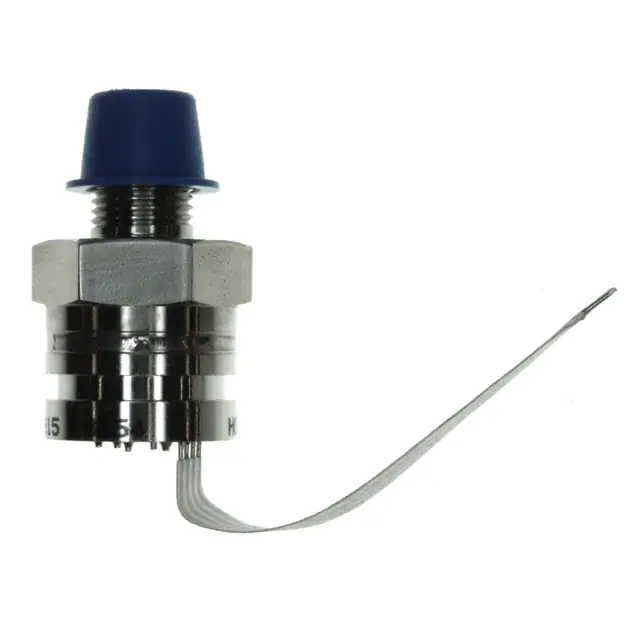

19C500PA4KSENSOR 500PSIA 1/8"NPT 0.1V |
221 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 1200PSI (8273.71kPa) | -40°C ~ 125°C | - | - | - | - |
|

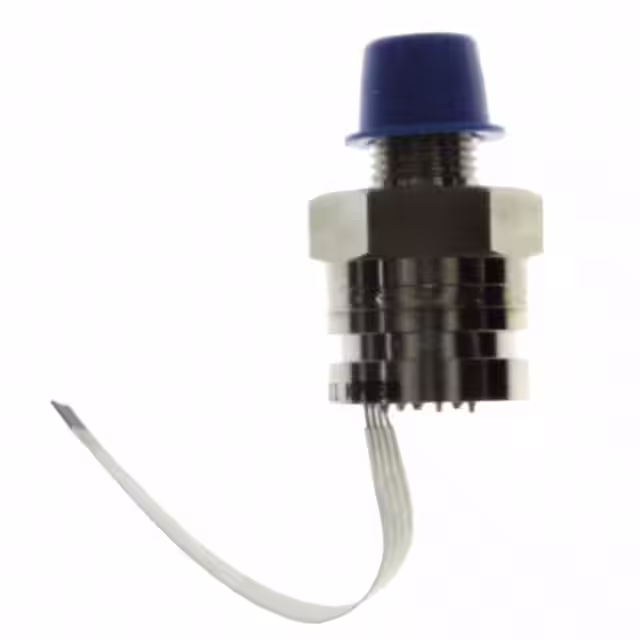

19C300PG4KSENSOR 300PSIG 1/8"NPT 0.1V |
4,830 |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|

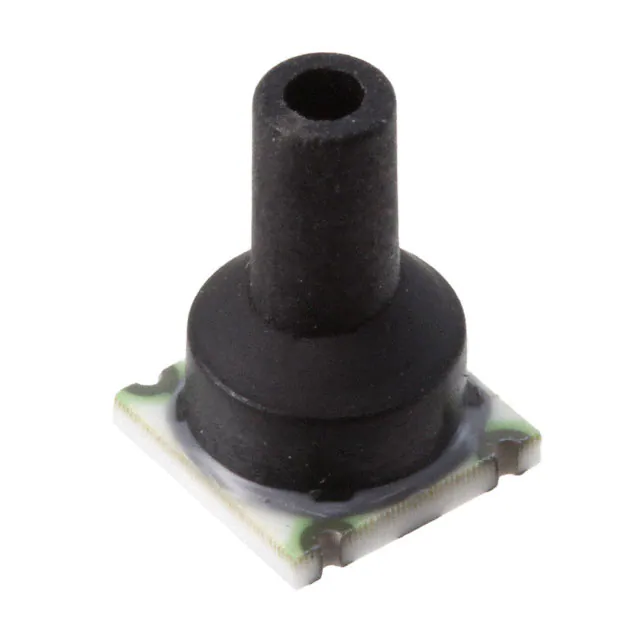

TBPLLNN030PGUCVSENSOR 30PSIG 0.13" .0275V 6SMT |
194 |
|
Datasheet | TBP | 6-SMD, No Lead, Top Port | Tray | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 27.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 115PSI (792.9kPa) | -40°C ~ 125°C | - | - | Surface Mount | 6-SMT |
|
MPRLL0001PG0000SCSENSOR 1PSIG 0.1" 24BIT |
144 |
|
Datasheet | MPR | 12-SMD, No Lead, Top Port | Box | Active | Board Mount | Gauge | 1PSI (6.89kPa) | SPI | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.1" (2.5mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 5PSI (34.47kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
