Pressure Sensors, Transducers
Review Pressure Sensors, Transducers Sensors, Transducers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCMRRD001PDSA5SENSOR 1PSID 0.08" 12BIT 8SMD |
4,045 |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | 10PSI (68.95kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMRRD030NDAA5SENSOR 1.08PSID 0.08" 4.5V 8SMD |
3,932 |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1.08PSI (±7.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±12.65PSI (±87.21kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

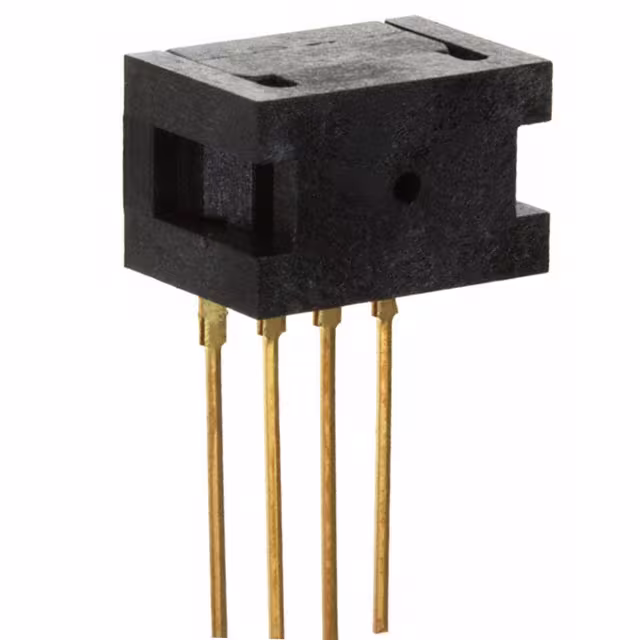

24PCEFD6GSENSOR 0.5PSIC .035V |
2,524 |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Discontinued at Digi-Key | Board Mount | Compound | ±0.5PSI (±3.45kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (10V) | ±1% | 10V ~ 12V | - | No Port | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
TSCMLNN100MGUCVSENSOR 1.45PSIG 0.1" .011V 8SMT |
2,112 |
|
Datasheet | TruStability® TSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 11 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.1" (2.47mm) Tube | Barbless | Temperature Compensated | J Lead | 12.65PSI (87.2kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
NSCSFFN030PDUNVSENSOR 30PSID 0.19" .207V 4SIP |
3,782 |
|
Datasheet | TruStability® NSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 207 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.78mm) Tube, Dual | Barbed | - | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCMANT010BA2A3SENS 145.04PSIA 0.19" 12BIT SMT |
3,908 |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Absolute | 145.04PSI (1000kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 246.56PSI (1700kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
SSCMANT150PA4A3SENSOR 150PSIA 0.19" 12BIT 8SMT |
1,121 |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
SSCMRNN040MD2A3SENSOR 0.58PSID 0.08" 12BIT 8SMT |
4,881 |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Side Port | Bulk | Obsolete | Board Mount | Differential | ±0.58PSI (±4kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±12.33PSI (±85kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
LER00900PBPNKMAA20"LE PRESSURE SWITCH, SPNO |
4,566 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SSCDANV005PGAA5SENSOR 5PSIG 0.19" 4.5V 8DIP |
1,823 |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
Frequently Asked Questions
What are Pressure Sensors, Transducers components used for?
Pressure Sensors, Transducers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Pressure Sensors, Transducers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
