Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-1000UPWR XFMR LAMINATED CHAS MT |
3,711 |
|
Datasheet | - | Box | Obsolete | Laminated Core | 115V, 230V | 24V | 21A | Dual | Single | Yes | - | Chassis Mount | Wire Leads | 111.13mm L x 88.90mm W | 133.35mm | 1500Vrms | 14 lbs (6.4 kg) |
|
VPM18-13800PWR XFMR TOROIDAL 250VA CHAS MT |
3,673 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 9V, Series 18V | Parallel 27.6A, Series 13.8A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms | 5.6 lbs (2.5 kg) |
|
|
VPM24-10420PWR XFMR TOROIDAL 250VA CHAS MT |
3,859 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 12V, Series 24V | Parallel 20.84A, Series 10.42A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms | 5.6 lbs (2.5 kg) |
|
|
VPM36-6940PWR XFMR TOROIDAL 250VA CHAS MT |
3,275 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 18V, Series 36V | Parallel 13.88A, Series 6.94A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms | 5.6 lbs (2.5 kg) |
|
|
VPM48-5200PWR XFMR TOROIDAL 250VA CHAS MT |
3,797 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 10.4A, Series 5.2A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms | 5.6 lbs (2.5 kg) |
|

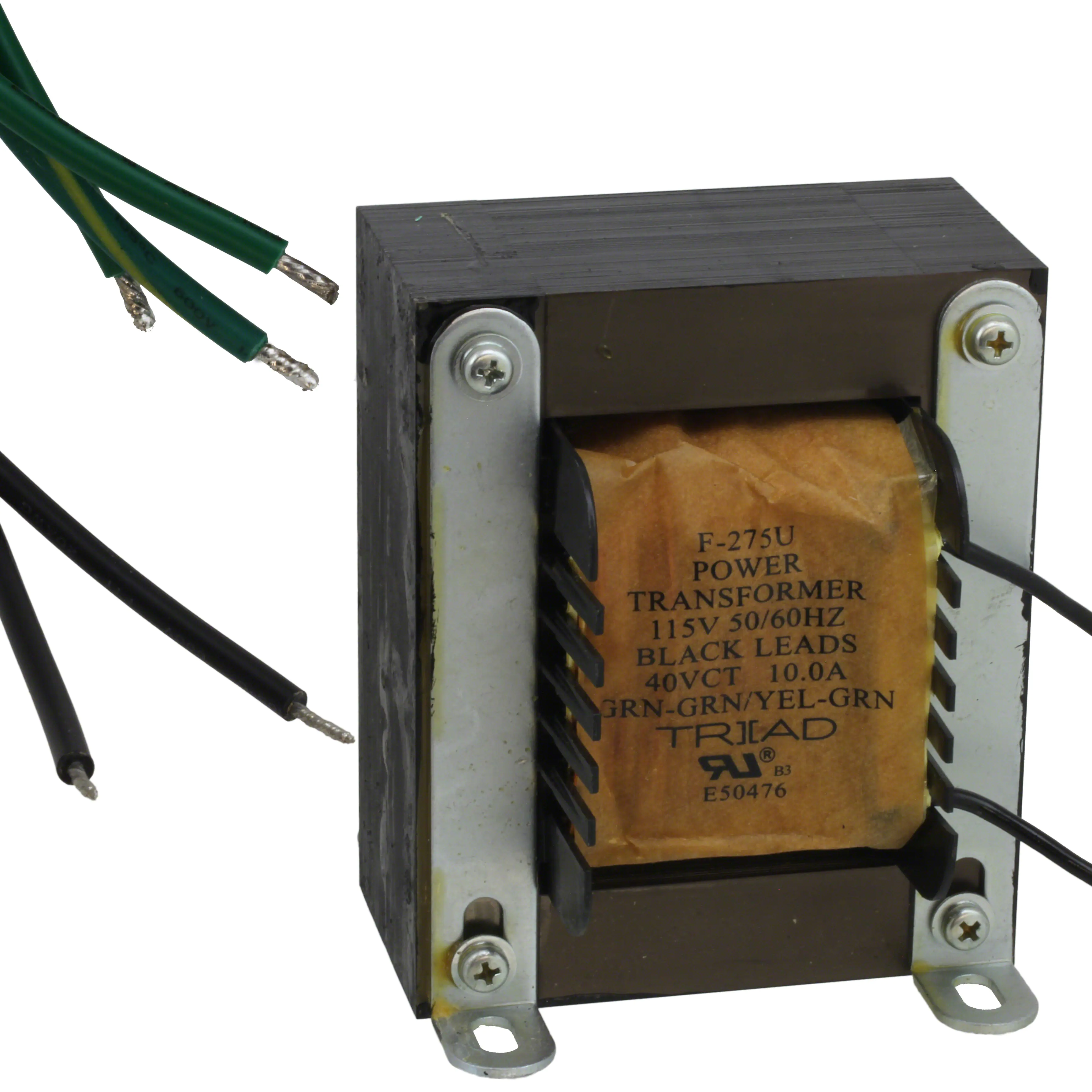

F-275UPWR XFMR LAMINATED 400VA CHAS MT |
3,294 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 40V | 10A | Single | Single | Yes | 400VA | Chassis Mount | Wire Leads | 111.13mm L x 114.30mm W | 136.53mm | 1500Vrms | 15 lbs (6.8 kg) |
|
|
F-282UPWR XFMR LAMINATED 360VA CHAS MT |
2,580 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 60V | 6A | Single | Single | Yes | 360VA | Chassis Mount | Wire Leads | 111.13mm L x 104.78mm W | 133.35mm | 1500Vrms | 13 lbs (5.9 kg) |
|
|
VPM100-5000PWR XFMR TOROIDAL 500VA CHAS MT |
2,767 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 50V, Series 100V | Parallel 10A, Series 5A | Dual, Multiple Taps | Dual | No | 500VA | Chassis Mount | Wire Leads | 147.00mm Dia | 64.00mm | 4000Vrms | 11 lbs (5 kg) |
|

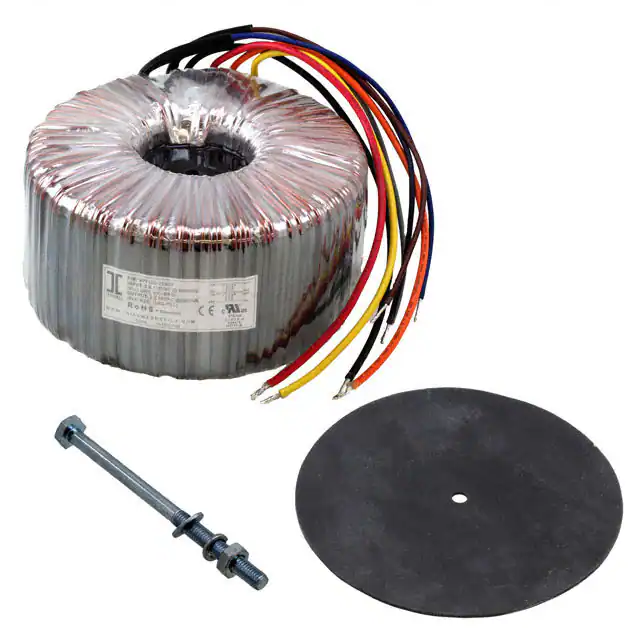

VPT230-10870PWR XFMR TOROIDAL 2500VA CHAS MT |
2,376 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 21.74A, Series 10.87A | Dual | Dual | No | 2500VA | Chassis Mount | Wire Leads | 208.00mm Dia x 112.00mm W | 120.0mm | 4000Vrms | 43 lbs (19.5 kg) |
|
HSM-203PWR XFMR 115/600V/5 |
1,219 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
