Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCT50-03E07KPWR XFMR LAMINATED 50VA CHAS MT |
111 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V | 12V | 4.17A | Single | Single | No | 50VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|
FD7-24PWR XFMR LAMINATED 56VA CHAS MT |
126 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 24V | 2.4A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|
VPT30-830PWR XFMR TOROIDAL 25VA CHAS MT |
132 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.66A, Series 830mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|
F8-24PWR XFMR LAMINATED 100VA CHAS MT |
161 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|
VPT30-1670PWR XFMR TOROIDAL 50VA CHAS MT |
308 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 3.34A, Series 1.67A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|
VPT230-430PWR XFMR TOROIDAL 100VA CHAS MT |
565 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 860mA, Series 430mA | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms | 2.2 lbs (997.9 g) |
|
VPT36-2780PWR XFMR TOROIDAL 100VA CHAS MT |
127 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 5.56A, Series 2.78A | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms | 2.2 lbs (997.9 g) |
|

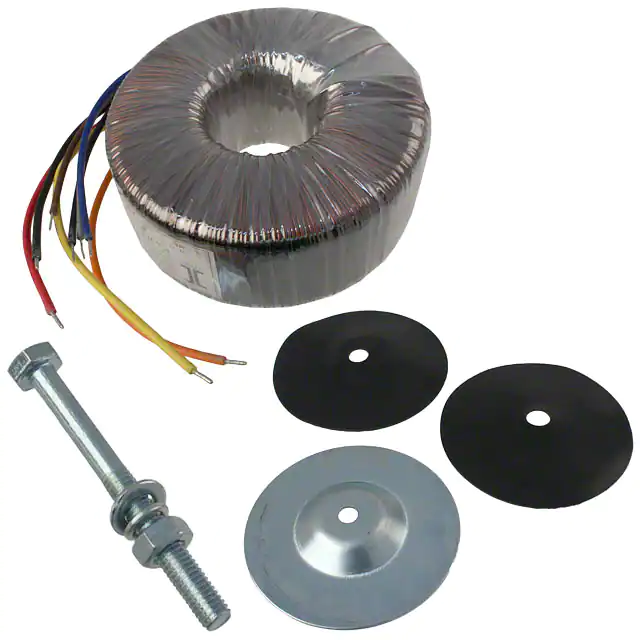

VPT48-3300PWR XFMR TOROIDAL 160VA CHAS MT |
1,331 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 6.66A, Series 3.33A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms | 3.6 lbs (1.6 kg) |
|
VPS28-6250PWR XFMR LAMINATED 175VA CHAS MT |
103 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 12.5A, Series 6.25A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
F-401UPWR XFMR LAMINATED 240VA CHAS MT |
4,464 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 24V | 10A | Single | Single | Yes | 240VA | Chassis Mount | Wire Leads | 87.30mm L x 95.25mm W | 104.77mm | 1500Vrms | 8 lbs (3.6 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
